Help CenterATEX Certified Mineral Insulated Heat Trace Cable For Industrial Heat Tracing
Product Spotlights
Related Products
-
High Temperature MI Heat Trace Cable For Industrial Heat TracingUS$ 8.8 - 13MOQ: 1 Meter -
Corrosion Resistant MI Heat Trace Cable For Petrochemical Industrial PipeUS$ 8.8 - 13MOQ: 1 Meter
-
MI Heat Trace Cable With Moisture ProofUS$ 8.8 - 13MOQ: 1 Meter
-
Mineral Insulated Heating Cable For Oil Gas Pipeline HeatingUS$ 8.8 - 13MOQ: 1 Meter
-
EAC Approved MI Heat Trace Cable For Tank HeatingUS$ 8.8 - 13MOQ: 1 Meter

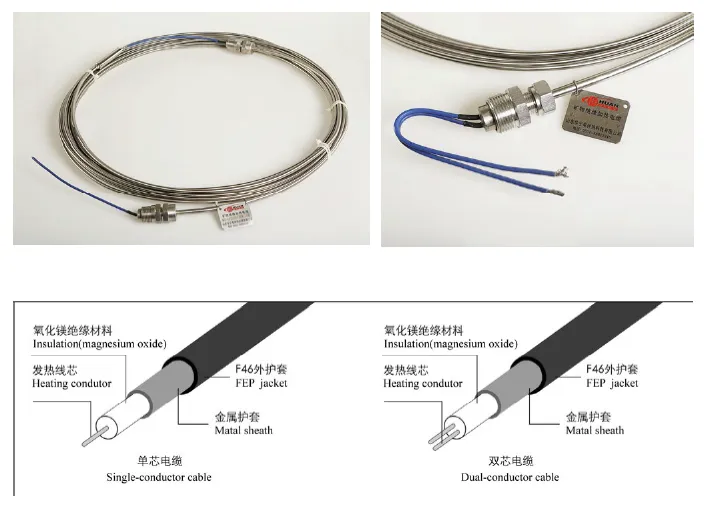

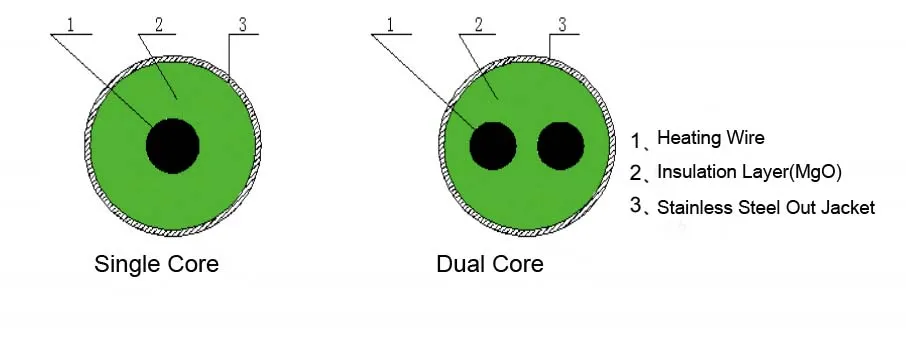

Due to the above structure, the product has the following characteristics:
As the heating cable is composed of non-combustible inorganic substances, the product is fireproof and flame-retardant, does not release toxic gases, and has zero combustion.
The operating temperature limit of the heating cable is the highest temperature that its core and metal outer sheath layer are subjected.
The insulating layer is made of magnesium oxide, and the core and sheath are made of metal, which fundamentally solves the problem of aging and prolongs the service life of the cable to the greatest extent.
The product adopts different outer casings, which can resist the erosion of oils, solvents and most acids, and it has good chemical stability.
The metal sheath has excellent explosion-proof performance and electromagnetic shielding performance, which can also serve as a ground loop.
Good mechanical properties, due to its sturdy structure, it can withstand twisting, squeezing, bending, pulling, friction and general heavy handling.
Adopting the series resistance type electric heating element, heating is uniform, small temperature difference across the entire length, large heating cable, generally between 20 ~ 200W / m.
It is forbidden to cross and overlap during installation of mineral insulated heating cables, and it is forbidden to bend the MI cold end connector, and the cold end and the junction box should be placed outside the insulation layer.

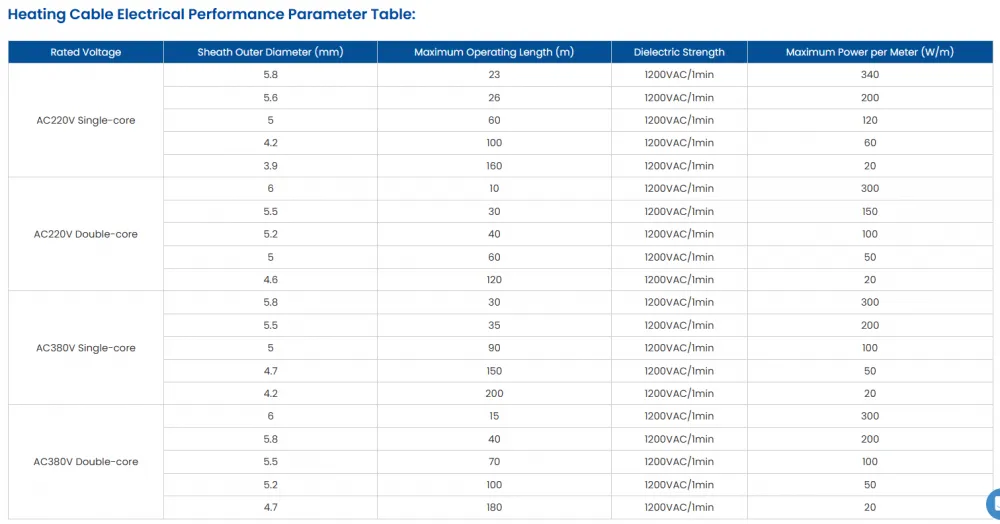

Specification
According to the outer sheath material, MI heating cables are divided into:
Stainless steel sheathed MI heating cable - (MISS)
Stainless steel and anti-corrosion outer sheath (FEP) MI heating cable - (MISS-FEP)
825 alloy sheathed MI cable - (MIAL)
| Type | Sheath Material | Maintenance temp.℃ | Max Exposure temp.℃ | Application |
| MISS | Stainless Steel | 400 | 600 | High temperature pipe and corrosive-resistant |
| MISS-FEP | Stainless Steel+FEP | 120 | 150 | Corrosive-resistant underground application |
| MIAL | Alloy 825I | 600 | 800 | High temperature pipe and corrosive-resistant |
Certifications
Packaging & Shipping
Company Profile
Shandong Huaning Electric Heating Technology Co., Ltd.
It is located in the famous Spring City — Jinan. It is a comprehensive high-tech manufacturing enterprise integrating research and development, design, sales, system integration, and operation & maintenance services for electric heating, heating, and integrated control. The company has obtained qualifications in building electromechanical installation and waterproof, anti-corrosion, and thermal insulation engineering. As a leader in the domestic Electric Heating field, our company has long been committed to providing complete electric heating solutions for industrial, commercial, and civil markets.
Our Customers

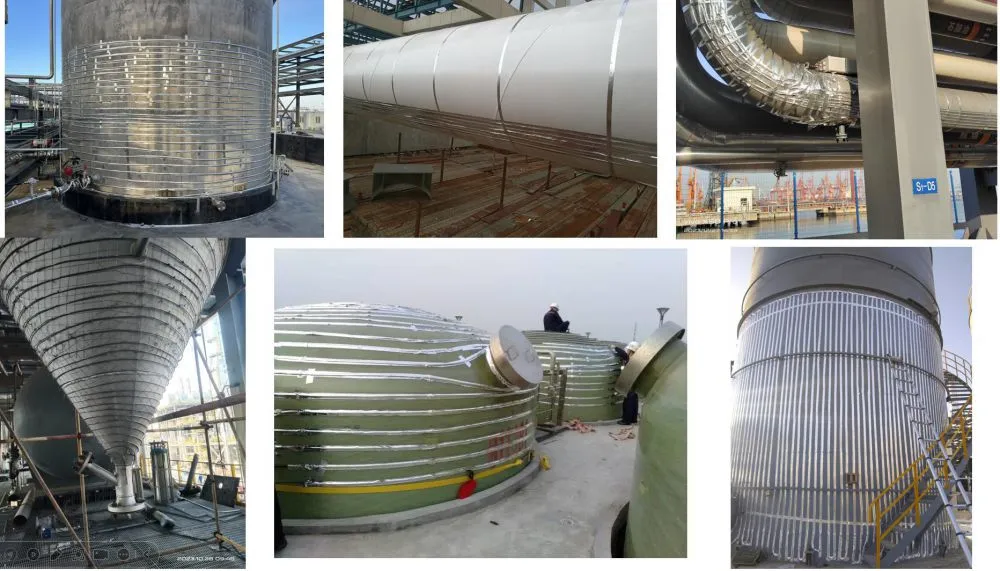

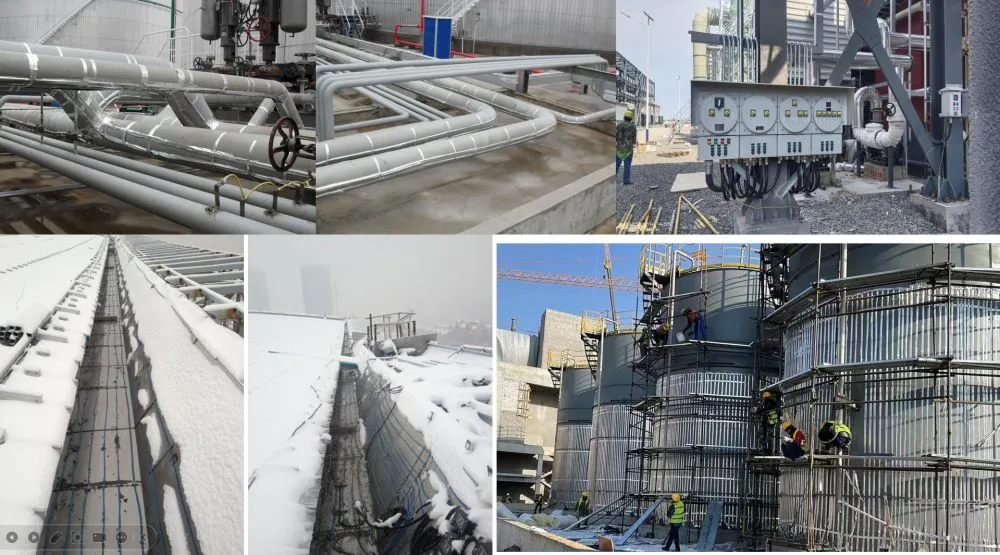

Application
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 10–15 days; customized units require 30–45 days.
Q: Do you have international certification?
A: Yes, we have EAC,IECEX,ATEX,CE,ISO,etc.
Q: Do you have past performance list overseas?
A:Yes,we have participated many oversea projects now.
Q: How do you assure the product quality?
A: we have international sandard laboratory and each batch cargo will be inspected.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
