Product Description
Serial No. |
Specification |
Number of Cores |
Number of Cores |
Outer Diameter of Sheath |
Maximum Operating Temperature |
20℃Core Wire DC Resistance |
Reference Weight (Kg/km) |
1 |
1HNCul.7 |
1 |
500 |
5 |
400 |
0.017 |
82 |
2 |
1HN4Cu26 |
1 |
500 |
4.7 |
400 |
0.426 |
75 |
3 |
1HN5Cu6.1 |
1 |
500 |
4.5 |
400 |
0.561 |
72 |
4 |
1HNCU75.0 |
1 |
5D0 |
42 |
400 |
0.750 |
72 |
5 |
1HNCu88.6 |
1 |
500 |
4 |
400 |
0.886 |
57 |
6 |
1HNCu187.5 |
1 |
500 |
3.7 |
400 |
1875 |
47 |
7 |
1HNCu391.2 |
1 |
500 |
3.5 |
400 |
3.912 |
38 |
8 |
2HNCu5.3 |
2 |
500 |
6 |
400 |
0.053 |
160 |
9 |
2HNCu21.1 |
2 |
500 |
5.8 |
400 |
0.211 |
155 |
10 |
2HNGCu7.9 |
2 |
500 |
52 |
400 |
0.679 |
133 |
11 |
2HNCU87.8 |
2 |
500 |
5 |
400 |
0.878 |
94 |
12 |
2HNCu131.9 |
2 |
500 |
4.7 |
400 |
1.319 |
77 |
13 |
2HNCu193.8 |
2 |
500 |
4.5 |
400 |
1.938 |
69 |
14 |
2HNCu479 |
2 |
500 |
42 |
400 |
4.790 |
57 |
15 |
2HNCu1100 |
2 |
500 |
4 |
400 |
11.00 |
47 |

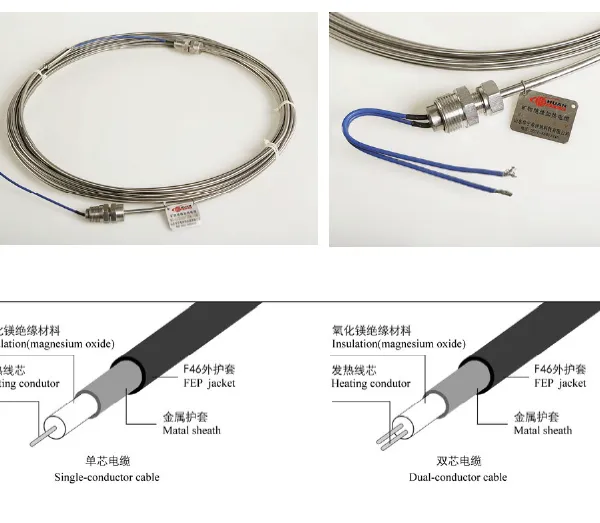

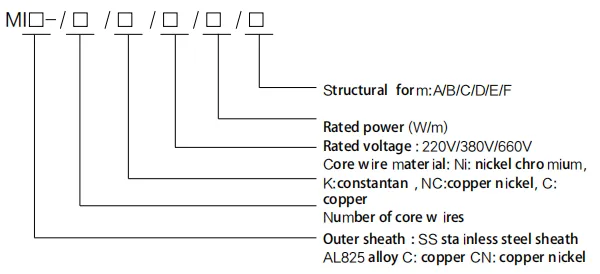

Model and Structure of MI

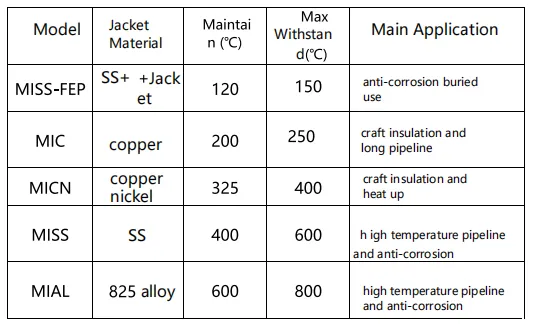

According to different outer sheath materials, mineral insulated heating cables are divided into:
Stainless steel sheathed mineral insulated heating cable - (MISS);
Stainless steel + anti-corrosion outer sheath (FEP) mineral insulated heating cable - (MISS-FEP);
825 alloy sheathed mineral insulated heating cable - (MIAL);
Copper or copper-nickel sheathed mineral insulated heating cable (MIC)
Project Cases
Customized Solution,Detailed implementation plan,Design & Engineering,Software,Construction/Installation (EHT),Debugging,Documentation,Seminar/Training
Packing & Delivery
Standard Export Pack:
1. Solar Plywooden Drum
2. Plastic package
3. Polywooden drum
4. Soft package
5. Steel drum
6. Wooden drum
Company Profile&Certifications
Shandong Huaning Electric Heating Technology Co., Ltd.
Located in Jinan, Spring City, our high-tech enterprise excels in R&D, design, sales, and services for electric heating and integrated control. Certified in electromechanical installation, waterproofing, corrosion, and insulation, we lead the domestic market with comprehensive solutions for industrial, commercial, and civil sectors.
Until now, we have got EAC, IECEX, CE, ATEX, CSA certification for our products. These certificaitons can make you use our products with confidence.
