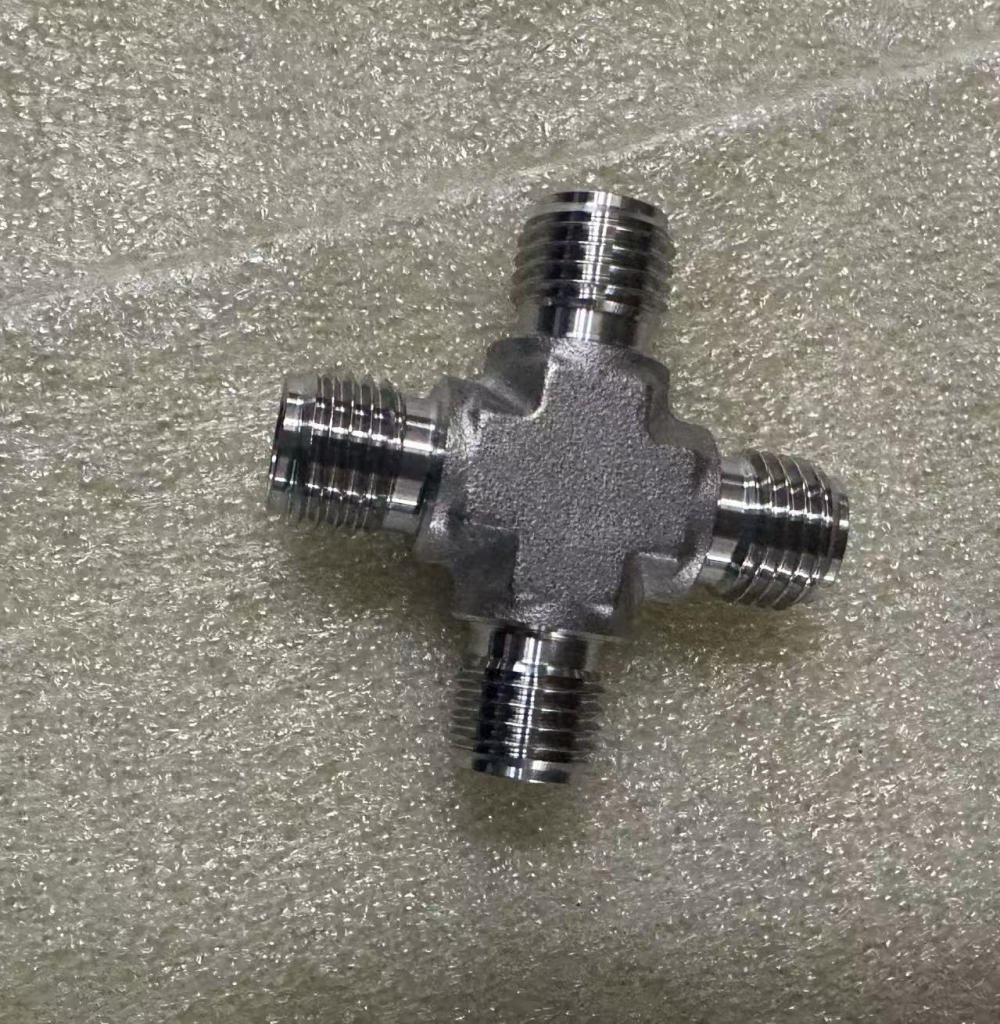

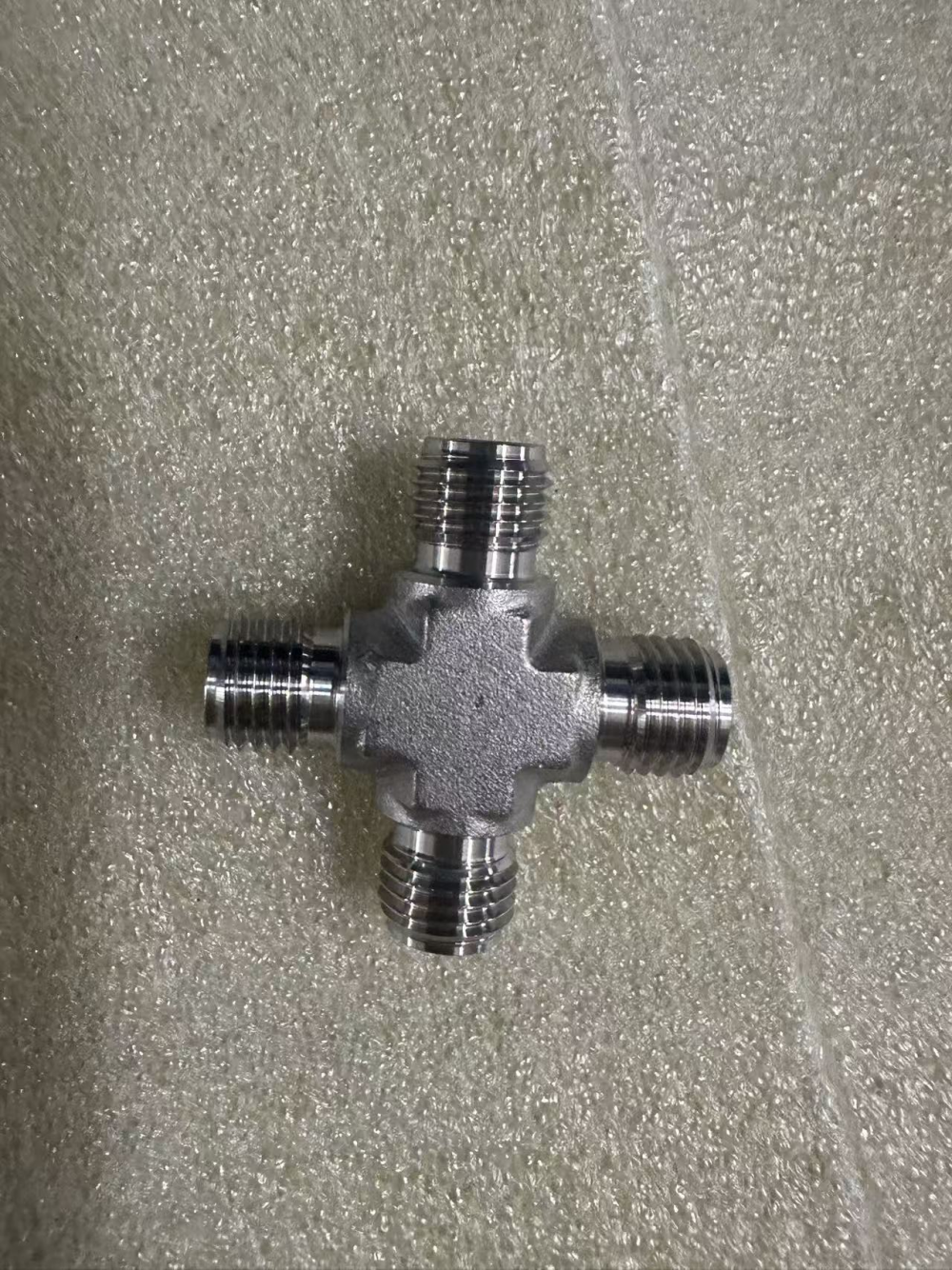

Help CenterMale VCR Cross Fitting With Electropolished Finish for Ultra-Clean Systems
Product Spotlights
Related Products
-
Precision Machined VCR Male Extension With Leak-Free Performance GuaranteeNegotiableMOQ: 500 Pieces -
VCR Male Extension 15mm OD With SAE J1926-1 Standard for Automotive Fuel LinesNegotiableMOQ: 500 Pieces
-
HVCR High Flow VCR Male Extension 1/4" Larger Bore 6-8mm for High Flow ApplicationNegotiableMOQ: 500 Pieces
-
304 Stainless Steel VCR Male Extension for High-Pressure Hydraulic SystemsNegotiableMOQ: 500 Pieces
-
VCR Male Nipple 10mm ID With Double Ferrule Design for Gas Distribution SystemsNegotiableMOQ: 500 Pieces
Shanghai Quanbao Electronic Materials Technology Co., Ltd., based in Shanghai, China, specializes in precision components for high-tech industries. Our Male VCR Cross Fitting with Electropolished Finish is meticulously crafted for ultra-clean systems, delivering unparalleled cleanliness and reliability to minimize contamination risks in critical applications. This product ensures leak-tight connections, enhancing system integrity and operational efficiency. With our focus on quality manufacturing, we provide fittings that support demanding environments like semiconductor fabrication and biopharmaceutical processing. Trust our expertise to elevate your ultra-clean solutions with robust, high-performance components.
Key Features and Benefits:
- Electropolished Surface: Achieves a smooth finish with surface roughness below 0.4 μm Ra, significantly reducing particle generation and improving cleanability for contamination-sensitive systems.
- Male VCR Cross Design: Features a cross-shaped configuration that enables multi-directional connections, simplifying installation in complex piping layouts and saving time during assembly.
- High-Purity Material: Constructed from 316L stainless steel, offering excellent corrosion resistance and durability in aggressive chemical environments, ensuring long-term reliability.
- Optimized for Ultra-Clean Systems: Specifically engineered for applications requiring minimal particulate contamination, such as cleanrooms and vacuum systems, where even minor impurities can disrupt processes.
Technical Specifications: Below is a summary of key parameters; additional details are customizable based on client requirements.
| Parameter | Value |
|---|---|
| Material | 316L Stainless Steel |
| Standard Size | 1/4 inch |
| Surface Finish | Electropolished, Ra ≤ 0.4 μm |
| Pressure Rating | 2000 psi |
| Temperature Range | -20°C to 150°C |
| Connection Type | Male VCR with Gland Seal |
Customers benefit from reduced maintenance costs and enhanced system uptime, as our fittings prevent leaks and contamination-related failures. For instance, in semiconductor manufacturing, this translates to higher yield rates and compliance with stringent purity standards. The ease of integration and customizable options allow for seamless adaptation to existing setups, providing flexibility without compromising performance.
Shanghai Quanbao leverages advanced production techniques from our Shanghai facility to ensure consistent quality and adherence to industry norms. With a proven track record in electronic materials technology, we offer reliable support and tailored solutions. Contact us today to explore how this fitting can optimize your ultra-clean systems—inquire about bulk orders or custom specifications for a competitive edge.
Frequently Asked Questions:
-
Q: What is the primary use of a VCR fitting?
A: VCR fittings provide a metal-to-metal seal for vacuum or high-purity systems, ensuring leak-tight connections in applications like gas delivery or fluid handling. -
Q: How does electropolishing enhance cleanliness?
A: Electropolishing removes surface imperfections, creating a smooth, passive layer that resists particle adhesion and reduces contamination risks in sensitive environments. -
Q: Can I get this fitting in different sizes?
A: Yes, sizes such as 3/8 inch or 1/2 inch are customizable upon request to match specific system requirements. -
Q: What industries commonly use this product?
A: It's ideal for semiconductor, pharmaceutical, and biotechnology industries where ultra-clean conditions are critical for process integrity. -
Q: How durable is the stainless steel material?
A: 316L stainless steel offers high corrosion resistance, making it suitable for harsh chemicals and ensuring longevity with minimal degradation. -
Q: What is the installation process for a cross fitting?
A: Installation involves aligning the fitting and tightening the gland nut to form a secure seal; it's designed for straightforward assembly with standard tools. -
Q: Are there any special maintenance requirements?
A: Regular inspections for leaks are recommended, but the electropolished finish reduces fouling, requiring minimal upkeep under normal conditions. -
Q: How long does shipping take for standard orders?
A: Lead times vary but typically range from 2-4 weeks; expedited options may be available for urgent needs.
