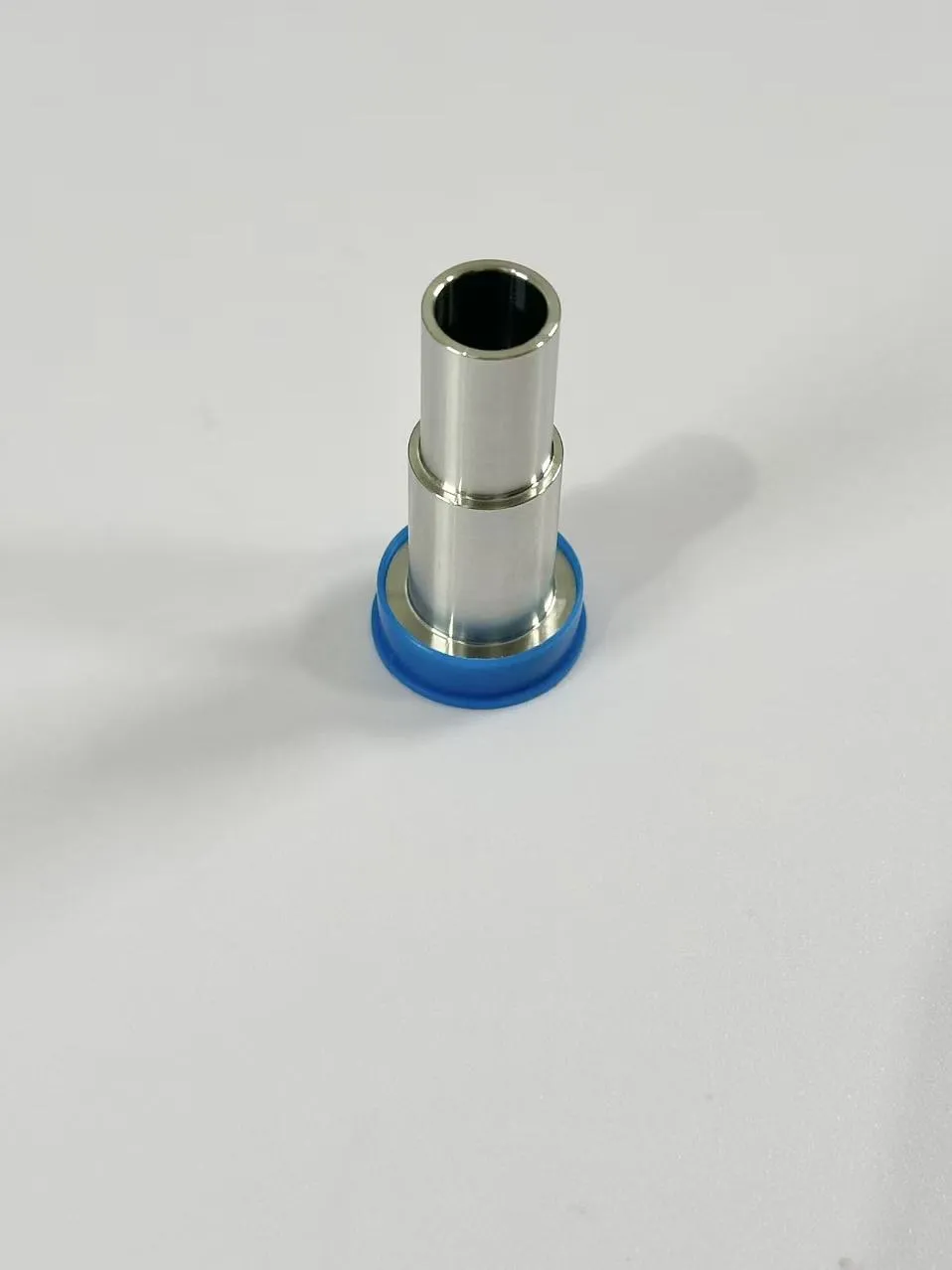

Shanghai Quanbao Electronic Materials Technology Co., Ltd., located in Shanghai, China, specializes in manufacturing high-precision components for critical industrial applications. Our 316L Stainless Steel VCR Male Extension is electropolished to a surface roughness of Ra≤0.13µm, ensuring exceptional purity and reliability for Ultra High Purity (UHP) gas and High Vacuum (HV) systems. Designed to minimize contamination and enhance performance, this product is ideal for demanding environments where precision and durability are paramount. As a trusted supplier, we focus on delivering solutions that meet rigorous industry standards, helping clients achieve operational efficiency and safety.
Key features of this VCR male extension include:
- Superior Surface Quality: The electropolished finish reduces particle generation and adsorption, critical for maintaining purity in sensitive systems like semiconductor manufacturing or pharmaceutical processing.
- Robust Construction: Made from 316L stainless steel, it offers excellent corrosion resistance and longevity, even in harsh chemical or high-pressure environments.
- Precision Engineering: Ensures leak-tight seals and easy integration with existing VCR fittings, reducing installation time and maintenance costs.
- Versatile Applications: Suitable for UHP gas delivery, HV chambers, and other critical setups where contamination control is essential.
Technical specifications are detailed in the table below, highlighting core parameters that define product performance. These specs are based on standard configurations, but customization is available to meet specific requirements.
| Specification | Value |
|---|---|
| Material | 316L Stainless Steel |
| Surface Roughness (Ra) | ≤ 0.13 µm |
| Connection Type | VCR Male |
| Pressure Rating | Up to 1500 psi (standard) |
| Temperature Range | -20°C to 150°C |
| Size Options | 1/4" to 1" (customizable) |
Benefits for customers include reduced downtime due to reliable sealing, lower risk of system contamination leading to higher product yields, and cost savings from extended component lifespan. For instance, in cleanroom applications, the electropolished surface helps maintain ISO Class levels by minimizing outgassing and particulate shedding. This makes it a smart investment for industries like biotechnology, where equipment integrity directly impacts research outcomes.
Shanghai Quanbao leverages its expertise from Shanghai, a hub for advanced manufacturing, to produce components that adhere to stringent quality controls without compromising on affordability. Our products are trusted by global clients for their consistency and performance, backed by responsive customer support. Contact us today to discuss how this VCR extension can optimize your UHP or HV systems, and request a sample or quote for tailored solutions that fit your exact needs.
Frequently Asked Questions (FAQ)
-
Q: What industries commonly use this VCR male extension?
A: It's ideal for semiconductor fabrication, pharmaceutical production, laboratory research, and any sector requiring ultra-clean gas handling or high vacuum integrity. -
Q: Can the size be customized for specific applications?
A: Yes, sizes from 1/4" to 1" are standard, but we offer customization upon request to match unique tubing or system requirements. -
Q: How does the electropolished surface benefit UHP gas systems?
A: It reduces surface roughness to Ra≤0.13µm, minimizing adsorption and desorption of gases, which helps maintain purity and prevents contamination in sensitive processes. -
Q: What is the pressure rating, and can it handle high-vacuum environments?
A: Standard pressure ratings go up to 1500 psi, and it's designed for high-vacuum systems, ensuring leak-free performance under low-pressure conditions. -
Q: Are there any special cleaning or handling instructions?
A: Before use, clean with isopropyl alcohol (IPA) or compatible solvents; handle with gloves to avoid oils, and store in a clean, dry environment to preserve surface quality. -
Q: What is the typical lead time for orders?
A: Lead times vary based on quantity and customization, but standard orders ship within 3-4 weeks; expedited options may be available. -
Q: Does Shanghai Quanbao provide certifications for this product?
A: We ensure compliance with industry standards; specific documentation like material test reports can be provided upon request. -
Q: How durable is the 316L stainless steel in corrosive environments?
A: 316L offers high corrosion resistance, making it suitable for aggressive chemicals; however, compatibility should be verified for specific fluids.
