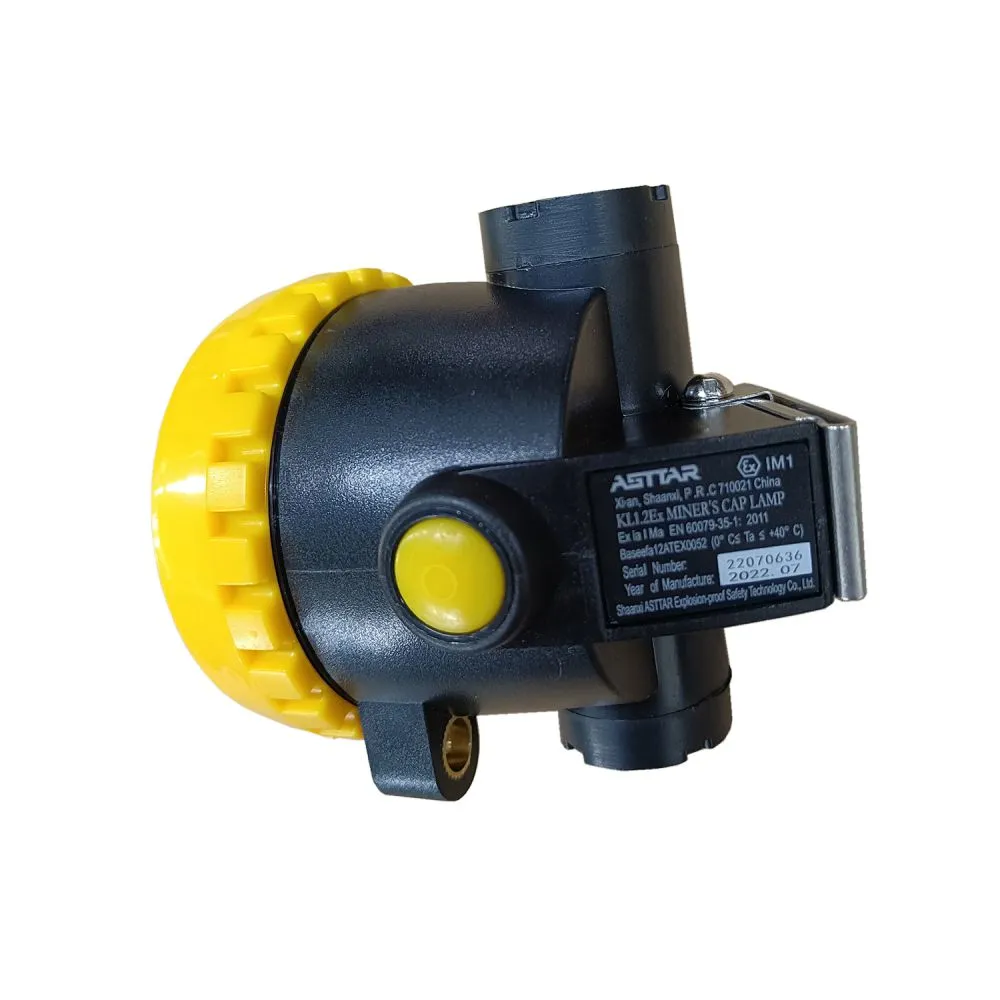

Miner's cap lamp KL1.2Ex
ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard:
EN 60079-0: 2012
EN 60079-11: 2012
EN 60079-35-1: 2011
EN 50303:2000

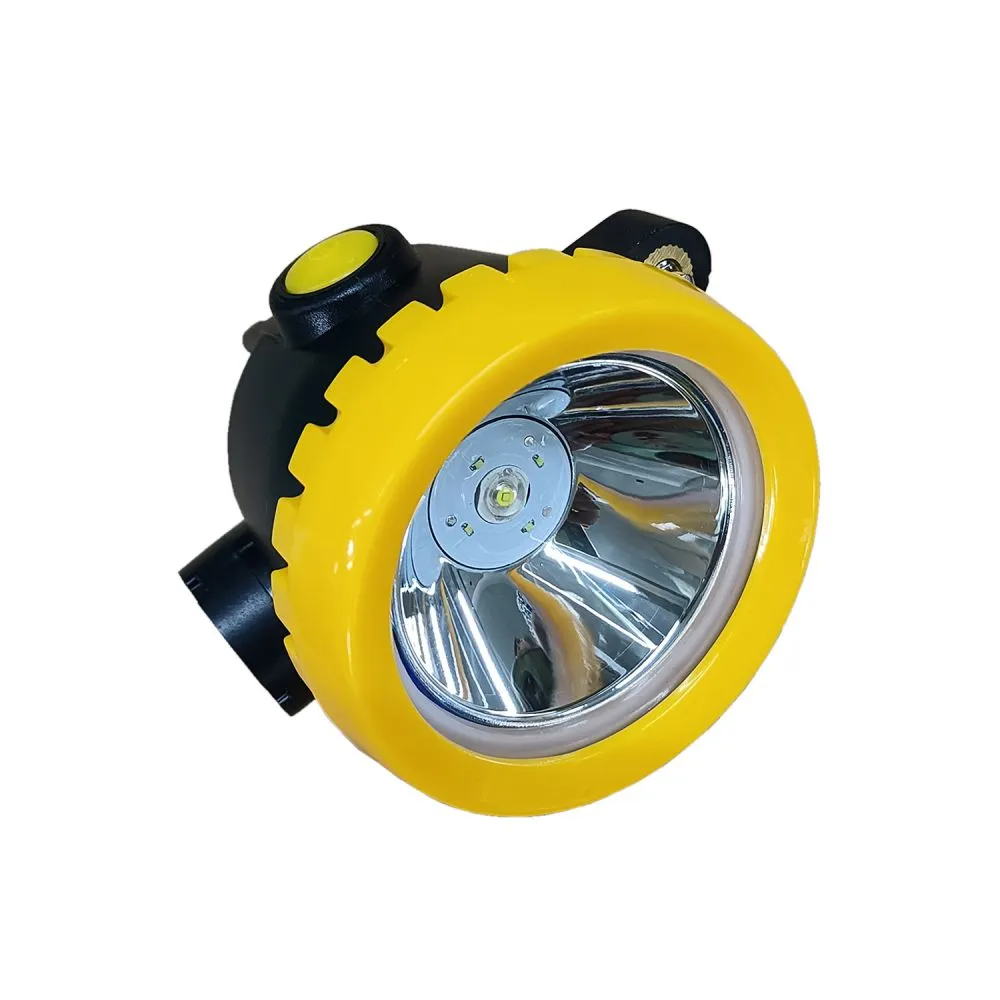

Mining cap lamp KL1.2Ex is specially designed for use in underground mining operations.
• Adopts 1400mAh capacity lithium-ion batteries and latest LED light source, with all-in-one design, very small and light.
• The light source with 1 main light for working and 4 auxiliary lights for emergency lighting, main light max illumination reaches to 3500Lux, working time more than 11hours.
• Built-in micro-controller and multiple safety protective circuit, intelligent management of charging & discharging process ensure the safety and reliability.
• LED constant current driving mode ensures the light intensity of illumination basically remain unchanged after 11 hours' lighting.
Item |
KL1.2Ex |
|
Battery style |
Li-ion |
|
Rated capacity |
1.4Ah |
|
Rated voltage |
3.7V |
|
Lighting time |
≥11h |
|
Main light source |
Working current |
0.12A |
|
Max luminance (1m away from the lamp) |
When lighting begins |
≥3500 lx |
After lighting for 11h |
≥2500 lx |
|
Sub-light source rated power |
0.06A |
|
Life of cap lamp |
2 years |
|
Charging Voltage |
(6-8)V |
|
Charging time |
≤8h |
|
Explosion protection |
Ex ia I Ma |
|
Protection grade |
IP65 |
|
Exterior dimensions |
Φ67x82x73mm |
|
Weight |
0.2kg |
