ATEX lamp, miner helmet lamp, cordless LED miner cap lamp
ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard: EN 60079-0:2012, EN 60079-11:2012, EN 60079-35-1:2011, EN 50303:2000
It is specially designed for use in underground mining operations, tunneling.
Adopts 1400mAh capacity lithium-ion batteries and latest LED light source, with all-in-one design, very small and light.
The light source has1 main light for working and 4 auxiliary lights for emergency lighting, main light max illumination reaches to 3500Lux, working time more than 11 hours.
Built-in micro-controller and multiple safety protective circuit, intelligent management of charging & discharging process ensure the safety and reliability.
LED constant current driving mode ensures the light intensity of illumination basically remain unchanged after 11 hours' lighting.
Product Parameters
| Item | KL1.2Ex | ||
| Battery style | Li-ion | ||
| Rated capacity | 1.4Ah | ||
| Rated voltage | 3.7V | ||
| Lighting time | ≥11h | ||
| Main light source | Working current | 0.12A | |
| Max luminance (1m away from the lamp) |
When lighting begins | ≥3500 lx | |
| After lighting for 11h | ≥2000 lx | ||
| Sub-light source rated power | 0.2W | ||
| Life of cap lamp | 2 years | ||
| Charging Voltage | (6-8)V | ||
| Charging time | ≤8h | ||
| Explosion protection | Ex ia I Ma | ||
| Protection grade | IP65 | ||
| Exterior dimensions | Φ67x82x73mm | ||
| Weight | 0.2kg | ||

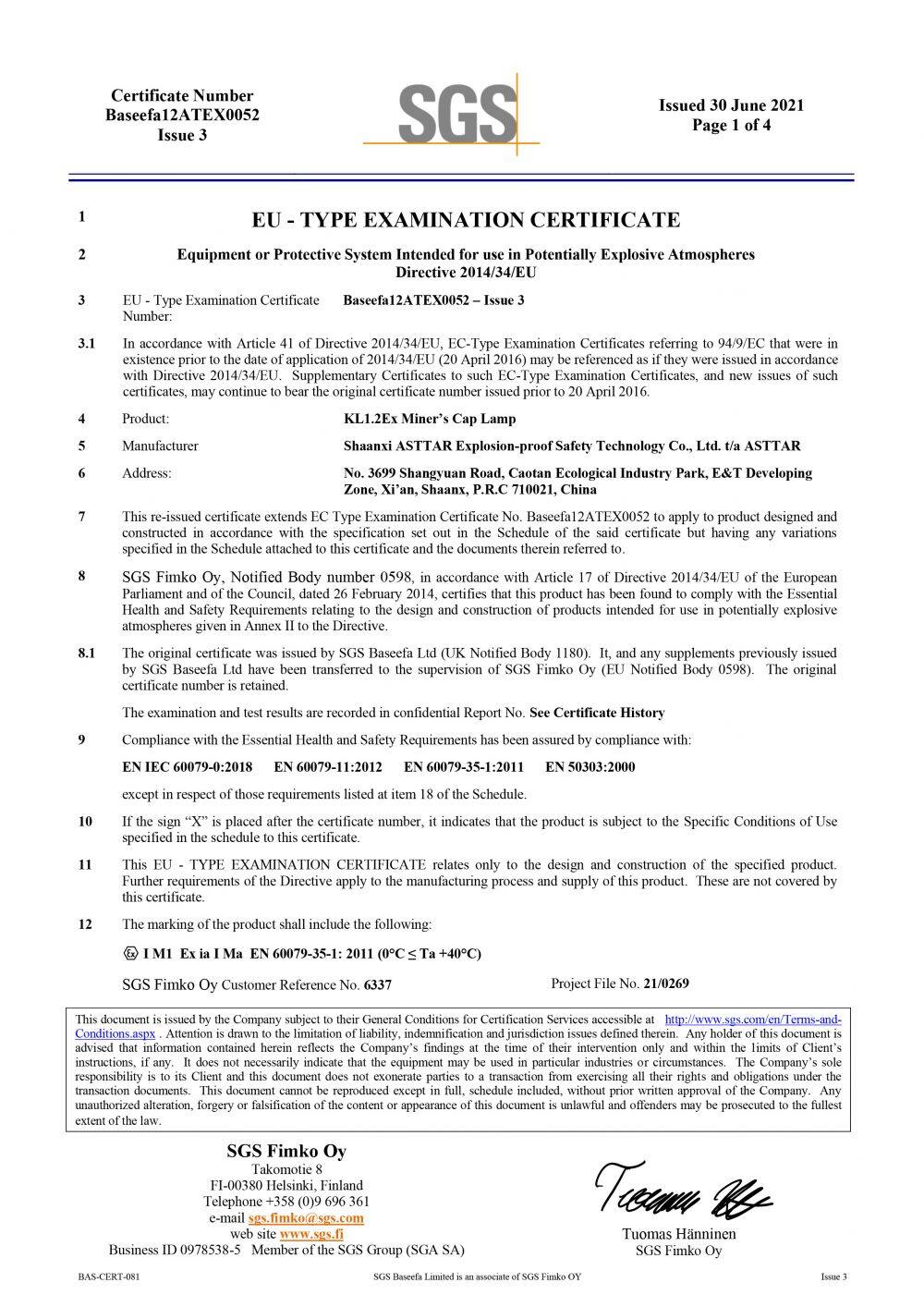

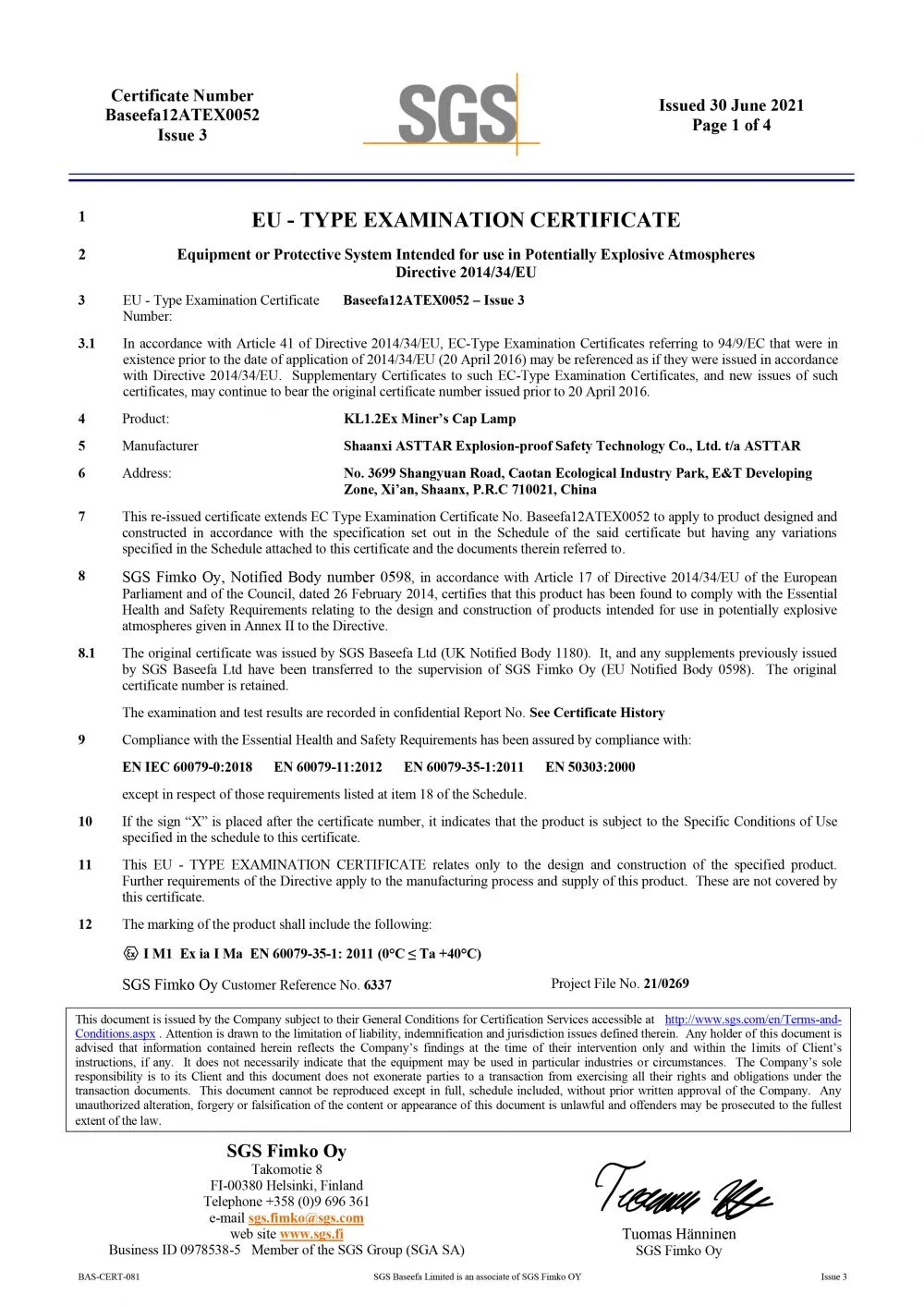

Certifications
Detailed Photos
Company Profile
With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 26 years' experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We trade as "GOKANG" brand (former brand, since1995) and "ASTTAR" brand (since 2017).
We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter
Our main products:
1. Mining self-rescuer
2. LED miner's cap lamp
3. LED Flame-proof laneway lamp
4. Mechanical and electronic anemometer
5. Isolated positive pressure oxygen breathing apparatus
6. Automatic resuscitator
7. Optical interference type methane detector
8. Portable multi-parameter gas detector
9. Infrared thermometer
10. Laser distance meter
11. Laser guider
