Socketing Wire Rope Resin
1,Introduction of casting glue for steel wire rope joints

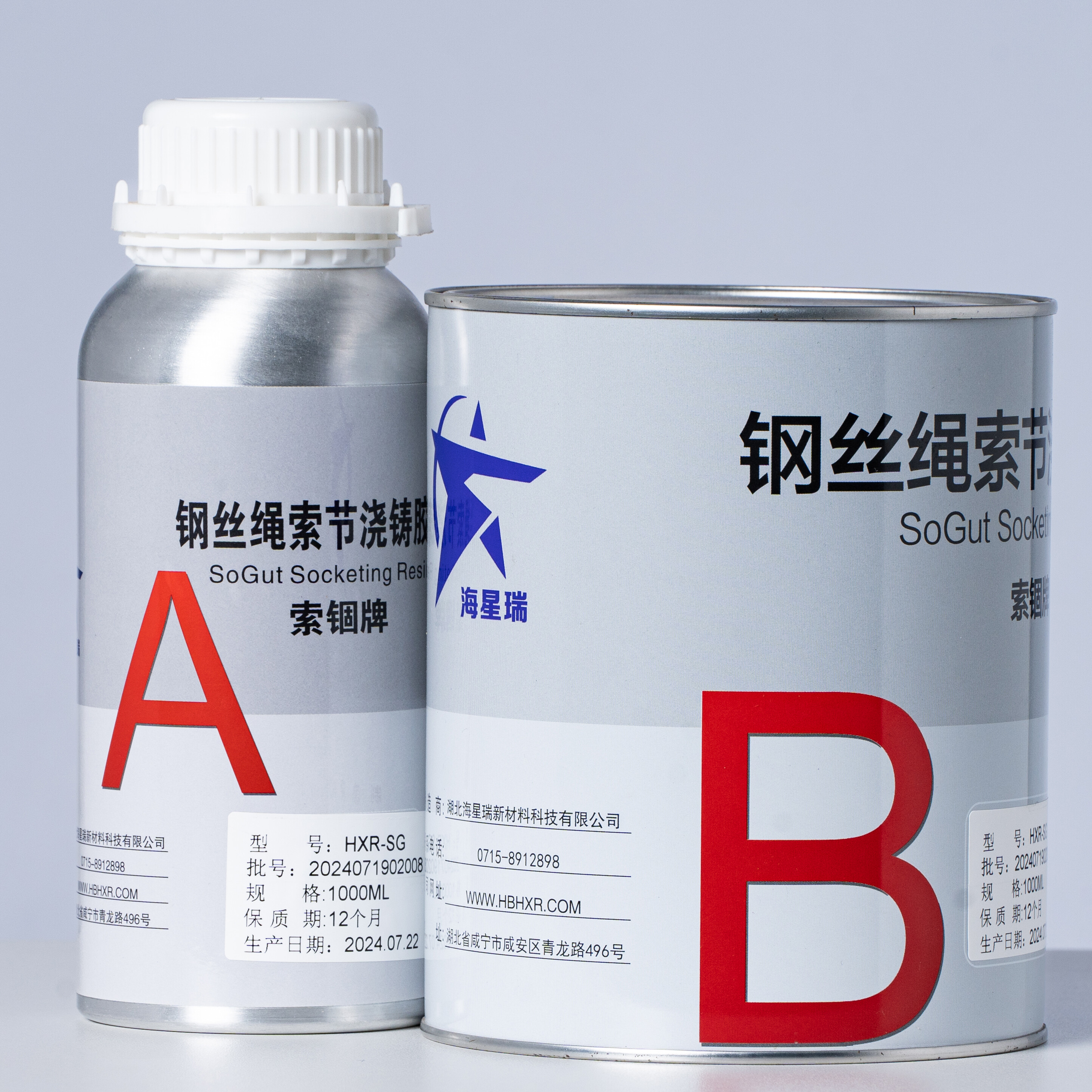

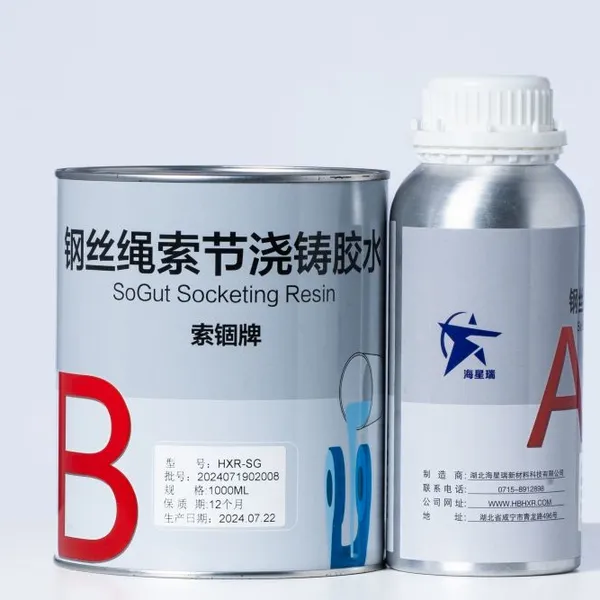

Socketing Wire Rope Resin(Here in after referred to"wire rope glue")It is a new product used for casting steel wire rope,widely used in Ship and The sea of the facility Mooring, To wing As well as venues, bridges, lifting, hoisting and other fields of wire rope rigging production.Wire rope joint casting glue can be cast and solidified at room temperature, which avoids the problem of damage to the wire rope caused by too high heating temperature in the traditional alloy casting process, and improves the safety of the wire rope joint.wire rope glue made A,B Two-component composition, A The components are liquid resins, B The components are solid powder.
2,wire rope glue Features:
1,Easy to use, no heating, can be completed at any ambient temperature on-site cable casting.
2,Room temperature casting, curing, to avoid the traditional alloy casting process heating temperature is too high and damage the wire rope.Risk, improve drigging Safety of use.
3,wire rope glue Strong bonding force with steel wire.
4,Under the alternating temperature of cold and heat, the performance is stable.
5,High heat distortion temperature.
3,The main performance of wire rope glue
3.1Main physical properties of wire rope glue
Table1Main physical performance parameters of wire rope glue
Serial Number |
Test Item |
Test Results |
1 |
Density (g/cm3) |
1.86 |
2 |
Tensile strength (MPa) |
21.6 |
3 |
Tensile modulus of elasticity (MPa) |
10702 |
4 |
bending strength(MPa) |
60 |
5 |
flexural modulus of elasticity(MPa) |
10017 |
6 |
Compression strength(MPa) |
128 |
7 |
Steel-steel shear strength(MPa) |
16.8 |
8 |
Breaking test of wire rope joints |
The wire rope is broken and the cable joint is complete. |
3.2Tensile breaking test of wire rope glue casting rigging

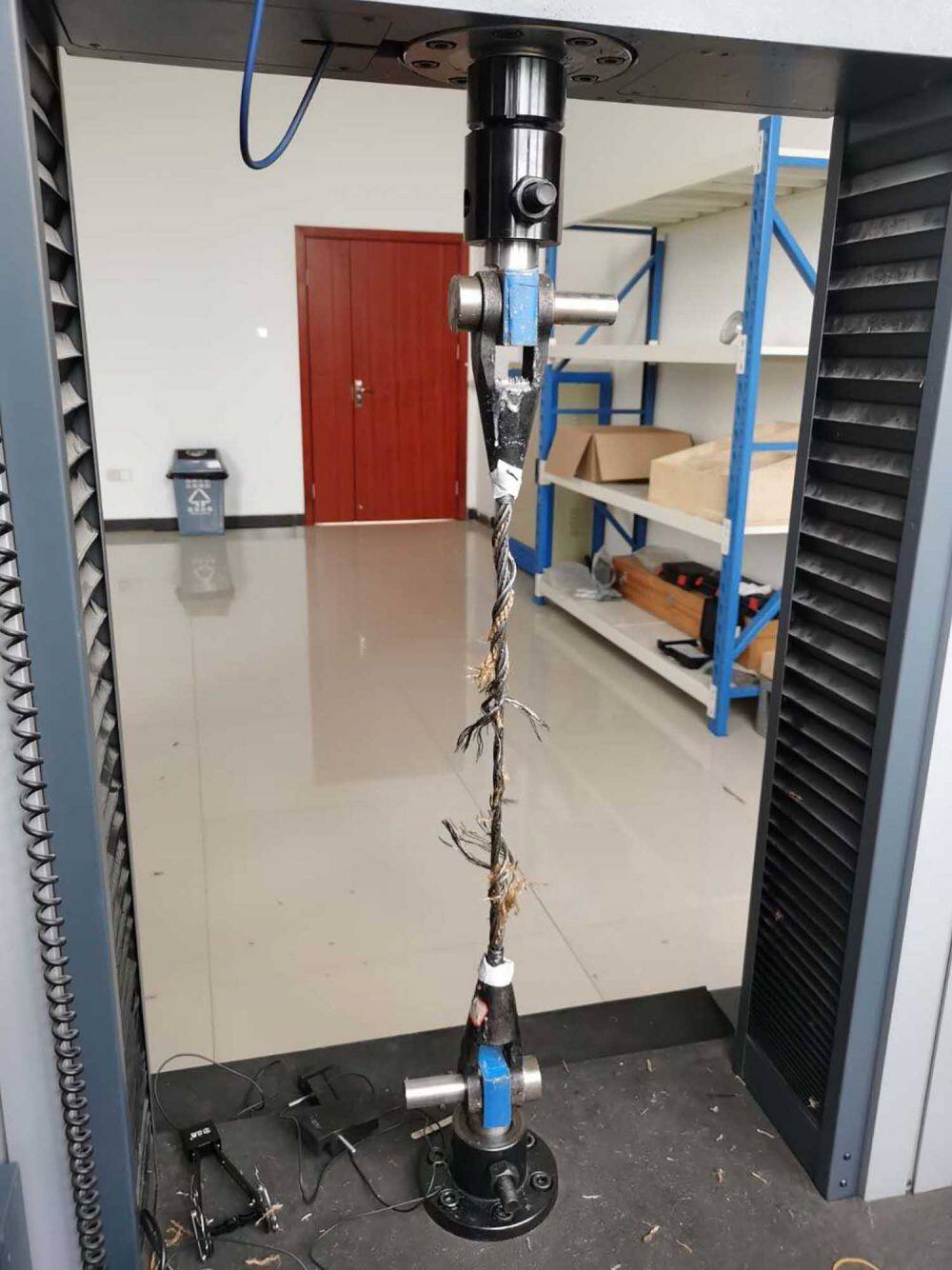

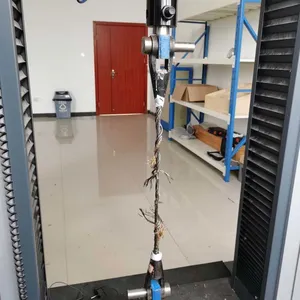

Figure3.2.1Diameter12mmTensile breaking test of steel wire rope rigging (steel wire rope is broken and cable joints are complete)

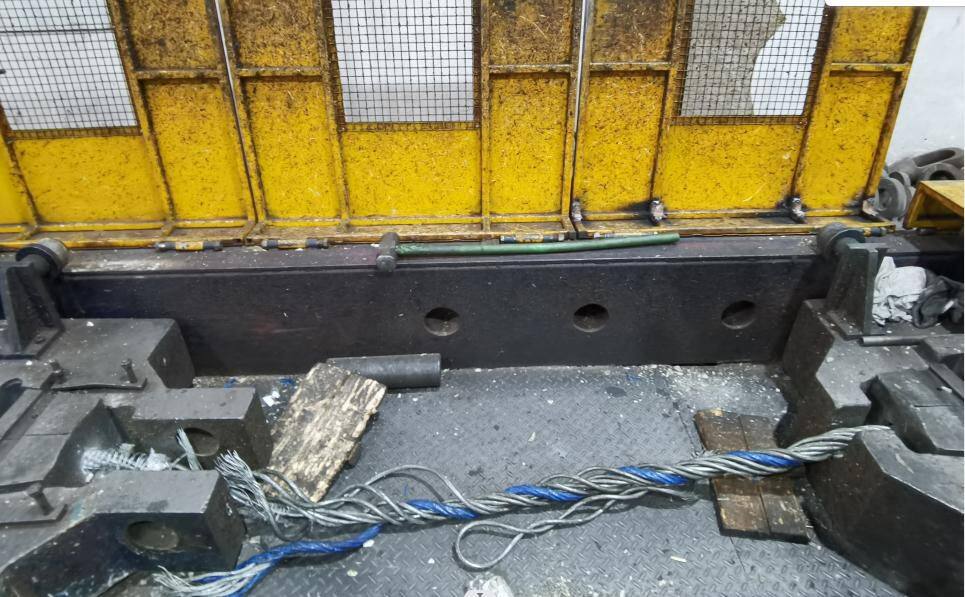

Figure3.2.2Diameter44mmTensile breaking test of steel wire rope rigging (steel wire rope is broken and cable joints are complete)
Specification
item |
value |
Place of Origin |
Xianning City, Hubei Province |
Main Raw Material |
Acrylic |
Usage |
Construction |
Classification |
Double Components Adhesives |
Other Names |
wire rope glue |
Type |
Socketing Resin |
