Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > Product Name: Z-type Bucket Elevator

Product Name: Z-type Bucket Elevator

Product Name: Z-type Bucket Elevator thumbnail-3

Product Name: Z-type Bucket Elevator thumbnail-4

Product Name: Z-type Bucket Elevator photo-1

Product Name: Z-type Bucket Elevator photo-2

Product Name: Z-type Bucket Elevator photo-3

Product Name: Z-type Bucket Elevator photo-4

Product Spotlights

Z-type Vertical Steering Conveying: Unique Z-type layout realizes vertical lifting + horizontal discharging, no need for additional steering equipment, saving space

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Warranty:

1 Year Warranty

Application:

Other

Contact Supplier Request Quote Chat Now

Shanghai QiangHan Machinery Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Material Other

Warranty 1 Year Warranty

Application Other

Structure Other

After-sales Service Free maintenance for non-human factors within warranty period

Condition New

Material Feature Other

Transport Package Export Standard Wooden Case / Pallet Packaging

Trademark QIANGHAN

Origin CHINA

Product Name: Z-type Bucket Elevator / Vertical Feeder / Continuous Bucket Conveyor

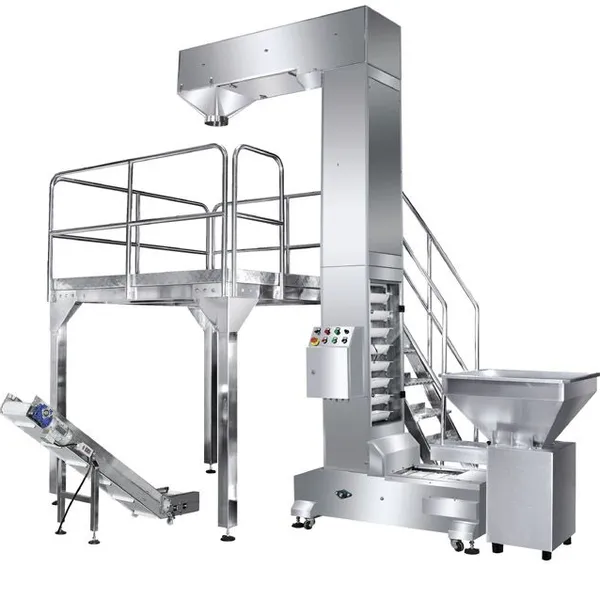

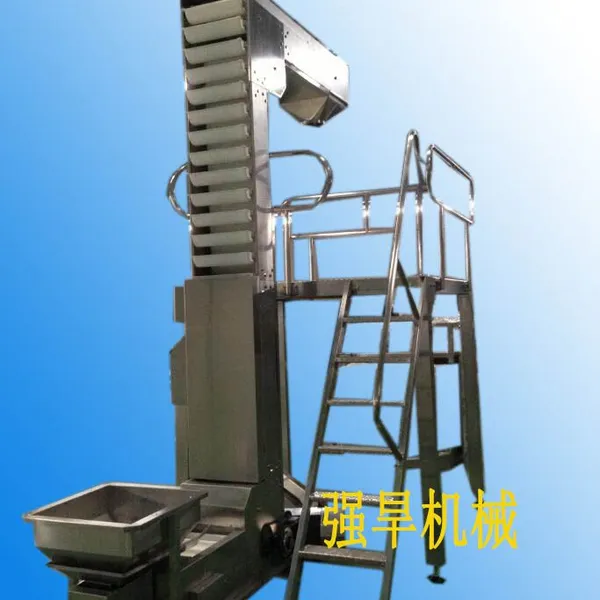

Equipment Overview: This equipment is a continuous conveying device for vertical lifting and horizontal steering, adopting Z-type layout (bottom feeding → vertical lifting → top horizontal discharging). It realizes efficient vertical lifting of powder, granular and small block materials through circulating buckets, widely used in vertical feeding scenarios of food, pharmaceutical, chemical, grain and other industries.

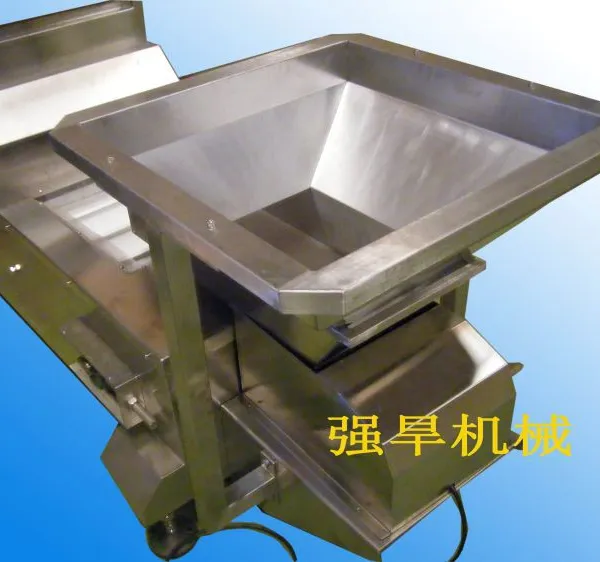

Working Principle: The motor drives the chain/belt to make the buckets circulate. Materials fall into the buckets from the bottom feeding hopper, are vertically lifted to the top with the buckets, and are horizontally conveyed to the discharge port for unloading after passing through the steering mechanism, realizing continuous and stable vertical lifting and steering conveying.

Core Parameters: Lifting height: 2-20m (customizable); Conveying capacity: 1-30m³/h; Bucket material: PP/stainless steel/carbon steel; Frame material: carbon steel with plastic spraying/stainless steel; Conveying form: Z-type/C-type; Drive mode: motor+reducer (variable frequency speed regulation)

Application Fields: Vertical lifting and steering conveying of materials in food (nuts, snacks, grains), pharmaceuticals (tablets, granules), chemical industry (granular materials, catalysts), grain (rice, wheat) and other industries.

Product Tags: Z-type Bucket Elevator , Vertical Bucket Feeder , Continuous Bucket Conveyor
