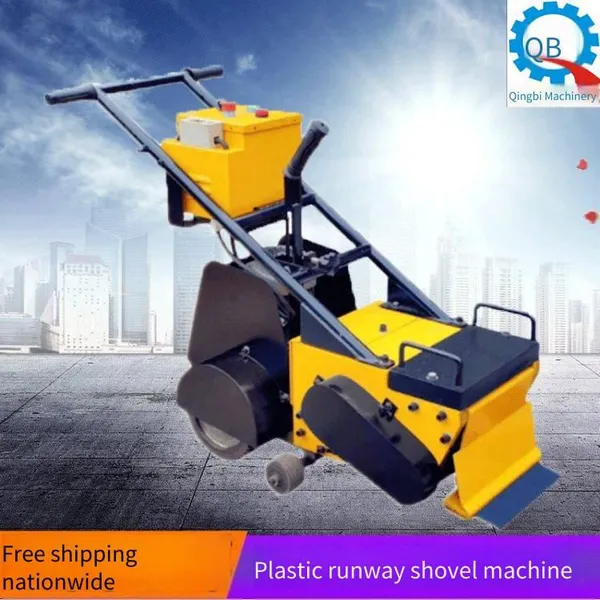

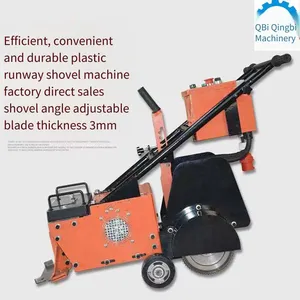

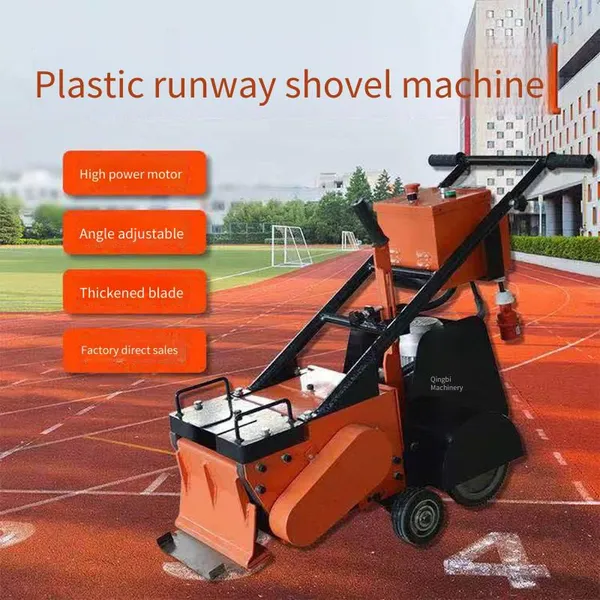

Q280Shredder Details
Advantages:
1.The motor uses a three-phase motor, which is more durable than a two-phase motor.
2.The machine is equipped with a walking motor, and the walking speed can be adjusted by frequency conversion. The walking speed can be adjusted according to the thickness of the construction materials, which is convenient, time-saving and labor-saving.

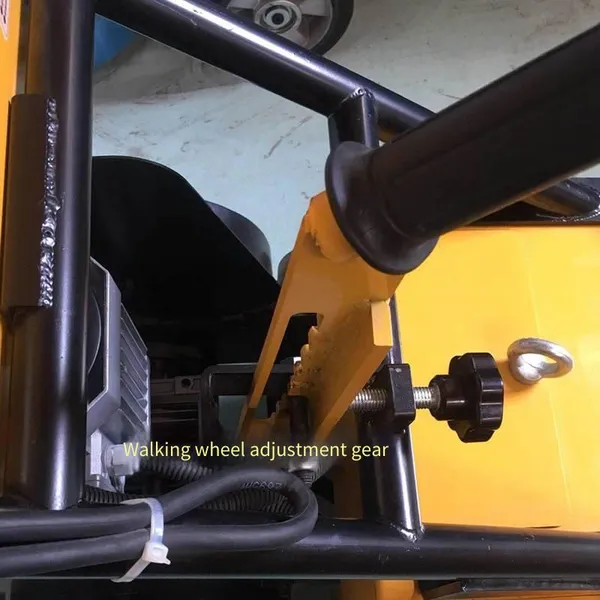

3.It is equipped with two types of wheels. When pushing, adjust to a single wheel, and when working, adjust to a non-slip wheel to prevent the machine from slipping and improve work efficiency.
4.The shredding angle can be adjusted (pull the lever to adjust the gear).
5.It is equipped with a weight block. You can choose to increase the weight of the machine according to the site conditions, and it is convenient and quick to disassemble and assemble.

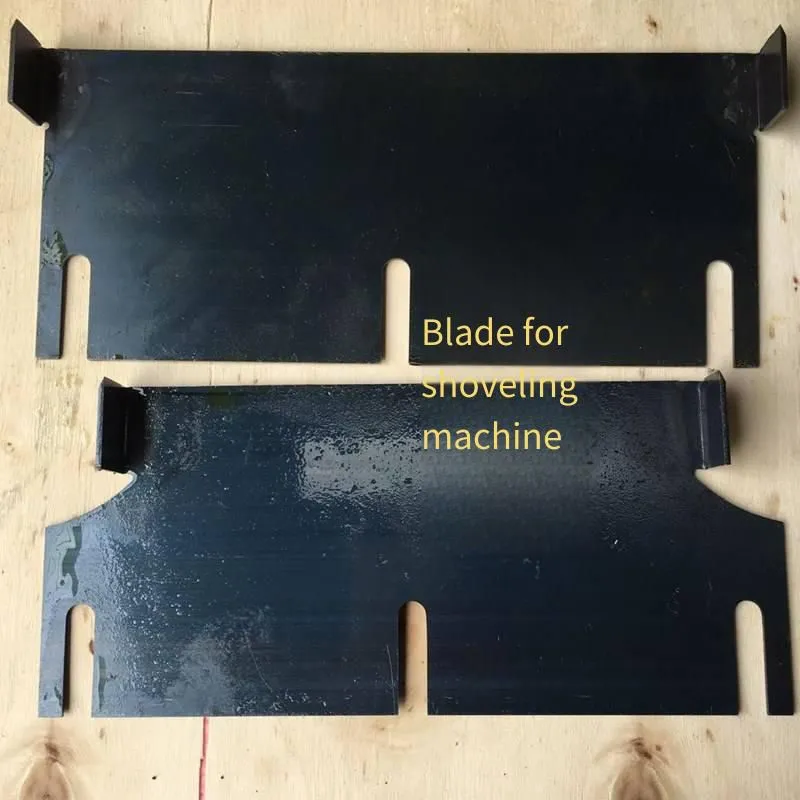

6.There are a variety of blades for customers to choose from, which are suitable for different site requirements.
Model and Parameters:
Model Number |
QB-280 |
Weight (KG) |
130.0 |
Output Motor Power (KW) |
1.5 |
Travel Motor Power (KW) |
0.75 |
Working Width (MM) |
280.0 |
Voltage (V) |
220/380 |
Shoveling Angle |
25-45 |
Scope of Application:

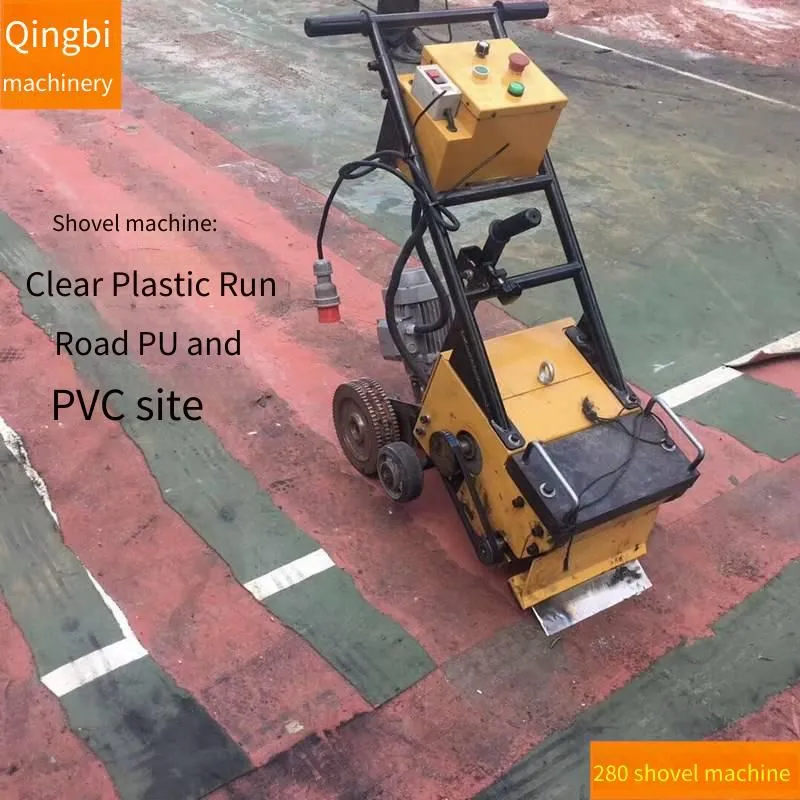

Suitable for removing plastic runways,PU sports fields,PVC plastic badminton courts, basketball courts, plastic floors, and removing old sites, etc.
Instructions for Use:
1.Open the mechanical packaging. The handle is an adjustable handle. Adjust it to the lowest position;
2.Lift the machine, loosen the five screws under the front shoveling part, install the shovel blade, and tighten the screws;
3.Turn the large black rubber handle for adjusting the depth to the lowest position. At this time, adjust the angle of the scraper according to the venue material and ground conditions (this is the scraper angle. Generally, for thicker venues, the angle can be adjusted smaller, and for thinner ones, it can be adjusted larger. Adjust it according to the ground);

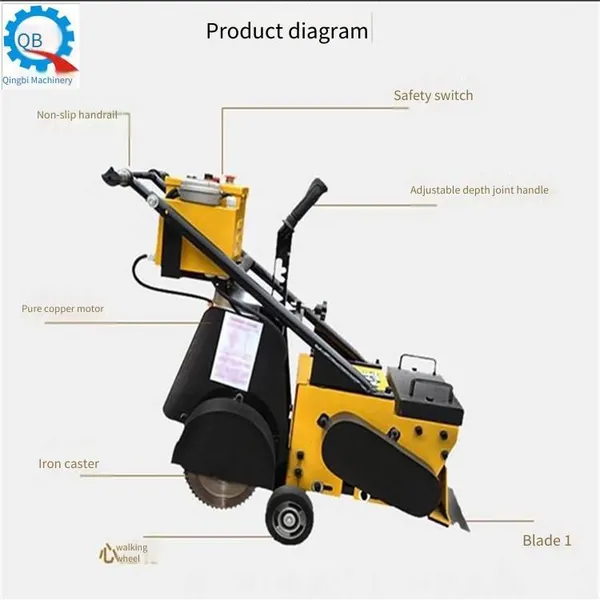

4.After all adjustments are completed, first turn on theONstart switch on the right. TheOFFis the stop switch for the scraper. The forward and reverse switch on the middle panel can be adjusted for forward and reverse rotation. The red one on the left is the emergency stop switch, the green one on the right is the start switch for the walking motor, and the black one at the bottom is the speed control switch for the walking motor. You can select an appropriate walking speed according to the ground conditions;
Precautions: The working principle of the scraping machine is that it has relatively strong vibration. Therefore, during operation, pay attention to tightening any loose screws. The working part of the scraper needs to be regularly filled with high-temperature grease. This equipment is a three-phase electrical equipment. Ensure that the power connection is correct during use.
Company Introduction
Shanghai Qingbi Industry Co., Ltd. is located in the beautiful international metropolis--Shanghai. Our company, Shanghai Qingbi Industry Co., Ltd., is mainly a professional enterprise engaged in the R & D, production and sales of construction machinery such as floor grinders, curing grinding and polishing machines, steel plate rust removal equipment, floor milling machines, court shoveling machines, road surface slotting machines, cleaning equipment, industrial vacuum cleaners, diamond grinding heads and resin grinding discs. Our products are self - produced and self - sold with reasonable prices. To meet the needs of customers, we have now launched an equipment rental service. Welcome customers to call for consultation. We are sincerely recruiting agents nationwide.
Choose Shanghai Qingbi mechanical equipment and take your wealth to the next level.
