800 Penetrating Curing Floor Grinder/Floor Grinder/Floor Polisher Details Description
Product Introduction:

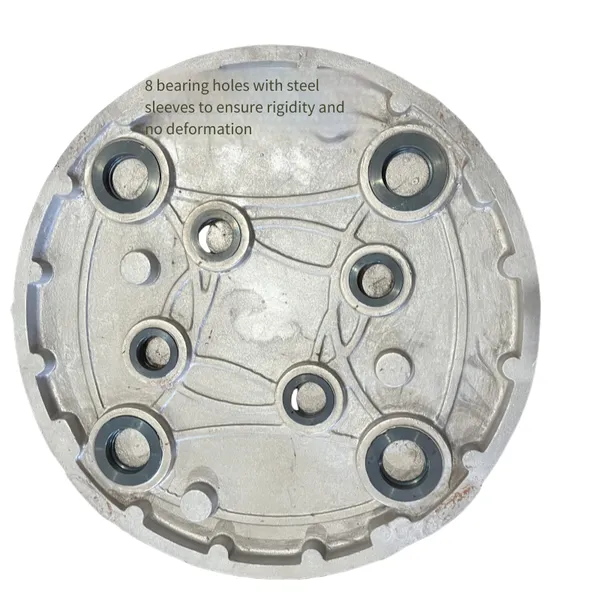

* It uses an aluminum alloy/cast iron gearbox, which has a long service life, high precision, and good heat dissipation performance. The gears are processed by grinding to ensure the stable operation and no noise of the machine.
* The appearance design is novel. It uses enlarged steel, which is strong and durable. The handle can be intelligently adjusted, designed according to the human height, making the operation labor-saving and comfortable.

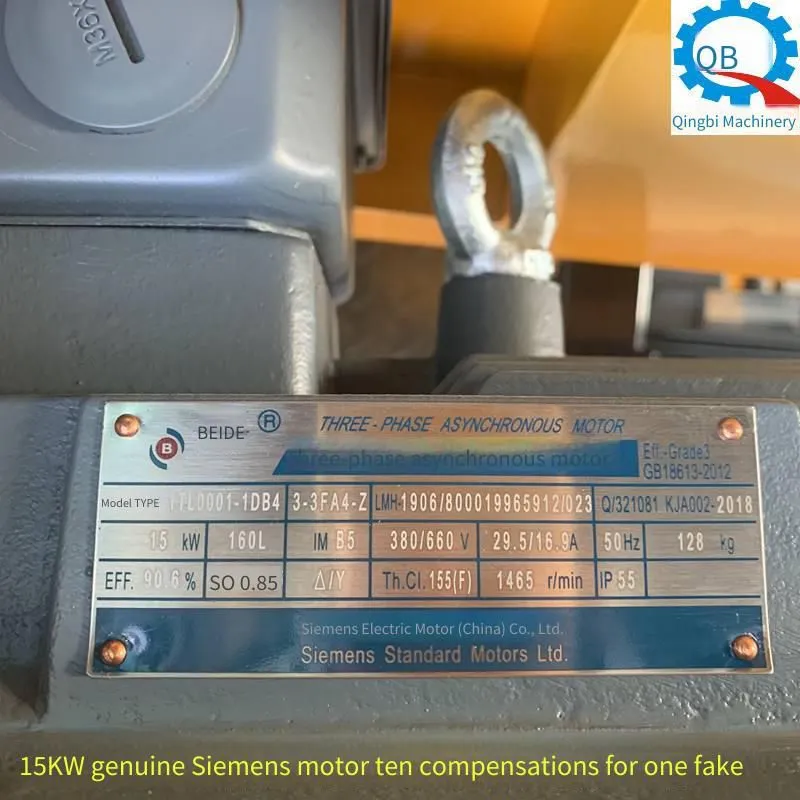

* Equipped with a high-power Siemens motor of 15/20HP, and the electrical control components are imported Schneider Electric, ensuring strong power and being suitable for large-area construction. At the same time, it is equipped with LED headlights for night operation.
* One machine can be used for multiple purposes. The machine is equipped with 2 external dust suction interfaces and can be used for both wet and dry operations, suitable for various construction environments.
* The design of the self-rotating and revolving gearbox ensures no missed grinding on the ground and guarantees the flatness of the ground being polished. Compared with the 700 grinders of other companies, it is more finely crafted, with high processing precision, good quality, excellent service, and more guarantees for after-sales!
Scope of application:
Stone renovation, integrated grinding and polishing of concrete hardener. It can be installed with alloy cutters for large-area removal and grinding of old epoxy and old paint floors.
Technical parameters: (QB-700 Grinder)
Working width |
700mm |
Horsepower |
15.0/20.0HP |
Voltage |
380V |
Rotation speed |
0-1500pm/min |
Water Tank |
40.0L |
Weight |
380.0kg |
Number of Disks |
4 Disks with 12 Abrasive Disks |
800Operation Instructions for the Floor Grinder:
1. Take the machine out of the packing box and place it flat on the ground.

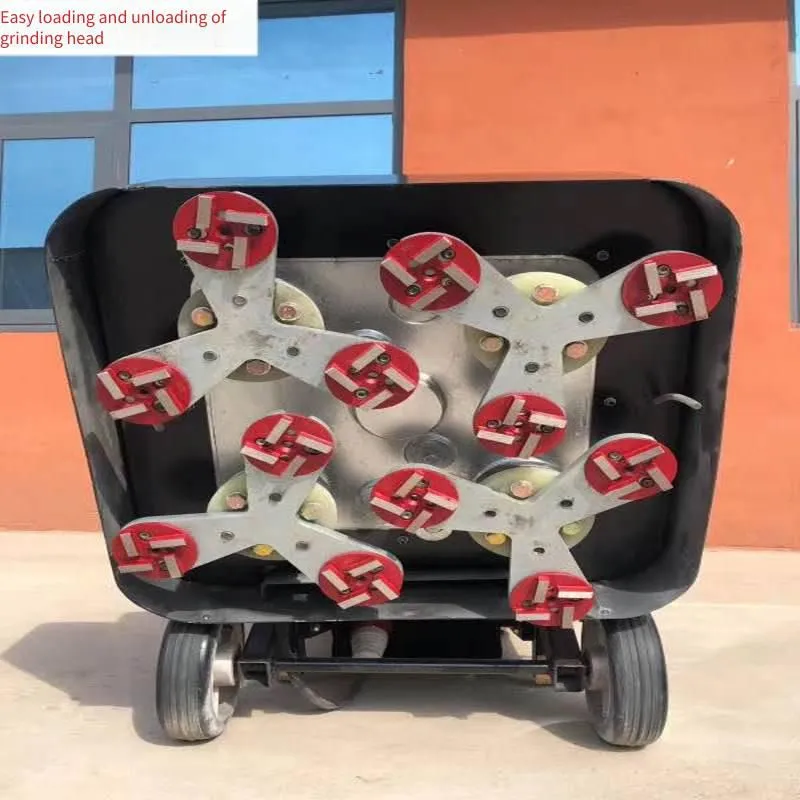

2. After the chassis is lifted, expose the chassis. Use diamond or resin abrasive disks according to the ground conditions. Install the grinding heads on the quincunx disk and fix them well. Then adjust the outer skirt to a suitable position.
4. Place the machine flat, and the four disks will automatically adjust the flatness. The twelve grinding heads on the chassis ensure a flat surface.
5. Plug in the power, turn the switch to start the machine, and then adjust it to the required speed. At this time, it can run normally.
6. After the machine is started, you can select a suitable speed to push forward at a constant speed according to the ground strength and treatment effect.
7. Select dry grinding or wet grinding according to on-site requirements. An industrial vacuum cleaner is required for dry grinding.
8. If any abnormal phenomenon occurs during operation, stop the machine immediately and restart it after inspection.
800Safety Instructions for the Grinder:
1. Operators must wear waterproof and insulated work shoes.
2. Before use, connect the machine's power supply to the distribution box and ensure that there is leakage protection and overload protection in the distribution box.
3. Check whether the power cord is damaged or aged. If so, replace it immediately.
4. Select a national standard 3*4 + 1*2.5 square wire for the power cord and ensure that the power cord length does not exceed 100M.
5. It is strictly prohibited to start the machine while it is under pressure.
Warranty Statement:
All equipment such as the 800 Penetrating Curing Floor Grinder, Cement Floor Curing Grinder, Industrial Vacuum Cleaner, and Floor Grinder purchased from Shanghai Qingbi Industry Co., Ltd. are guaranteed for one year and maintained for life!
CompanyIntroduction
Shanghai Qingbi Industry Co., Ltd. is located in Shanghai, a beautiful international metropolis in East China.Our company is mainly a professional enterprise engaged in the R & D, production and sales of construction machinery such as floor grinders, curing grinding and polishing machines, steel plate rust removal equipment, floor milling machines, court scraping machines, road cutting machines, cleaning equipment, industrial vacuum cleaners, diamond grinding heads, resin grinding discs, etc. Our products are self - produced and self - sold at reasonable prices. To meet the needs of customers, we have now launched an equipment rental service. Welcome customers to call for consultation. We are sincerely recruiting agents nationwide.
Choose Shanghai Qingbi mechanical equipment and take your wealth to the next level!
