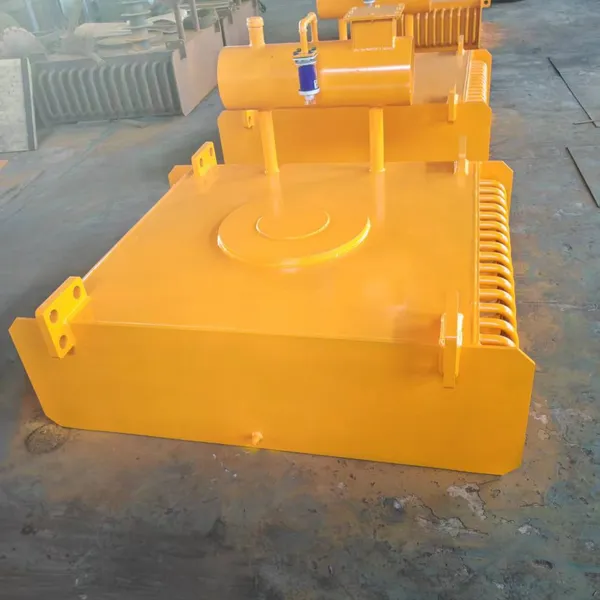

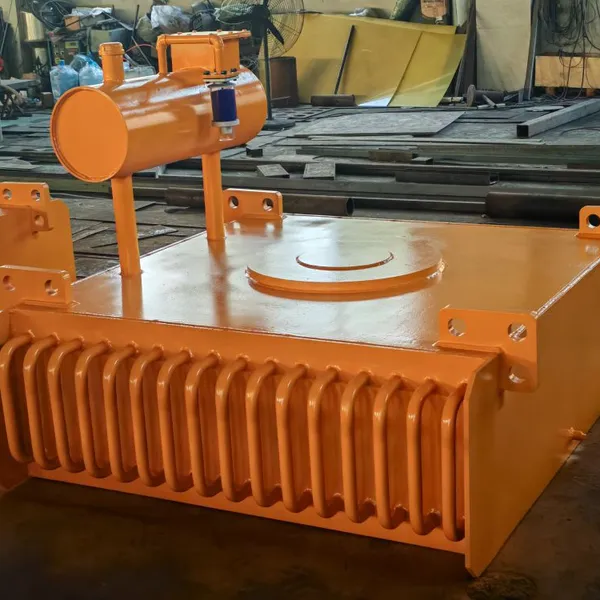

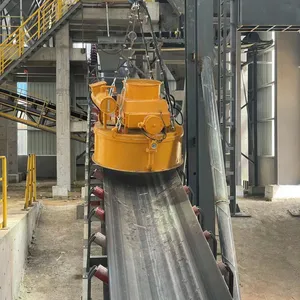

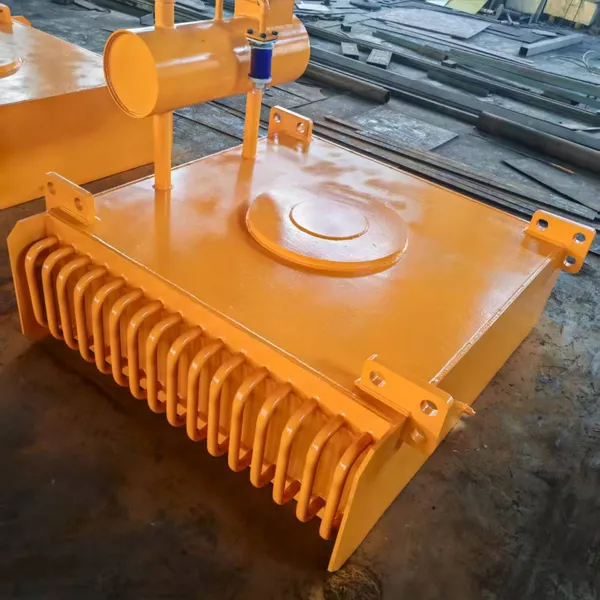

RCDFJ Oil-Forged Circulation Self-Cleaning Electromagnetic Iron Separator is a core industrial equipment designed for heavy-duty and high iron removal requirements. Adopting large/medium transformer-grade oil-forced circulation cooling technology, the excitation coil is fully immersed in transformer oil, matched with a dedicated circulation pump and air-cooled radiator, achieving efficient heat dissipation, low temperature rise (≤40℃) and stable magnetic field for long-term operation . Suspended above belt conveyors, it automatically attracts and continuously discharges iron impurities such as nails, iron sheets, steel balls, detonating cords from materials, with iron removal efficiency ≥99%. It adapts to harsh conditions like dust, humidity and salt spray, widely used in thermal power plants, coal mines, ports, metallurgy, building materials, protecting downstream crushing/grinding equipment and improving material purity . We are the original manufacturer with no middlemen, supporting customization, reliable quality, competitive price and complete after-sales service.
Core Advantages
1. ✅ Oil-Forged Circulation, Ultra-Low Temperature Rise
Adopts mature transformer oil-forced circulation technology, 3D coil winding + full oil immersion design with large heat dissipation area and smooth oil path; temperature rise ≤40℃, no attenuation or coil burnout under long-term full load, longer service life .
2. ✅ High Magnetism & Automatic Discharging
High-permeability pure iron core (DT4), high magnetic gradient & deep penetration; equipped with automatic iron discharge belt (drum-shaped roller + self-correction), continuous operation without manual work, easy maintenance .
3. ✅ Fully Sealed & Durable for Harsh Conditions
Fully sealed structure, waterproof, dustproof, moisture-proof & corrosion-resistant; specially designed fully sealed bearing housing, adapting to dusty, humid and salt spray environments with low failure rate and stable operation .
4. ✅ Safe, Intelligent & Reliable
Equipped with oil level monitoring, over-temperature alarm/power-off, coil temperature display, discharge correction alarm; optional remote monitoring (IoT), multi-protection for safe operation, complying with international industrial standards .
5. ✅ Factory Direct & Customization
Original factory (Weifang/Linqu, Shandong), independent R&D & production, no middlemen; supporting non-standard customization of belt width, suspension height, magnetic strength (900–2500GS) and power, matching working conditions on demand .
Applications
Thermal power plants, coal mines, coal ports, metallurgy, building materials, cement, chemical, sand & gravel, waste recycling, etc. Used for iron removal & purification of bulk materials (coal, ore, sand) on belt conveyors, protecting crushers, mills, conveyors and other key equipment.
Manufacturer Strength
Professional manufacturer of magnetic separation equipment, focusing on R&D and production of iron separators for years; with standardized workshops and complete testing equipment, full inspection from raw materials to finished products; complete export qualifications, products sold worldwide; providing installation guidance, technical training, spare parts supply and after-sales response within 24 hours.
Purchase Notes
1. Please provide: belt width, suspension height, material type/thickness, throughput, required magnetic strength, working environment for accurate model selection.
2. Support small trial orders + bulk orders, flexible payment, customizable packaging & nameplate.
3. Welcome to request product catalog, technical data sheet, quotation, reply within 24 hours.
Contact Us
RCDFJ Oil-Forged Circulation Self-Cleaning Electromagnetic Iron Separator | Original Manufacturer | Welcome to inquire and order for the best quotation!
