Kyue 2088 Industrial Pressure Transmitter Water-proof Pressure Sensor for Power Generation Chemical Textile
Product Spotlights
Zero and full-span output adjustable/calibratable
Short-circuit protection and reverse polarity protection
Capable of measuring gauge pressure, absolute pressure, and sealed reference pressure
Compact design, rugged and durable
All stainless steel sensor structure
Short-circuit protection and reverse polarity protection
Capable of measuring gauge pressure, absolute pressure, and sealed reference pressure
Compact design, rugged and durable
All stainless steel sensor structure
US$ 40 - 220
MOQ: 1 Piece
Key Specifications
Get Latest Price
Certification:
CE
Measuring Medium:
Other, steam ,gas ,liquid
Accuracy Grade:
Other, 0.2%F.S 0.5%F.S 0.075%
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Related Products
-
Kyue Monocrystalline Silicon Stable Accurate 4-20ma HART Differential Pressure Sensor Transmitter With Site Display Explosion ProofUS$ 335 - 350MOQ: 1 Unit -
Kyue OEM Automation G1/4 Thread M20 Portable LCD Water Oil Hydraulic Industrial Stainless Steel Digital Pressure Gauge on Site ReadingNegotiableMOQ: 1 Piece
-
High Temperature 4-20mA Output 304SS/316LSS 0.2% Accuracy Hydraulic Liquid Steam Pressure TransmitterNegotiableMOQ: 1 Piece
-
Kyue Industrial Oil Pressure Sensor 4-20mA Pressure Hammer Union Pressure Transmitter Facturing TruckNegotiableMOQ: 1 Piece
-
Low Pressure Switch Diaphragm Pressure Switch Kyue H100 SERIES for PumpsUS$ 150 - 155MOQ: 1 Piece
Certification
CE
Measuring Medium
Other, steam ,gas ,liquid
Accuracy Grade
Other, 0.2%F.S 0.5%F.S 0.075%
Structure Type
Diffused Silicon Pressure Transmitter
Customized
Customized
Type
Differential Pressure Transmitter
IP Rating
Other, IP66
Pressure range
Other, -0.1MPa-0-150Mpa
Explosion-proof
Ex db IIC T6 Gb
Transport Package
Carton
Trademark
KYUE
Origin
Tianjin

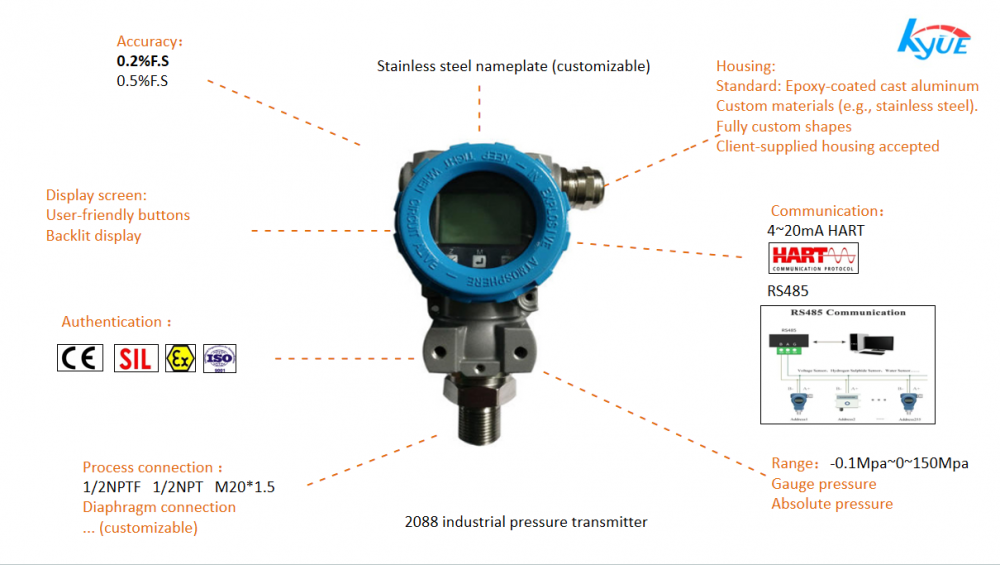

1. Product Overview
The KY3003GP is a rugged, reliable, and cost-effective industrial universal pressure transmitter designed for pressure measurement in heavy industry and various automated processes. Constructed with an all-stainless-steel body, it offers excellent sealing, vibration resistance, and an IP66 protection rating, ensuring stable operation in complex industrial environments. With a compact design for easy installation and flexible measurement types and accuracy options, it provides an economical and efficient pressure monitoring solution for industrial processes across multiple sectors.
2.Technical specification
| Parameter | Specification |
|---|---|
| Measured Medium | Liquids, gases, etc. (non-corrosive) |
| Pressure Type | Gauge Pressure, Absolute Pressure |
| Measuring Range | -0.1 MPa ~ 150 MPa (Customizable) |
| Overload Pressure | 150% F.S. |
| Accuracy Class | 0.2% F.S., 0.1% F.S., 0.075% F.S. (Optional) |
| Long-term Stability | ≤±0.1% F.S./year (typical) |
| Output Signal | 4~20mA DC (2-wire), HART Protocol |
| Supply Voltage | 24 VDC (typical, range usually 12~36 VDC) |
| Response Time | ≤10 ms |
| Operating Temperature | Medium/Ambient Temp.: -20℃ ~ +80℃ |
| Process Connection | M20*1.5 (Other threads customizable) |
| Electrical Connection | Plug connector type |
| Ingress Protection | IP66 |
| Housing Material | Stainless Steel ,Die-cast aluminium |
| Compensation Technology | Laser-trimmed resistance, zero and temperature compensation |
| Electrical Protection | Short-circuit protection, Reverse polarity protection |
3.Aplications
| Industries | Typical scenarios |
| Petroleum Industry | Wellhead pressure monitoring, pipeline pressure control. |
| Chemical Industry | Reactor pressure detection, corrosive medium pressure measurement. |
| Power Industry | Boiler steam pressure monitoring, generator cooling system pressure feedback. |
| Metallurgy Industry | Pressure management in high-temperature production processes. |
| Water Treatment | Municipal sewage or industrial wastewater pressure regulation. |
| Machinery Manufacturing | real-time pressure acquisition in hydraulic systems. |
4.Special requirements are welcome for consultation and customization.
