Technical parameter

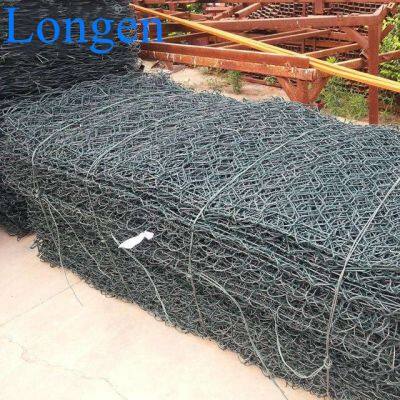

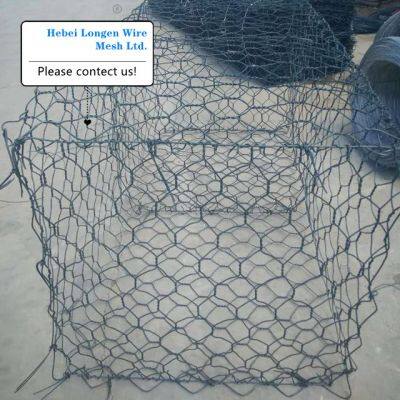

Gabion Box / Gabion basket
Gabion net is made of low carbon steel wire with high corrosion resistance, high strength and ductility or PVC coated steel wire by mechanical weaving. The box structure made of the net is gabion net,net is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the grid ecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.
The most common civil engineering use of Sea Gabion Box is to stabilize shorelines, streambanks or slopes against erosion. Other uses include retaining walls, temporary floodwalls, silt filtration from runoff, for small or temporary/permanent dams, river training, or channel lining. Sea Gabion wall may be used to direct the force of a flow of flood water around a vulnerable structure. Sea Gabion wall are also used as fish barriers on small streams.
A Sea Gabion wall is a retaining wall made of stacked stone-filled gabions tied together with wire. Gabion walls are usually battered (angled back towards the slope), or stepped back with the slope rather than stacked vertically.
Sea Gabion wall have some advantages over loose riprap because of their modularity and ability to be stacked in various shapes; they are also resistant to being washed away by moving water. Sea Gabion wall also have advantages over more rigid structures because they can conform to ground movement, dissipate energy from flowing water, and drain freely. Their strength and effectiveness may increase with time in some cases, as silt and vegetation fill the interstitial voids and reinforce the structure. They are sometimes used to keep stone swhich may fall from a cutting or cliff from endangering traffic on a thoroughfare.
Riprap Linings design with gabion mattresses
For riprap linings, the ability to deliver the expected channel protection depends on the proper installation of the lining. Additional design considerations for gabion linings include consideration of the wire mesh; freeboard; proper specification of gradation and thickness; and use of a filter material under the gabions.
The design procedure for gabions riprap is as follows:
Step 1. Determine channel slope, channel shape, and design discharge.
Step 2. Select a trial mattress thickness and fill rock, based on available sizes for the project.
Step 3. Determine specific weight of proposed stone.
Step 4. Estimate the depth.
