Home > Construction & Decoration > Wire Mesh > Stainless Steel Wire Mesh > Gabion Slope Protection Stone Cage Net Galvanized Retaining Wall Gabion Mesh
Gabion Slope Protection Stone Cage Net Galvanized Retaining Wall Gabion Mesh
US$ 0.85
1 - 1999 Square Meter
US$ 0.75
≥2000 Square Meter
Key Specifications
Get Latest Price
Material:
Galvanized Steel Wire, Low-Carbon Iron Wire
Type:
Weave Wire Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Collapsible Gabion Basket / Flood Control Wire MeshUS$ 0.75 - 0.85MOQ: 50 Square Meters -
Wholesale Hexagonal Gabionbasket Box Gabionwelded Gabion Box Basket for Stone Cage)nepal Gabion Boxgabion BoxUS$ 0.75 - 0.85MOQ: 1 Square Meter
-
Welded Fencing Stone Cage Netwholesale Gabion Box Hexagonal Gabiongabion Boxes Galvanizedgabion Boxgabion BoxUS$ 0.75 - 0.85MOQ: 1 Square Meter
-
3x1x1 Gabion Boxgabion Boxes Galvanized Weldedwholesale Gabion Box Hexagonal Gabiongabion Basket Gabion Boxgabion BoxUS$ 0.75 - 0.85MOQ: 1 Square Meter
-
New Type Welded Gabion Fence Iron Wire Mesh for Sawholesale Gabion Box Hexagonal Gabionkenya Gabion Boxesgabion BoxUS$ 0.75 - 0.85MOQ: 1 Square Meter
Technique
Woven
Model Number
Stone cage netting
Place of Origin
Hebei, China
Delivery Time
22-30 days
Processing Service
Weaving
Weave Style
Plain Weave
Product name
Gabion basket
surface treatment
Galvanized, PVC coated
Authentication
ISO9001:2008
Mesh opening
60x80mm 80x100mm 100x120mm
basket size
2x1x0.5m,2x1x1m,3x1x0.5m,4x1x0.2m
Zinc coating
30-300g/square meter
colour
Dark green , gray , silvery
sample
Free supply
Product Description

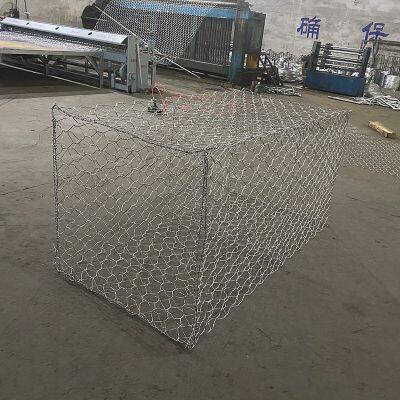

Gabion Box / Gabion basket

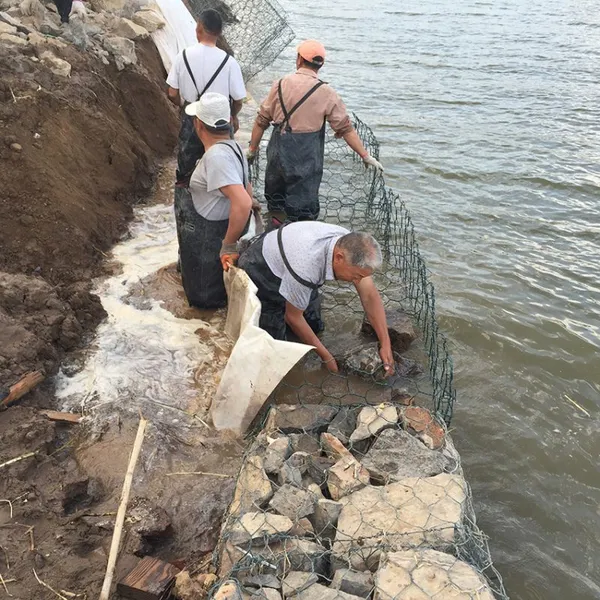

Gabion net is made of low carbon steel wire with high corrosion resistance, high strength and ductility or PVC coated steel wire by mechanical weaving. The box structure made of the net is gabion net，net is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the grid ecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.
Technical parameter
Product Name |
Gabion |
||||||

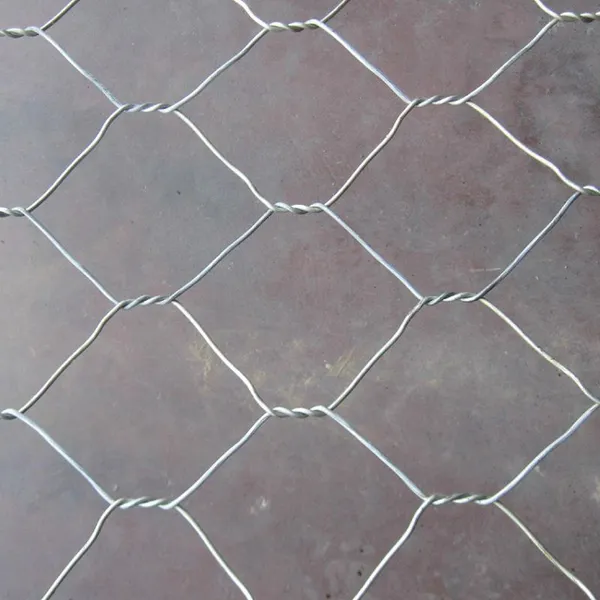

Hole Type |
Hexagonal |
||||||
Production process |
Three twist / Five twist |
||||||
Material |
GI wire，PVC coated wire，galfan wire |
||||||
Wire Diameter |
2.0mm-4.0mm |
||||||
Hole Size |
60×80mm，80×100mm，100×120mm，120×150mm |
||||||
Gabion Size |
2m×1m×0.5m，2m×1m×1m，3m×1m×0.5m，3m×1m×1m 4m×1m×0.5m，4m×1m×1m，Other sizes can be customized.
|
||||||
Gabion Features |
1. economy. Just put the stone into the cage and seal it. 2. The construction is simple without special technology.
3. It has a strong ability to resist natural damage, corrosion resistance and adverse climate impact.
4. It can withstand large-scale deformation without collapse.
5. The silt between the stone gaps of the cage is conducive to plant production and can be melted into one with the surrounding natural environment.
6. It has good permeability and can prevent damage caused by hydrostatic force. Conducive to the stability of hillside and beach
7. Save transportation cost, fold it up for transportation and assemble it on the construction site. 8. Good flexibility: no structural joint, the overall structure has ductility.
9. Corrosion resistance : galvanized materials are not afraid of seawater.
10. Environmental protection materials: cadmium (CD) < 10ppm, lead (PB) < 50ppm,
other harmful substances such as mercury (Hg), hexavalent chromium (Cr6 +), PBB and PBDE are not detected, which fully meet the environmental protection standards of Rosh. |
||||||
production process

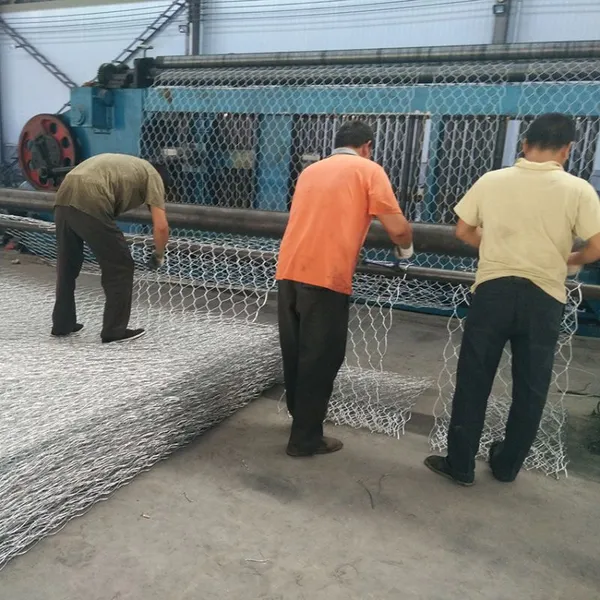

Gabion weaving
The hexagonal mesh equipment can prepare 2.0-4.0mm galvanized wire / PVC coated wire gabion mesh.
Manual cutting and assembly.
Workers will work out the formed gabion net and assemble it into the size required by customers.

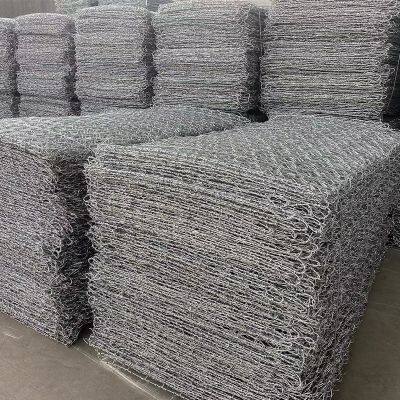

Compressed packaging
A gabion network compressed and formed according to a certain number.
Packaging & Shipping
shipping
For a small quantity of orders or sample order, we will generally choose to transport by air (DHL, TNT, etc)
Large orders we generally use the ocean shipping.
About our factory
Hebei Longen Wire Mesh Co.,LTD
With 20 years of manufacturing and export experience along with excellent quality, advanced services and competitive prices, Longen Wire Mesh Products Co., Ltd. has won numerous customers' trust and support.We can offer customized solutions for a wide range of stainless steel...see more>>
