Metal Conveyor Belt

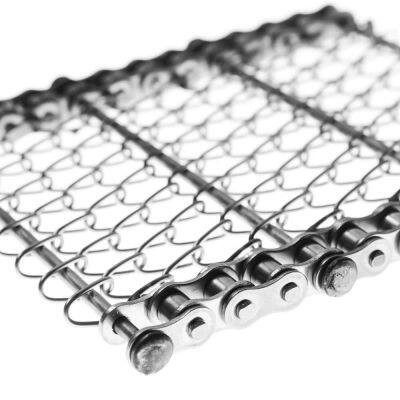

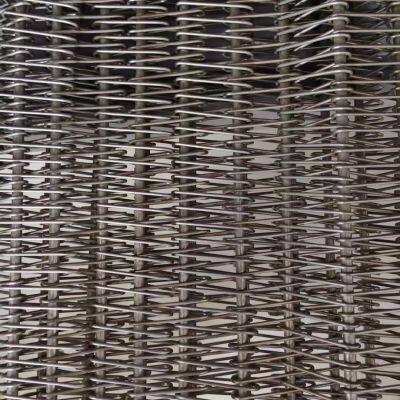

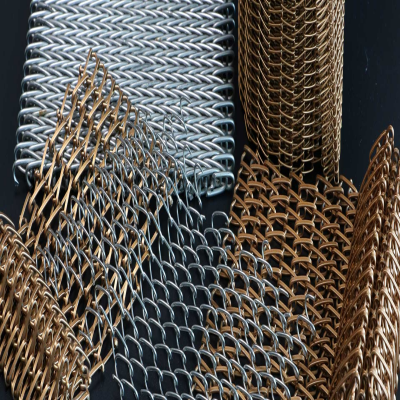

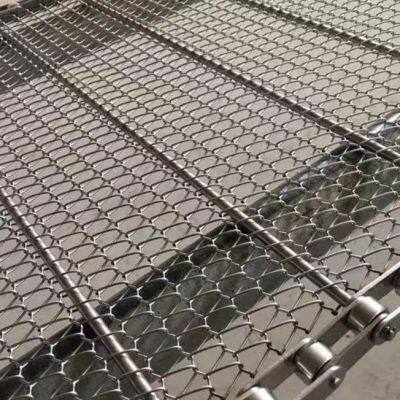

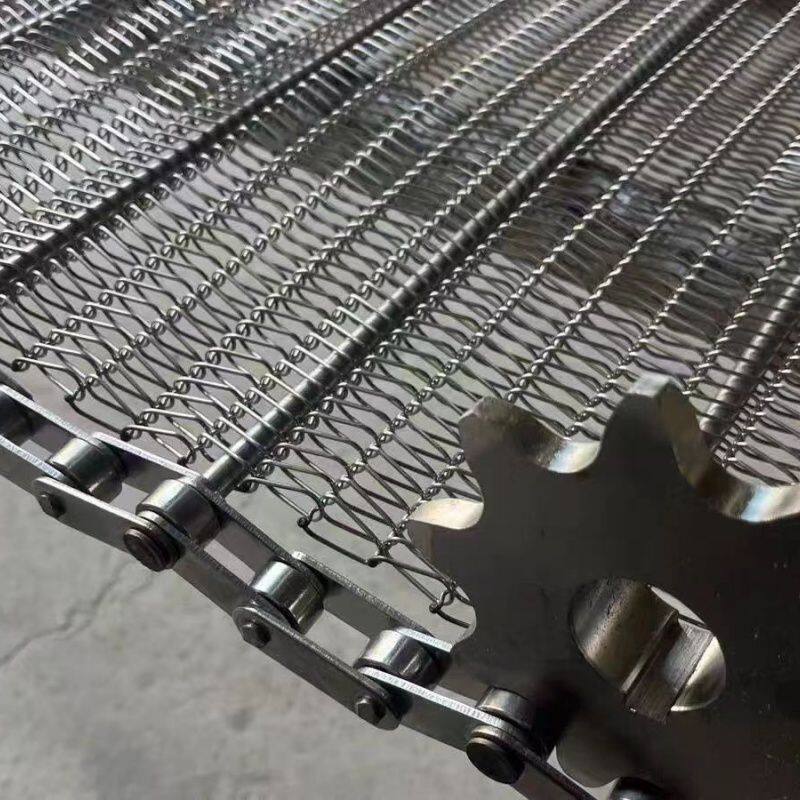

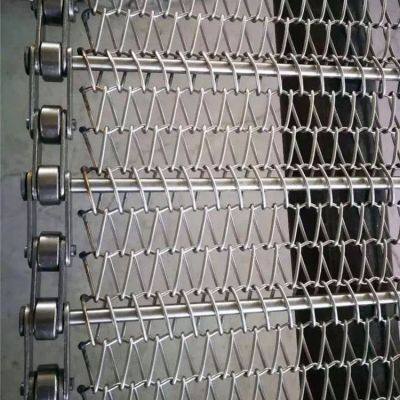

Flat spiral conveyor belt consists of a series of alternating single or double spiral wires, which can be round and flat, they canbe added crimped or straight cross rods. And the alternating structure effectively reduces downtime. So flat spiral conveyor belt is an economic choice, it provides a flat loading surface for small products or easily broken products.
Product Description
Feature:
1. Excellent strength to weight ratio but with maximum flexibility.
2. High temperature resistance, anti-corrosion and anti-rust,resistant to acid and alkaline.
3. Stable product conveying without slipping, griping and jamming, good air circulation.
4 Side board can be added to prevent products from falling down to the ground.
5. Complying with food safety standards such as FDA, GMP and others up your request.
6. Durable, low maintenance cost, quick and easy install and replacement.
Specification
Material |
stainless steel 304, 314, 316, 316L, carbon steel, copper steel, brass steel and other types are available |
|||
Surface treatment |
galvanized, 3% chromium plate, manganese plated |
|||
Spiral diameter |
0.9–3.0 mm |
|||
Flat wire size (mm) |
from 1 × 0.7 to 6 × 3 |
|||
Cross rod pitch |
4–33 mm |
|||
Belt speed |
0.5 m/min to 60 m/min |
|||
Cross wire diameter |
1.2–4.0 mm |
|||
Spiral wire pitch |
4–22 mm |
|||
Belt width |
up to 5 meters or more upon your request |
|||
Edge type |
welded edge, hook edge, laddered edge, chain link edge |
We can also supply the following related conveyor belt :
Packaging & Shipping
Company Profile
What can we do for you?
Give us a call or send us an email and we will be happy to provide you with technical support and service!
Hebei Longen Wire Mesh Products Co., Ltd. was established in 2015. The company relies on continuous technological innovation and quality improvement to create value for customers. It has established a management system based on ISO 9001 requirements and has become a benchmark enterprise in the industry.
Our excellent manufacturing, service and support ensure that we provide the best solutions to meet the different needs of our customers.
