Home > Construction & Decoration > Wire Mesh > Stainless Steel Wire Mesh > Longen Stainless Steel Honeycomb Mesh Belt Welded Construction Heat Resistant Corrosion Resistant for Food Baking Cooling
Longen Stainless Steel Honeycomb Mesh Belt Welded Construction Heat Resistant Corrosion Resistant for Food Baking Cooling
US$ 9.00
100 - 999 Meters
US$ 2.00
≥1000 Meters
Key Specifications
Get Latest Price
Material:
Stainless Steel Wire, Stainless steel wire
Type:
Knitted Wire Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Price Stainless Steel 304/Copper Spiral Woven Conveyor Belt for Food Processing Cutting and Welding Services IncludedUS$ 2.00 - 9.00MOQ: 100 Meters -
Reinforced Double Reinforced Stainless Steel Wire Chain Link Conveyor Belt Welded/Knuckled Edge Corrosion Resistant Cutting forUS$ 2.00 - 9.00MOQ: 100 Meters
-
Longen Welded Edge Knitted Wire Mesh Conveyor Belt Stainless Steel Heat Resistant Corrosion Resistant CE Certified CustomizableUS$ 2.00 - 9.00MOQ: 100 Meters
-
Wholesale Herringbone Encryption Mesh Belt Plain Weave Metal Conveyor Belt for Food Processing Machinery Cut Welded IncludedUS$ 2.00 - 9.00MOQ: 100 Meters
-
SS304 Herringbone Compound Balanced Weave Stainless Steel Wire Mesh for Bakery Conveyor Belt Glass Annealing Knitted Wire MeshUS$ 2.00 - 9.00MOQ: 100 Meters
Technique
Woven
Model Number
r Conveyor Belt8184
Brand Name
Longen
Place of Origin
Hebei, China
Delivery Time
22 ~ 30 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
PLAIN WEAVE
Usage
Food transportation, Energy ,Mining, Food / Beverage
Feature
Heat Resistant, corrosion resistance
packing
plywood case or carton
Sample
Provide Sample
Length
Customized Length
width
Customized Width
Thickness
6mm-20mm
Product name
Honeycomb Mesh Belt

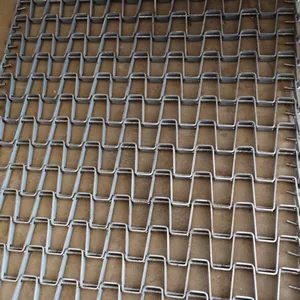

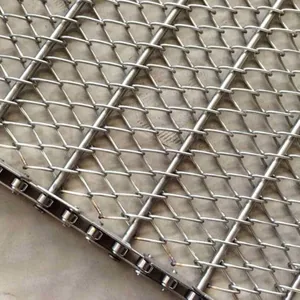

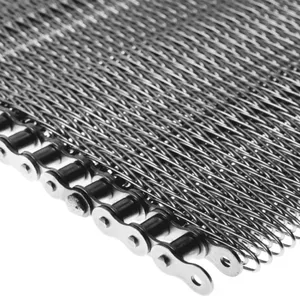

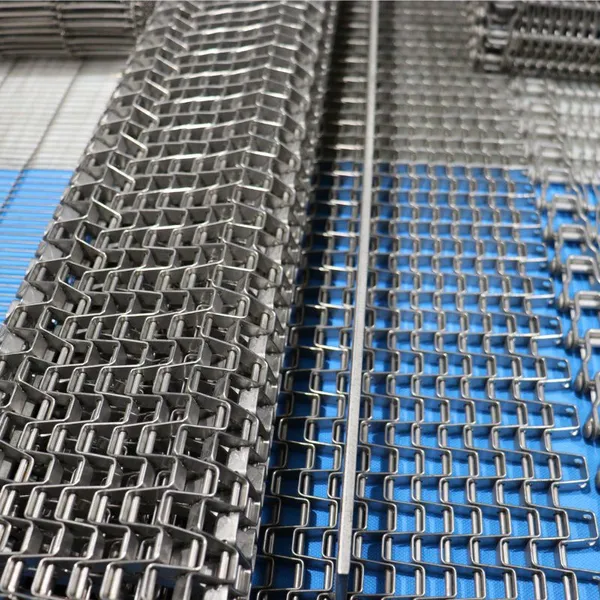

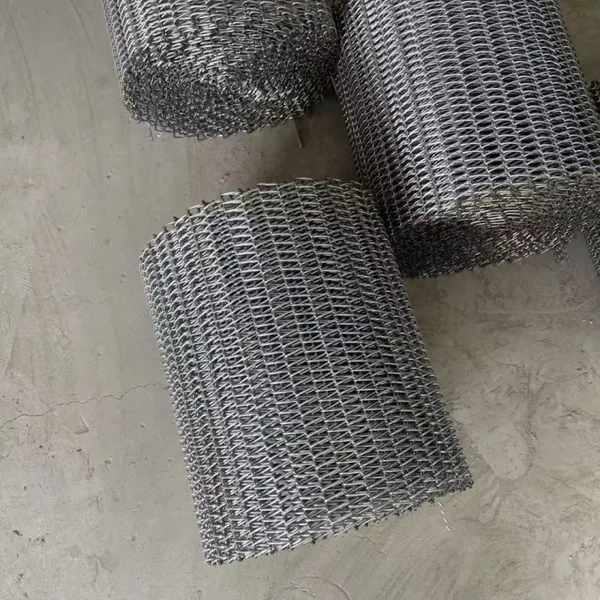

Honeycomb Mesh Belt/ Stainless Steel Conveyor Mesh Belt
Longen company has manufactured flat conveyor belts flat wire belt,eye flex conveyor belt and compound weave conveyor belt for years.
The high strength to weight ratio of the flat wire belt prevents it from deforming under heavy loads, and a very large opening area keeps air flowing. The side guards can be provided on your request, it can be used to control the height of the product and prevent it from falling due to excessive build-up. Compound weave conveyor belt has tighter conveyor face that has been ideal for barbecues and small products.
The high strength to weight ratio of the flat wire belt prevents it from deforming under heavy loads, and a very large opening area keeps air flowing. The side guards can be provided on your request, it can be used to control the height of the product and prevent it from falling due to excessive build-up. Compound weave conveyor belt has tighter conveyor face that has been ideal for barbecues and small products.
Product Description
Feature:
1. Simple structure, only made of several spiral coils.
2.Large opening area with good air circulation, ideal for drying and cooling.
3. Welded or knuckled edge for your choice.
4. Side and center baffles can be added to the conveyor belt to prevent the products from falling down to the ground. 5.Economical. The simple structure makes it economical than other types of conveyor belt.
Specification
1.Material: galvanized low carbon steel C1015, high carbon steel C-1045, C1050, stainless steel T-304, T-306
Product name |
Flat wire belt |
|||
Mesh size (inch) |
1 × 1, 1/2 × 1, 1/2 × 1/2, 3/4 × 1 |
|||
Belt width |
3"–240"; Special widths available on customization |
|||
Flat strip |
- Standard (inch): 3/8 W × 0.046 T, round edge - Radius (inch): 1/2 W × 0.062 T, round edge - Heavy duty (inch): 1/2 W × 0.062 T, round edge |
|||
Cross rod |
- Standard: 11 & 12 gauge - Radius: 6 gauge - Heavy duty: 6 gauge |
|||
Edge style |
Clinched edge, welded edge |
|||
Belt speed |
From less than 1 m/min to 25 m/min |
|||
Temperature range |
-30 °C to 400 °C |
|||
Accessories |
Flight clip, lane divider, edge guard, pin up attachment |
Eye flex conveyor belt |
||
Types |
Standard, under welded wire spacing, ring as spacer, spring as spacer |
|
Opening area |
20%–90% |
|
Belt gap |
0.08"–1.97" |
|
Diameter of wire link |
0.06" (light and fine structures) to 0.16" (for heavy load applications) |
|
Width |
1.97"–275.6" |
|
Length |
According to your requirements |
|
We can also supply the following related conveyor belt :

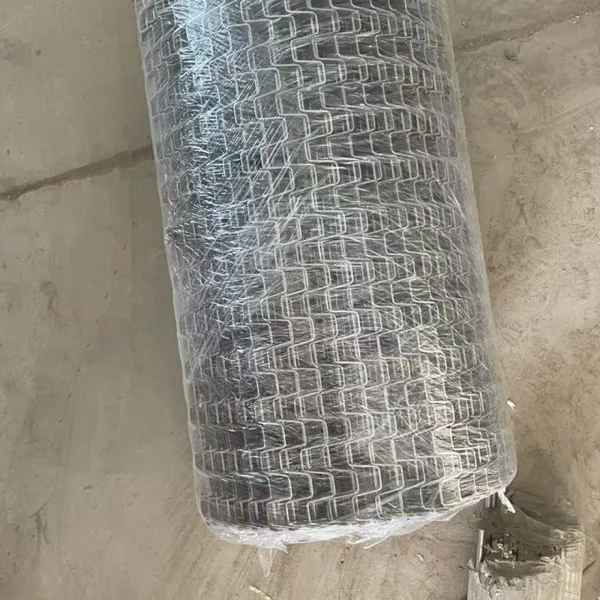

Packaging & Shipping
Company Profile
What can we do for you?
Give us a call or send us an email and we will be happy to provide you with technical support and service!
Hebei Longen Wire Mesh Products Co., Ltd. was established in 2015. The company relies on continuous technological innovation and quality improvement to create value for customers. It has established a management system based on ISO 9001 requirements and has become a benchmark enterprise in the industry.
Our excellent manufacturing, service and support ensure that we provide the best solutions to meet the different needs of our customers.
Give us a call or send us an email and we will be happy to provide you with technical support and service!
Hebei Longen Wire Mesh Products Co., Ltd. was established in 2015. The company relies on continuous technological innovation and quality improvement to create value for customers. It has established a management system based on ISO 9001 requirements and has become a benchmark enterprise in the industry.
Our excellent manufacturing, service and support ensure that we provide the best solutions to meet the different needs of our customers.
