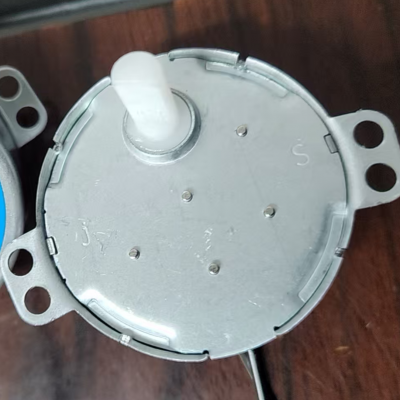

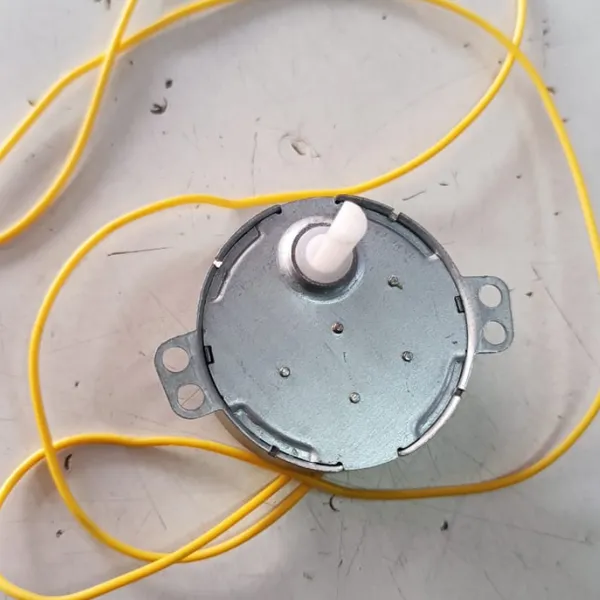

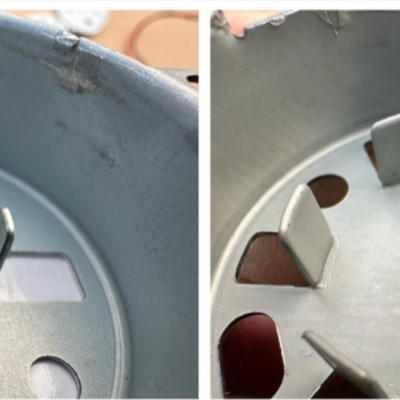

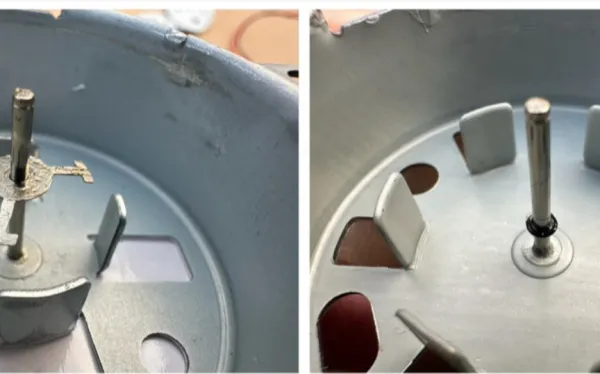

Help CenterPlastic D Cut Shaft, Nylong Gear Synchronous Motor Model 49TYJ
Product Spotlights
Related Products
-
Metal D Cut Shaft, Nylong Gear Synchronous Motor Model 49TYJNegotiableMOQ: 50000 Pieces -
H Cut Metal Gear Synchronous Motor Model 49TYJ (B02)NegotiableMOQ: 50000 Pieces
-
Synchronous Motor Model 49TYJ (B02)NegotiableMOQ: 50000 Pieces
-
Two Hole Shaft, Nylon Gear， Synchronous Motor Model 49TYJ (B02)NegotiableMOQ: 50000 Pieces
-
Enameled CCA WireUS$ 9.00 - 10.00MOQ: 500 Kilograms
1. Technical Requirements
Serial Number Item Name Technical Requirements
1 Appearance No rust, obvious scratches, uniform color, no zinc layer peeling, and correct nameplate
2 Outline and Installation Dimensions According to drawing requirements
3 Rated Voltage 220-240V, 50/60Hz
4 No-load Power 3.0-4.0W
5 No-load Current 0.018A
6 Insulation Resistance Under normal conditions: ≥100MΩ; Under hot conditions: ≥10MΩ
7 Insulation Dielectric Strength AC1500V, 1min
8 Cold-state Resistance 9500Ω
9 Motor Leakage Current ≤0.25mA
10 Low Voltage Pull-in Torque (150V～, 60Hz) ≥0.184N.m
11 Temperature Rise ≤75K
12 Noise 40dB(A); ② The motor runs smoothly, no abnormal noise, and the sound is harmonious
13 Tensile Strength of Connecting Wire Between connecting wire and shell: 5N, 15s
14 Motor Durability Test After the test, the insulation resistance meets the requirements
15 Abnormal Operation of Motor After the test, the winding temperature rise ≤165℃, and can withstand the voltage of 1250V for 1min
16 Motor Damp Heat Test a. Insulation resistance ≥10MΩ; b. Withstand voltage of 1250V for 1min without flashover, breakdown or arcing; c. Power and torque meet the drawing requirements
17 Low Voltage Start ≤150V
2. Test Methods and Rules
2.1 Appearance: Visual inspection
2.2 Outline and installation dimensions: Inspect according to the drawings provided by the customer
2.3 Power and current: Use an electrical parameter tester, and the data measured under no-load shall meet the requirements in the table.
2.4 Insulation resistance: Test the insulation resistance between the motor winding and the casing under normal temperature, which shall be greater than 100MΩ; when it is in thermal stability or after the temperature rise test, it shall not be less than 10MΩ.
2.5 Insulation dielectric strength: Apply an AC voltage of 1250V between the winding and the casing for 1min, with no flashover, breakdown or arcing.
2.6 Torque: Hang a torque disk with a diameter of Ф80mm on the motor output shaft, and hang weights on the torque disk. The torque shall be in accordance with the regulations in the table. It is qualified if it can start forward and reverse in any three positions.
2.7 Motor leakage current: After the temperature rise test, the motor is energized with 1.06 times the rated voltage and runs under no-load, and the measured motor leakage current shall meet the requirements in the table.
2.8 Low voltage pull-in torque: The motor is energized with 85% of the rated voltage, 0.8 times the torque is applied to the motor output shaft, and the voltage is applied intermittently to start twice, both of which can pull into synchronization from a standstill.
2.9 Temperature rise: Place the motor under normal and stable test climate conditions until it reaches a stable temperature (not less than 2h), measure the room item
