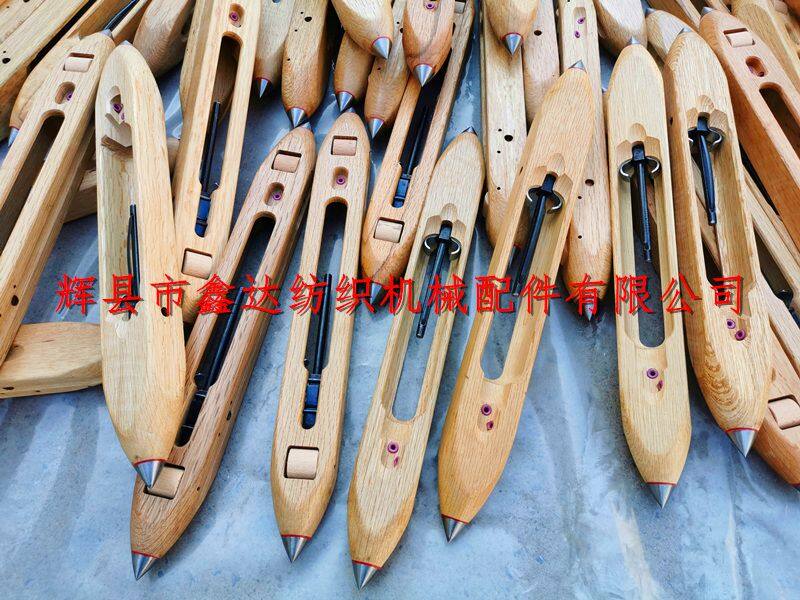

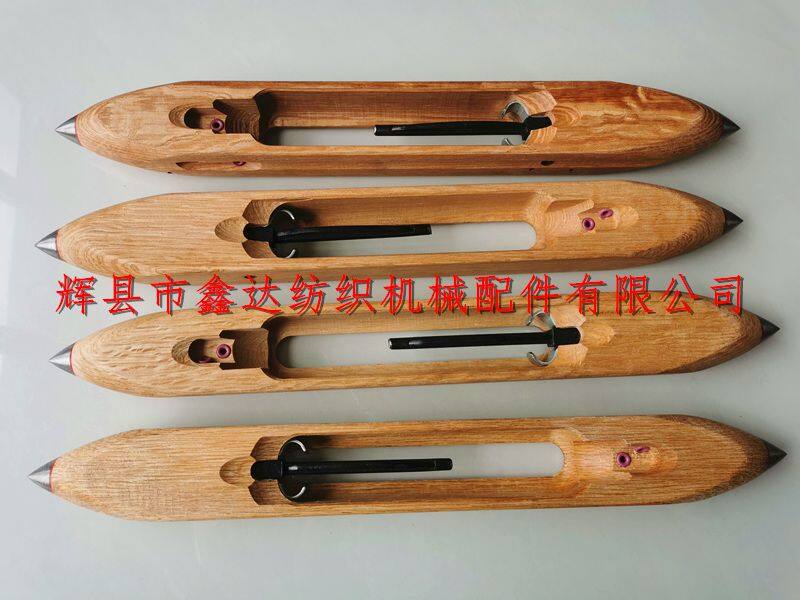

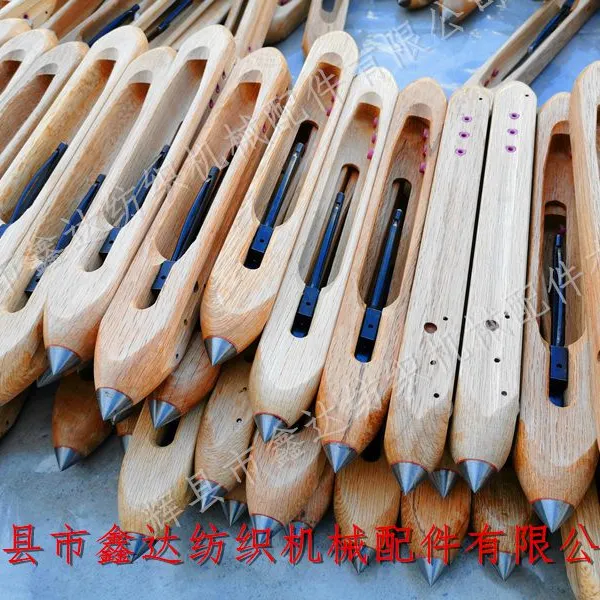

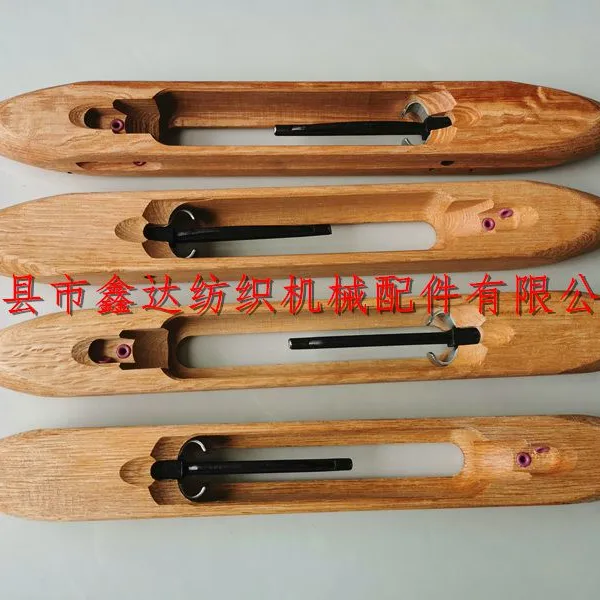

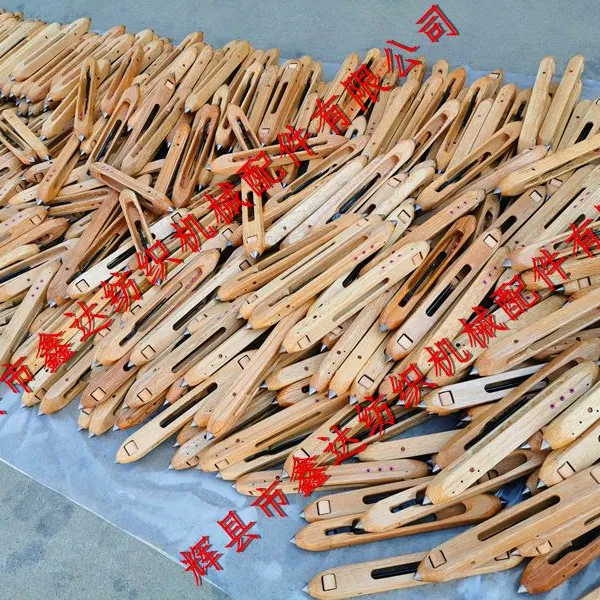

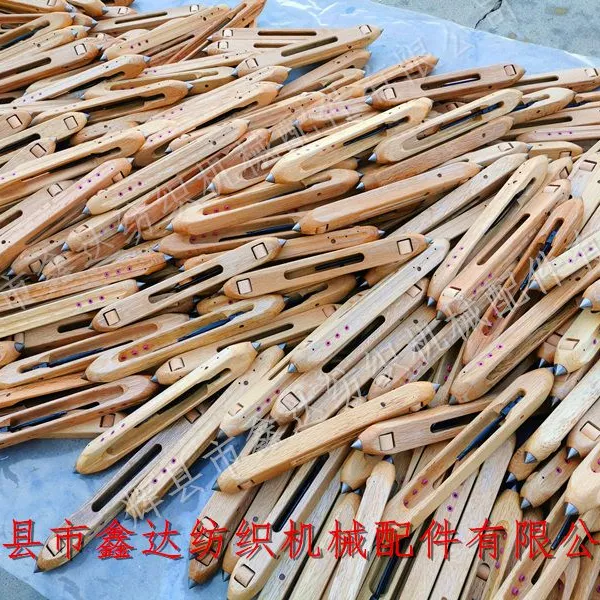

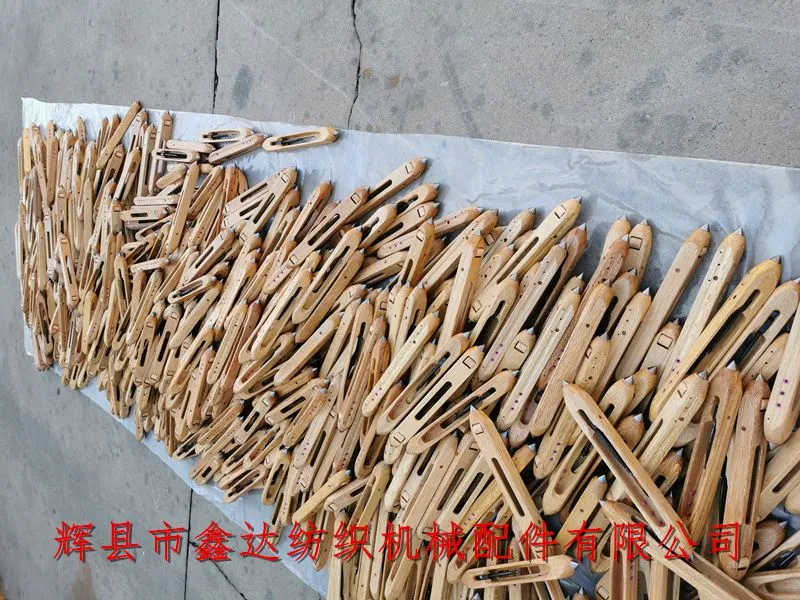

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides 430*48*36mm pulley wooden shuttles (Cyclobalanopsis semicircle clamp type). The total length of the clamp pulley shuttles is 430mm, the outer width of the bottom is 48mm, and the total height is 36mm. The inner length of the shuttle bottom chute (including the chute with a length of 46.5mm and an inner width of 11mm below the shuttle core) is 211mm, and the inner width of the middle position of the chute is 19mm.
There are three porcelain eyes on this pulley shuttle, which are made of alumina and purple in color; The inner width of the notch of the semi-circular pliers is 15.5 mm, the inner width of the middle of the two semi-circles is 28.5 mm, the pliers are made of A3 galvanized steel, and the reed of the bobbin is 3.4mm in width and 84 mm in length.Hand-loom Shuttle,Home Pulley Shuttle,Wood Shuttle,XinDa Semicircle Clamp Shuttle,Textile Wooden Parts.

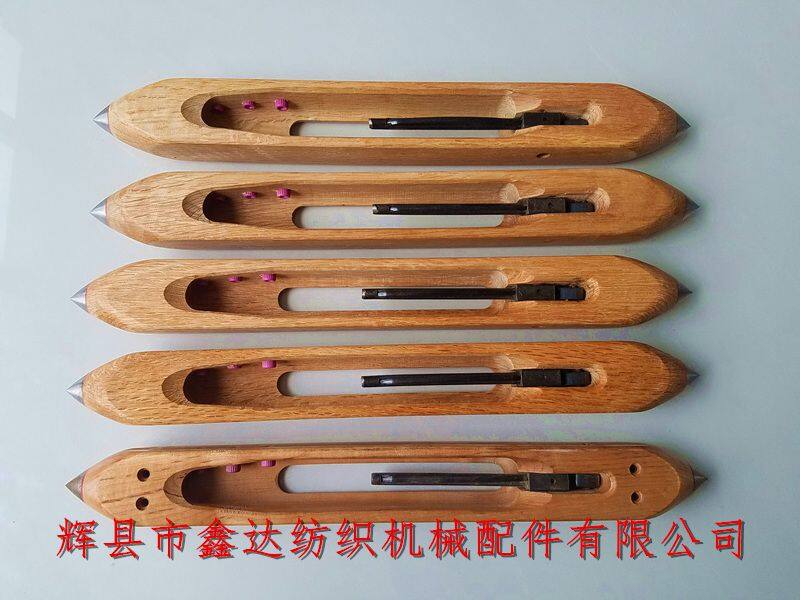

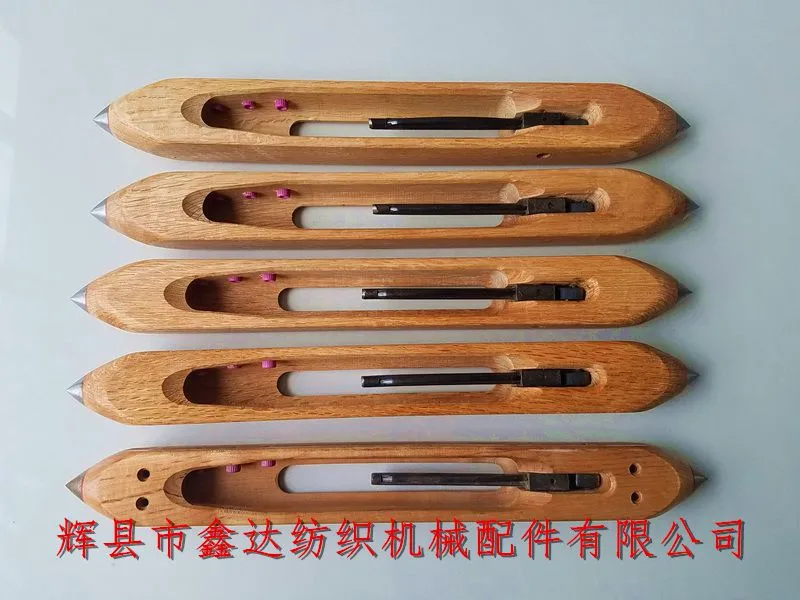

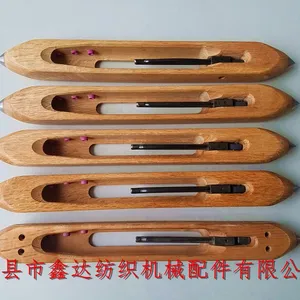

375*41*32 small pulley wooden shuttles (Cyclobalanopsis glauca) for hand looms. This wooden shuttle is suitable for hand looms. The total length of the shuttle body is 375mm, the width of the bottom is 41 mm, and the total height is 32 mm; The total internal length of the shuttle cavity of pulley shuttle is 240 mm, the effective internal length is 192 mm, the internal width is 27.3 mm, and the total length of the shuttle core with reed is 116.8 mm.
There are three 8*10mm purple alumina porcelain eyes on the front side of the manual shuttle, and the 8 mm wide silk loom bottom spring is used at the back of the shuttle. The rectangular head size of the spring leaf shuttle core is 23*10*13mm.
The weight of a single-handle wooden shuttle with pulleys is 335g(small), which is about 35g less than that of a shuttle of the same size made of compressed wood. The minimum order quantity of this Cyclobalanopsis wood shuttle is 300 pieces, and the delivery period is about 40-45 days.
