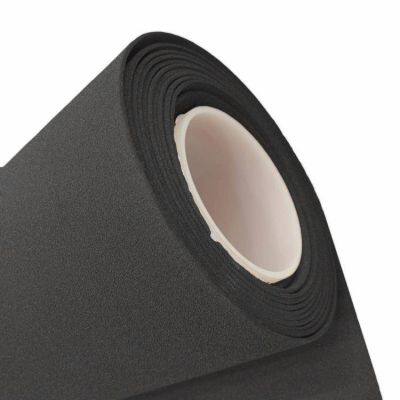

Help Center0.3mm Thick Flexible Graphite Sticker, High Thermal Conductivity Natural Graphite Sheet, Graphite Film for Heat Dissipation of Mobile Phone and Tablet Battery Back Covers
Related Products
-
t = 0.8mm Xyz Three - Way Conductive, Cushioning and Shielding Sponge, Customized Die - Cutting ProcessingUS$ 13.85 - 15.38MOQ: 50 Square Meters -
Superconducting Substrate, Single-sided and Double-sided Conductive Non-woven Fabric Tape, Coating Factory and Die-cutting ProcessingUS$ 17.69 - 19.23MOQ: 1 Square Meter
-
Temperature-resistant, Flame-retardant and Weather-resistant Polyurethane Foam 4701-41-20125-04 Die-cutting ProcessingUS$ 0.26 - 0.32MOQ: 100 Pieces
-
bf - 2000 Rogers Bisco Microporous Silicone Foam, Ultra - Soft and Fire - Resistant Silicone Foam for Locomotive SealingUS$ 1615.38 - 1769.23MOQ: 1 Box
-
Rogers Polyurethane Foam Poron4701 - 41 - 15375 Aging-resistant and Waterproof Sealing Gasket Die-cutting ProcessingUS$ 2.62 - 3.23MOQ: 100 Pieces
1. Product Name
Thermal Conductive Graphite Sheets for LCD-TV/PDP Flat Panel Displays
Thermal Conductive Graphite Sheets for Mobile Phone Battery Back Covers, Computer CPU Heat Dissipation, and LED
Natural Graphite Sheets
2. Product Introduction

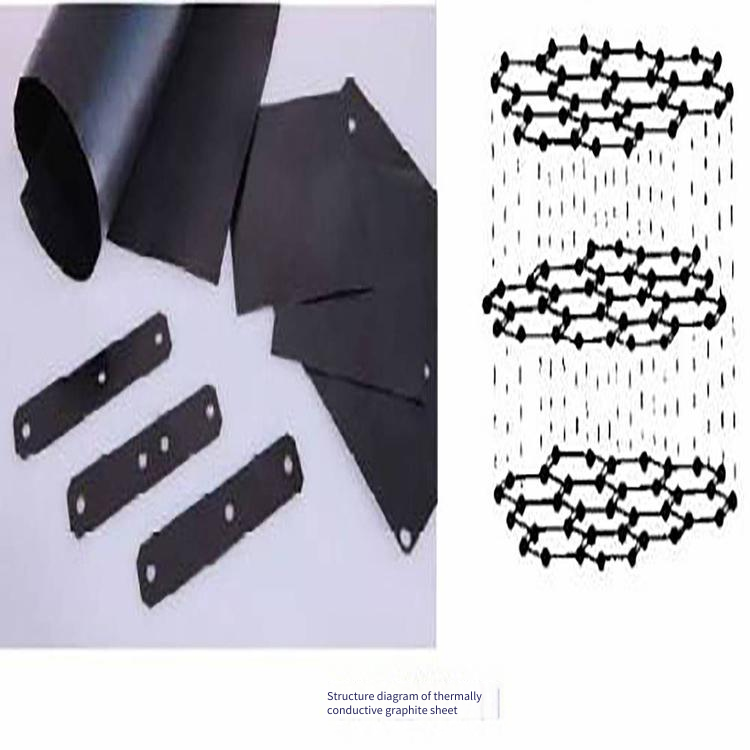

The thermal conductive graphite sheet is made of natural graphite. It has high thermal conductivity, is easy to install, flexible, and compressible. It can be provided in coated (if insulation is required) and uncoated forms, and can also be edge-wrapped. The temperature range of application is from -40 to 400℃ (in an inert environment). It has no gas or liquid permeability, and the graphite layer does not age or become brittle. It is suitable for most chemical media and has a wide range of applications, such as heat conduction in integrated circuits, high-power density electronic devices, computers, and electronic instruments. It has good market prospects in the mobile phone, computer, and electronics industries.
3. Product General Parameters
Characteristic Unit Natural Graphite Sheet GJC-GTF030 GJC-GTF050 GJC-GTF070 GJC-GTF100 GJC-GTF150 Thickness mm 0.03 0.05 0.07 0.1 0.15 Color lVisua Black Black Black Black Black Specific Gravity g/cm3 1.78 1.78 1.78 1.78 1.78 Thermal Conductivity ASTM D547 W/M.K In-plane Direction 700 700 700 700 700 Thickness Direction 9 9 9 8 8 Temperature Resistance Range ℃ 400 400 400 400 400

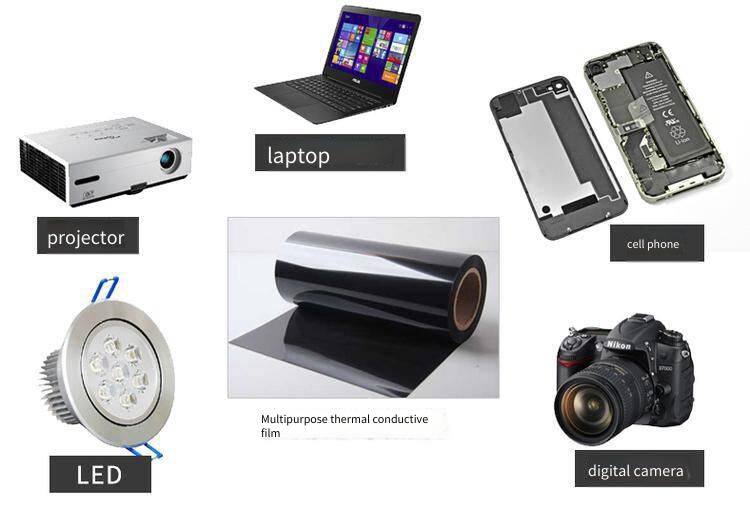

4. Product Uses and Applications
. Mobile Phones
. Computers, Laptops
. Digital Cameras
. Optical Modules
. Semiconductor Electric Devices
. LED Lighting

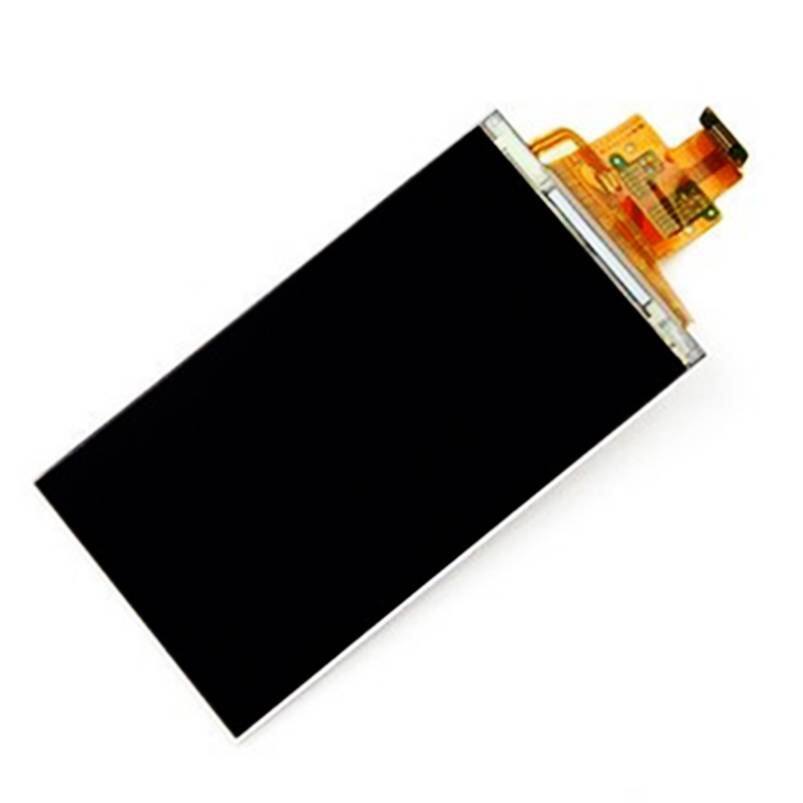

. LCD-TV/PDP Flat Panel Displays
. Heat conduction in integrated circuits, high-power density electronic devices, computers, and electronic instruments

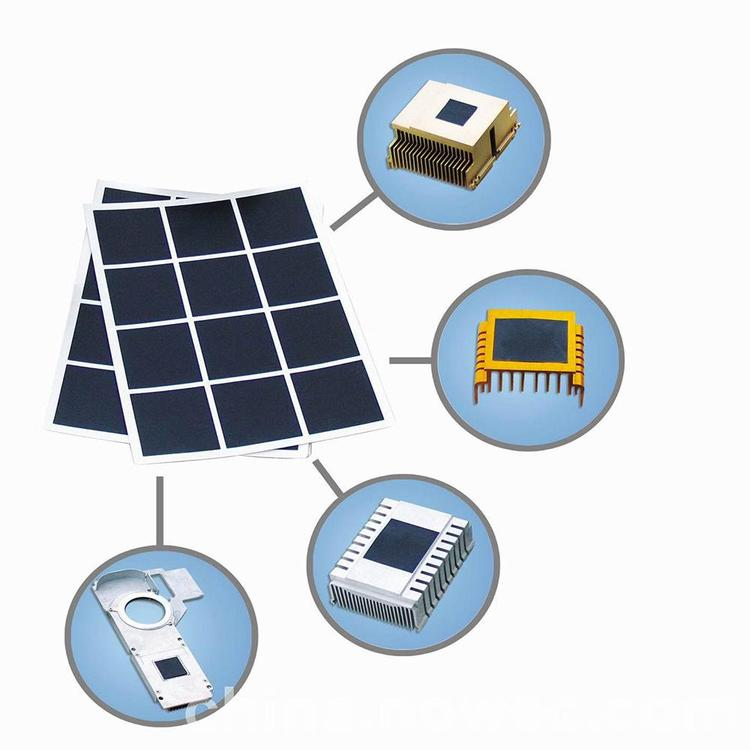

Application in chip heat dissipation components
5. Product Physical Image Shooting

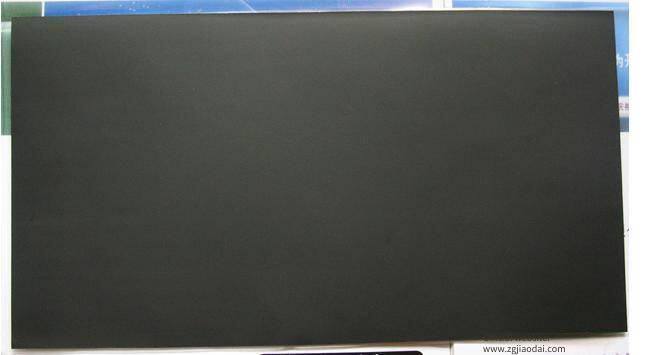

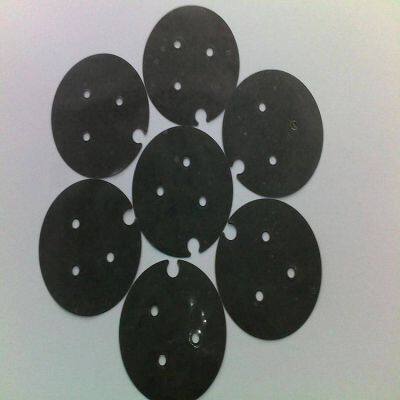

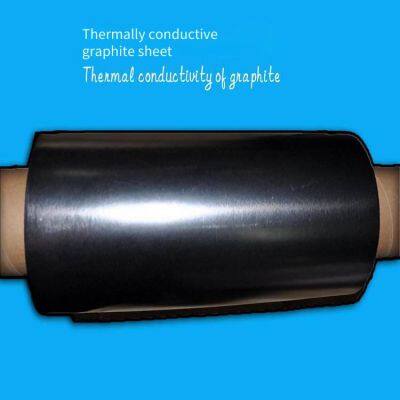

Thermal Conductive Graphite Sheets

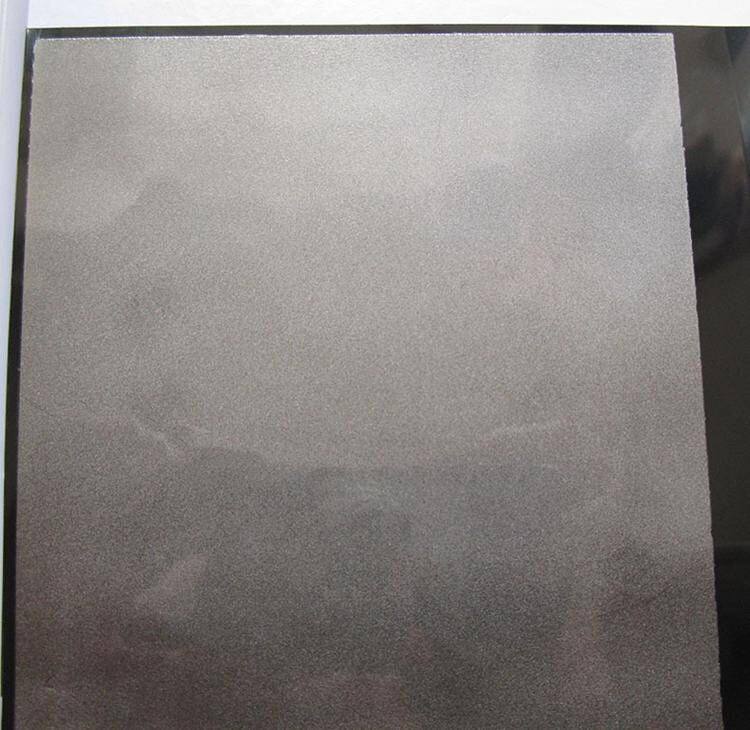

Natural Graphite Sheets

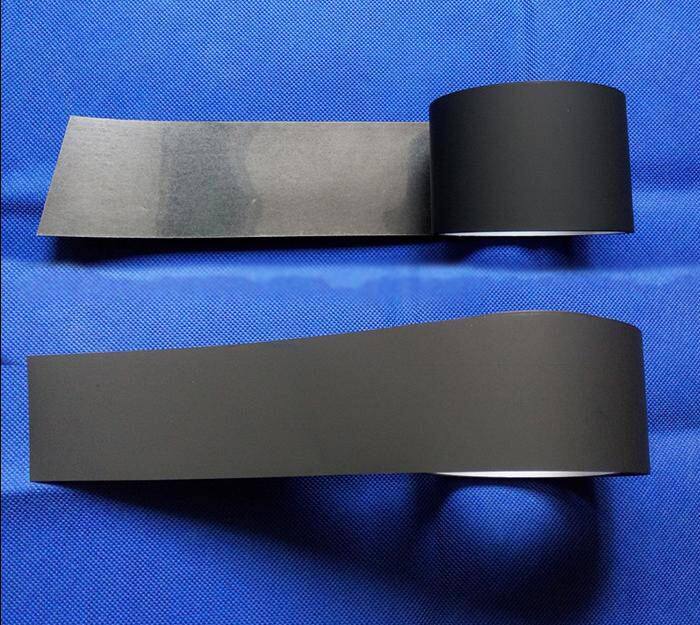

Graphite Sheets Coated with Matt Black Film
6. Remarks
Self-owned brand: Jinxincheng
