Ok. This is the technical parameters and product description of the Siemens LMV52.200B2 program controller, presented in paragraph format.
Product Overview

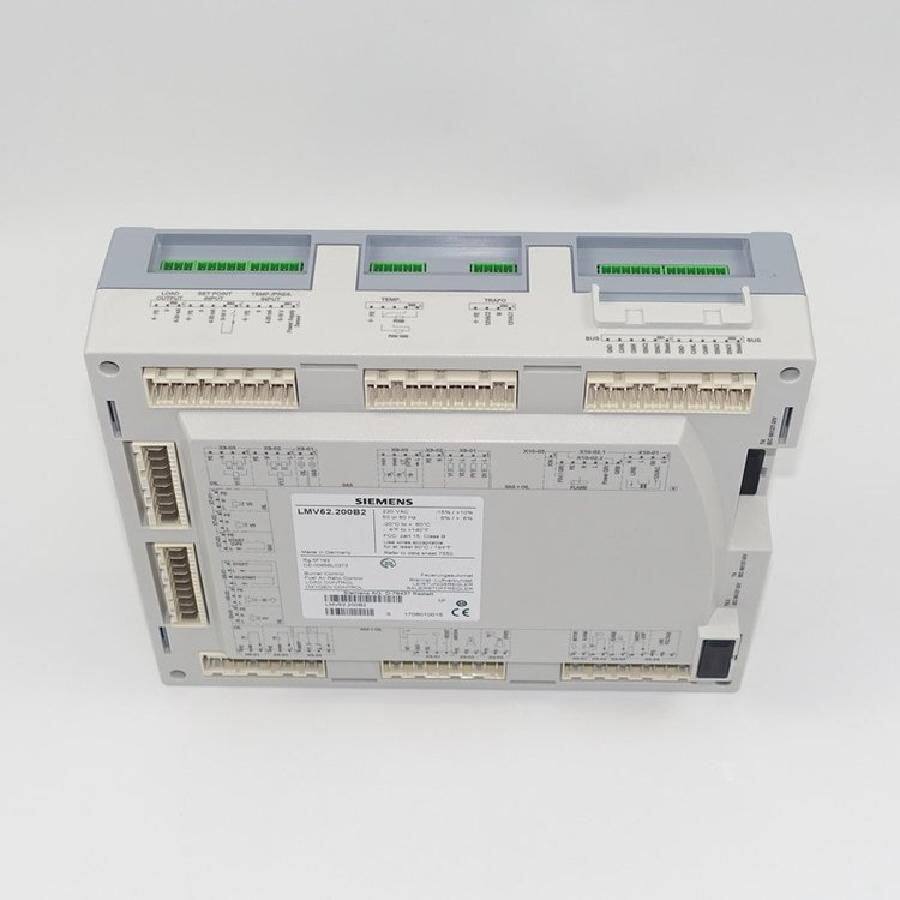

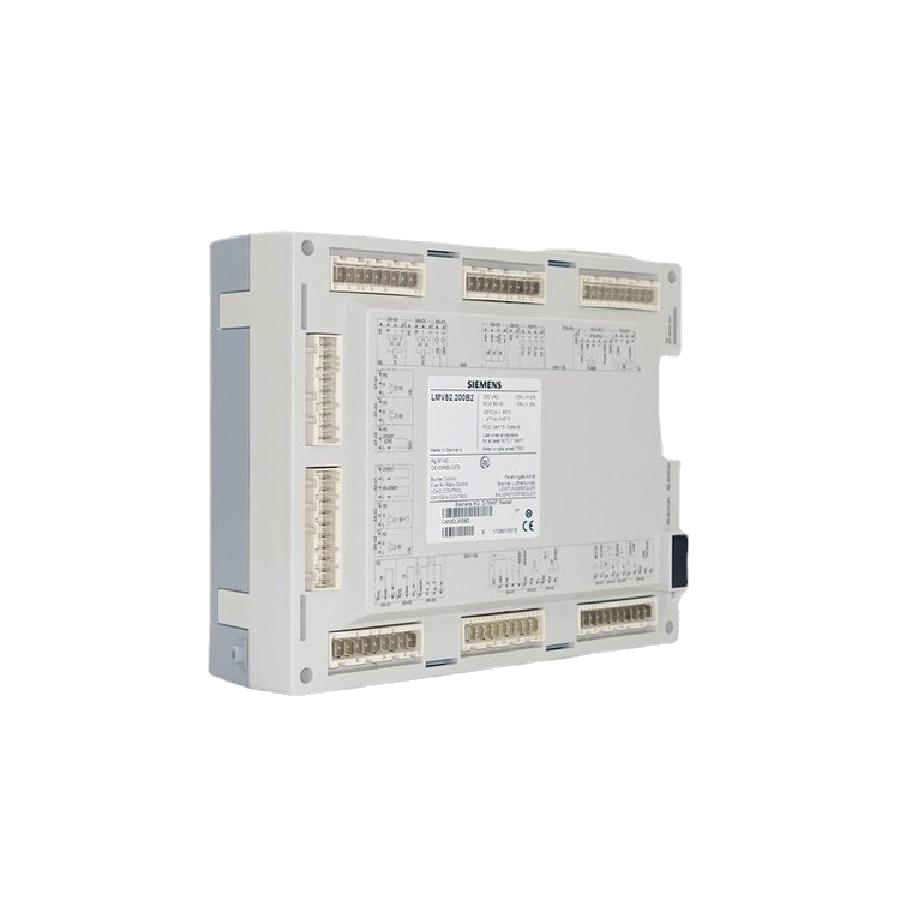

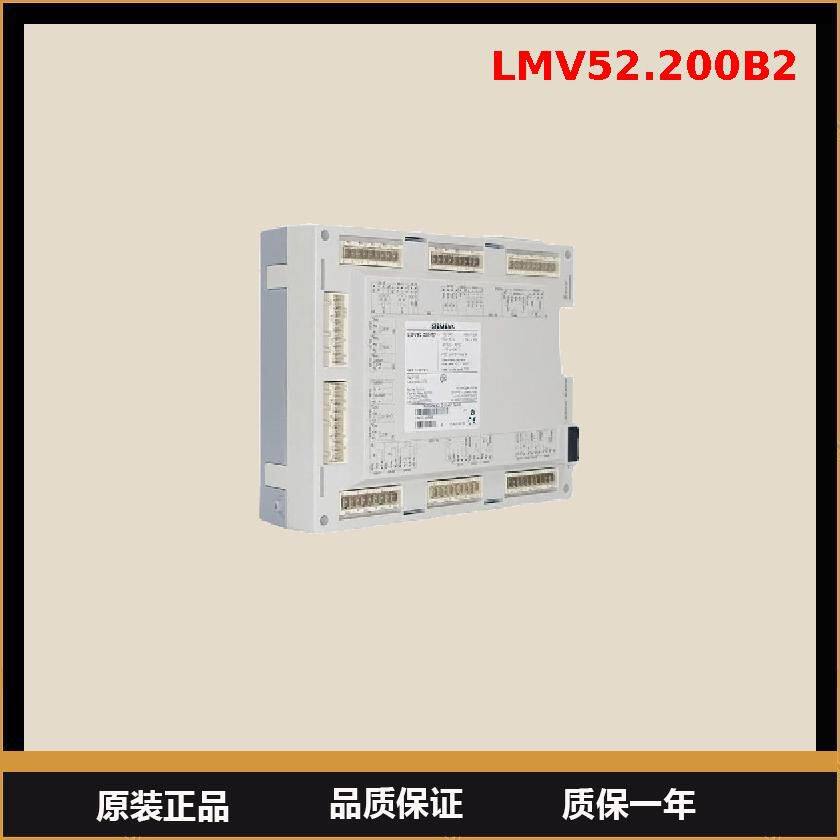

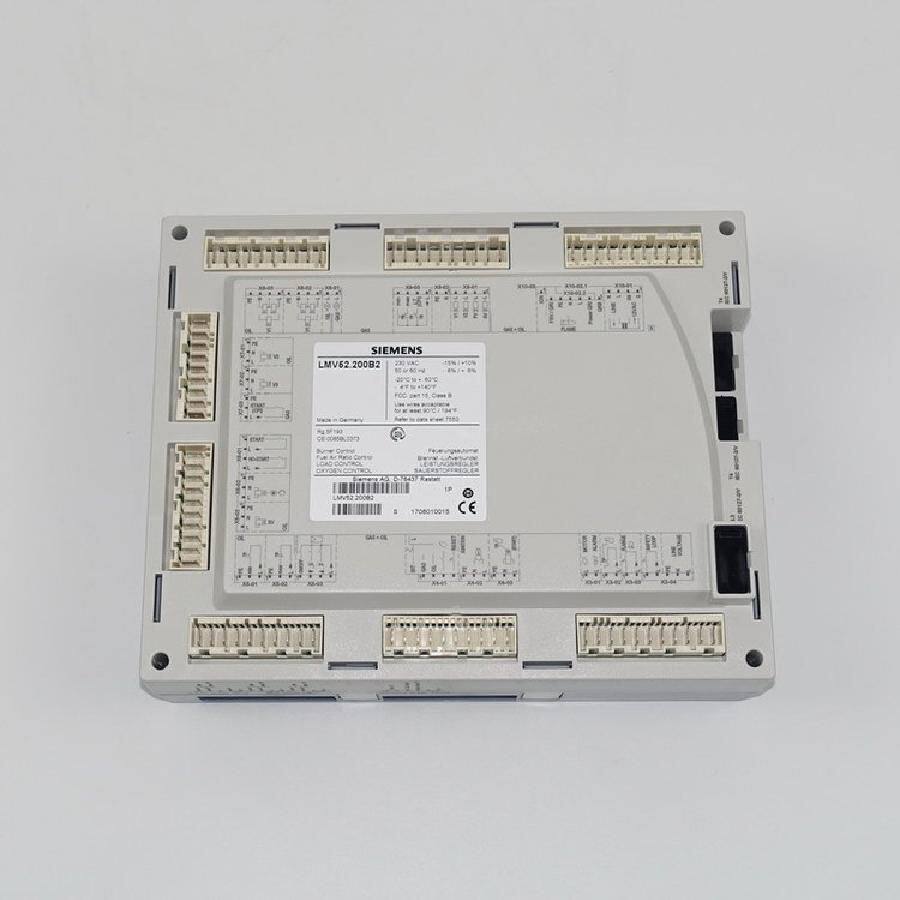

The Siemens LMV52.200B2 is an advanced electronic air-fuel ratio combustion control manager, belonging to the core model of the Siemens LMV5 series of combustion managers. It is specifically designed for industrial combustion systems that require precise proportion regulation of fuel and air, and is widely used in commercial hot water/steam boilers, hot air blowers, and various industrial process heating equipment. This controller integrates ignition program control, flame monitoring, load regulation and air-fuel ratio control. Through its precise servo motor drive system, it ensures that the burner maintains efficient, stable and clean combustion throughout the entire load range, thereby significantly improving equipment efficiency, reducing fuel consumption and minimizing harmful emissions such as nitrogen oxides (NOx).
Core Functions and Features
The core of the LMV52.200B2 lies in its "electronic air-fuel ratio control" function. It synchronously and precisely adjusts the opening degree of the gas valve and the air damper according to the actual heat load demand through the built-in intelligent algorithm. This synchronous regulation ensures that at any firepower stage, fuel and air can be mixed in the optimal ratio for combustion, avoiding thermal efficiency loss caused by excessive air or incomplete combustion and pollution due to excessive fuel. The controller is equipped with complete automatic diagnosis and safety protection functions, and can continuously monitor the flame status, system pressure and various external interlock signals. Once any fault (such as ignition failure, stalling, actuator failure, etc.) is detected during startup or operation, it will immediately enter a safe state and cut off the fuel supply. At the same time, it provides a clear fault code through its LED indicator light or remote communication interface, which greatly facilitates maintenance and repair work.
Technical parameters
** * Power supply voltage ** : Typically 100-240V AC, 50/60Hz, with wide voltage adaptability.
** * Control output ** : Drive two or more servo motors to control the gas valve and damper. The typical control signal of a servo motor is 0... 10V DC or 4... 20mA.
** * Flame Signal detection: ** Flame monitoring is carried out using ionization electrodes or ultraviolet (UV) flame sensors, which can accurately distinguish between real and false fire signals, ensuring safety.
** * Programming and Display: ** Equipped with a clear LCD display and navigation buttons, it allows users to set parameters, monitor operation status and review fault information on-site. No additional dedicated programmer is required.
** Input/Output interface: **
"Analog input:
