Help CenterMicrobiology Laboratory Type 1 Ultrapure Water System Advanced Double Reverse Osmosis Water Purification System
Product Spotlights
2. Finger touch screen
3. Double stage reverse osmosis
4. Online monitor and display realtime water quality parameters
5. Circulation function to ensure water quality
Related Products
-
Large Volume Water Purifer Water Purification System Laboratory Type 1 Ultrapure Water PlantUS$ 4100 - 5800MOQ: 1 Set -
Double System Laboratory Central Water Purification System Ultrapure Water Type 1 Water PurifierUS$ 7000 - 8500MOQ: 1 Set
-
Automatic Water Purification Equipment New Energy Lithium Battery Material Industry Ultrapure Water SystemNegotiableMOQ: 1 Set
-
Intelligent Automatic Water Purification System IVD Biopharmaceuticals Purified Water EquipmentUS$ 9000 - 30000MOQ: 1 Set
-
Integrated Automatic Reverse Osmosis Water Purifier Disinfection Sterilization RO Pure Water Equipment for Hospital CSSDUS$ 8900 - 11500MOQ: 1 Set
Product Description

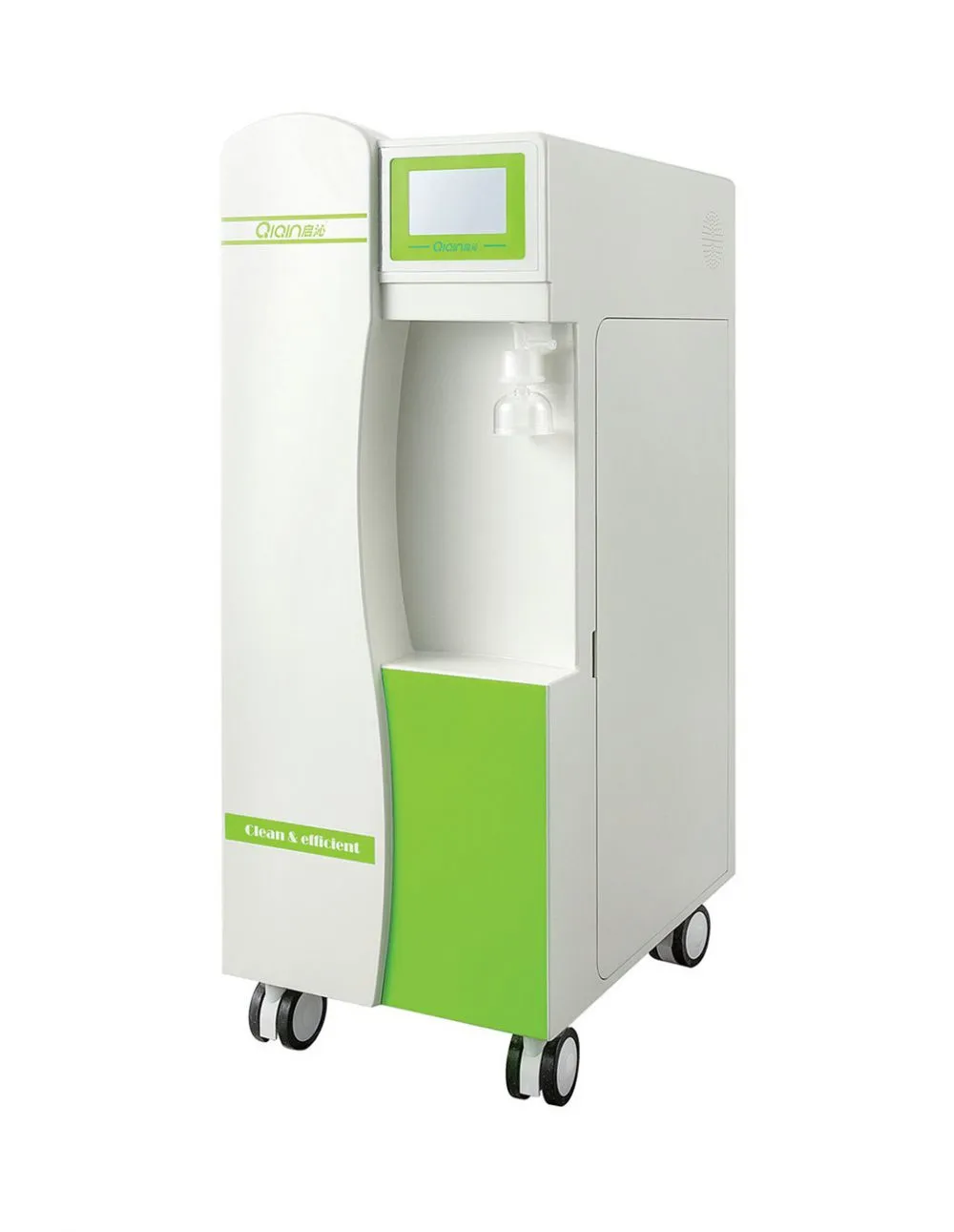

The water purification system Q-STER-G series adopts pretreatment and two-stage reverse osmosis to produce lab type III water, combined with the ultra purification module to obtain type I ultrapure water with resistivity 18.2MΩ.cm (25ºC) . The perfect process and system performance is suitable to a variety of complex water sources, and the produced water can meet various experimental requirements. It is the best choice for high-end laboratory users.
System Features and Advantages
1. ABS integrated molding engineering plastics are used to eliminate corrosion and rust.
2. The 5-inch large touch color screen operation interface displays the real-time operation status and water quality is fully monitored. It has a USB interface, which supports data copying, downloading, printing, storage. It automatically record water quality data for five years to help laboratory data statistics.
3. Online 3-channel water quality monitoring, real-time monitoring of raw water/RO water, RO water/EDI pure water, UP ultrapure water quality, and can also detect water temperature, TOC value, water tank level and other data.
4. Fully automatic RO membrane anti-scale rinsing procedure to prolong the service life of RO membrane
5. The ultrapure water circulation system can be started and shut down freely, maintaining a low level of bacterial contamination in the system.
6. Two-levels passwords to factory and user, system settings are protected by passwords to prevent unauthorized changes.
7. The lifetime of pretreatment, RO membrane, UV lamp and ultra-purification column can be set, showing the used and remaining time of consumables, and automatic reminders when consumables are due to be replaced to avoid water quality degradation.
8. Quantitative water dispense function (1-60 liters)
9. Pretreatment, RO membrane, and ultra-purification components adopt a modular independent structure, which makes system maintenance and filter element replacement more convenient, and conforms to GLP specifications.
10. Using DOW original imported RO membrane and DOW ultra-purification resin, the combination of long life of RO membrane and high-quality water quality is realized.
11. Dual-wavelength (185nm&254nm) UV lamp assembly (imported lamp) can effectively sterilize, reduce TOC, and enhance the scope of application of the system.
12. 5000DUF ultrafiltration assembly (original imported), effectively remove pyrogen (endotoxin), can be used for precision cell culture and IVF.
13. (0.45+0.1)um imported PES polyethersulfone composite membrane terminal sterilization filter to ensure water quality sterility.
14. QIQIN water tank is integrally molded with sanitary non-transparent plastic, top air filter, three-stage liquid level control and ultraviolet sterilization of the water tank to strictly control growth of bacteria in the water tank.
Technical Specification
| Name | Q-STER-G Ultrapure Water System | |
| Model | Q-STER-G10/20/40/60-2RDI | Q-STER-G10/20/40/60-2RDV |
| Water production capacity | 10L/Hr, 20L/Hr, 40L/Hr, 60L/Hr | 10L/Hr, 20L/Hr, 40L/Hr, 60L/Hr |
| Feed water requirements | Municipal tap potable water, water pressure 0.1-0.4MPa, water temperature 5-45ºC, TDS |
|
| Type 3 water quality | ≤ 5μS/cm at 25ºC ( double stage reverse osmosis) | |
| Type 1 Ultrapure water quality | Resistivity: 18.25MΩ.cm at 25ºC online monitoring Particle ≤ 1 /ml Bacteria ≤ 1 cfu/ml Heavy metal ion ≤ 0.1ppb TOC ≤ 3ppb |
Resistivity: 18.25MΩ.cm at 25ºC online monitoring Bacteria ≤ 0.01 cfu/ml Heavy metal ion ≤ 0.1ppb Pyrogen ≤ 0.001EU/ml TOC ≤ 3ppb RNase ≤ 1pg/ml DNase ≤ 5pg/ml |
| UV sterilization | N/A | 185NM / 254NM |
| Water storage tank | 60L | 60L |
| Typical Application | AAS, AES, IC, MC, ICP, HPLC, Electrochemical interface studies, In vitro fertilization | IVF, PCR, ICP-MS, HPLC, Electrochemical interface studies, Plant and animal cell culture, Genetic studies |
| Size of machine | 10-20L/H: 530*350*500mm 40-60L/H: 700*520*1300mm |
|
| Electricity Power | AC 220V 50Hz 100-600W | |
| Weight | 10-20L/H: 35KG 40-60L/H: 60KG |
Company Profile
Hunan QiQin Environmental Protection Technology Co., Ltd is a Chinese high-tech enterprise, which is the professional and competitive manufacturer of water treatment equipments with strong technical capability and more than 15 years experiences in water treatment industry. We take pride in supplying diversified products including: deionized water plant, ultrapure water system, purified water system, water purification system and waste water treatment system.
Typical applications of our products are in laboratories, hospitals, industrial plants such as bio-pharmaceuticals, semiconductor, electronics, chemicals, etc.
Based on more than 6000 clients we have served, our team are very professional in providing comprehensive solutions of all kinds of water treatment. We focus on effective technical supports, high quality products and reliable service to guarantee clients' water needs in experiment, research, diagnosis and production.
QIQIN | An excellent Chinese brand
15+ years experiences,
6000+ clients,
ISO and CE certification,
Facility: 2000 square meters
Markets: China, Southeast Asia, Europe, North America, South America, Africa.
Products range:
sewage (wastewater) treatment equipment,
ultra-pure water system,
purified water system,
overall water supply system in hospital,
water recycling,
pipe network construction
