EN795 anchorage type horizontal flexiable lifeline system used for metal roof safety
Cablestop SL Horizontal lifeline system
Our independently developed Cablestop series horizontal lifeline system is divided into SL single steel cable and DL double steel cable installation methods, which can adapt to different types of horizontal mobile environments for installation and use. Widely used in various application environments such as hydropower stations, construction, maintenance of train tracks, equipment maintenance, loading and unloading canopies, and industrial roofs.
FEATURES AT A GLANCE

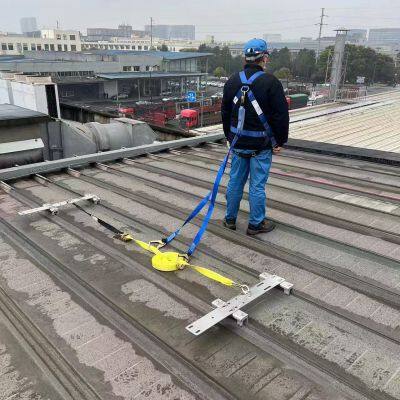

When two people on the lifeline meet, they can quickly cross over without disconnecting either connection, which minimizes the risk of falling. Within the entire range of the lifeline, there is no need to unhook for full passage.
Patent number: ZL201821026896.0
Installation instructions

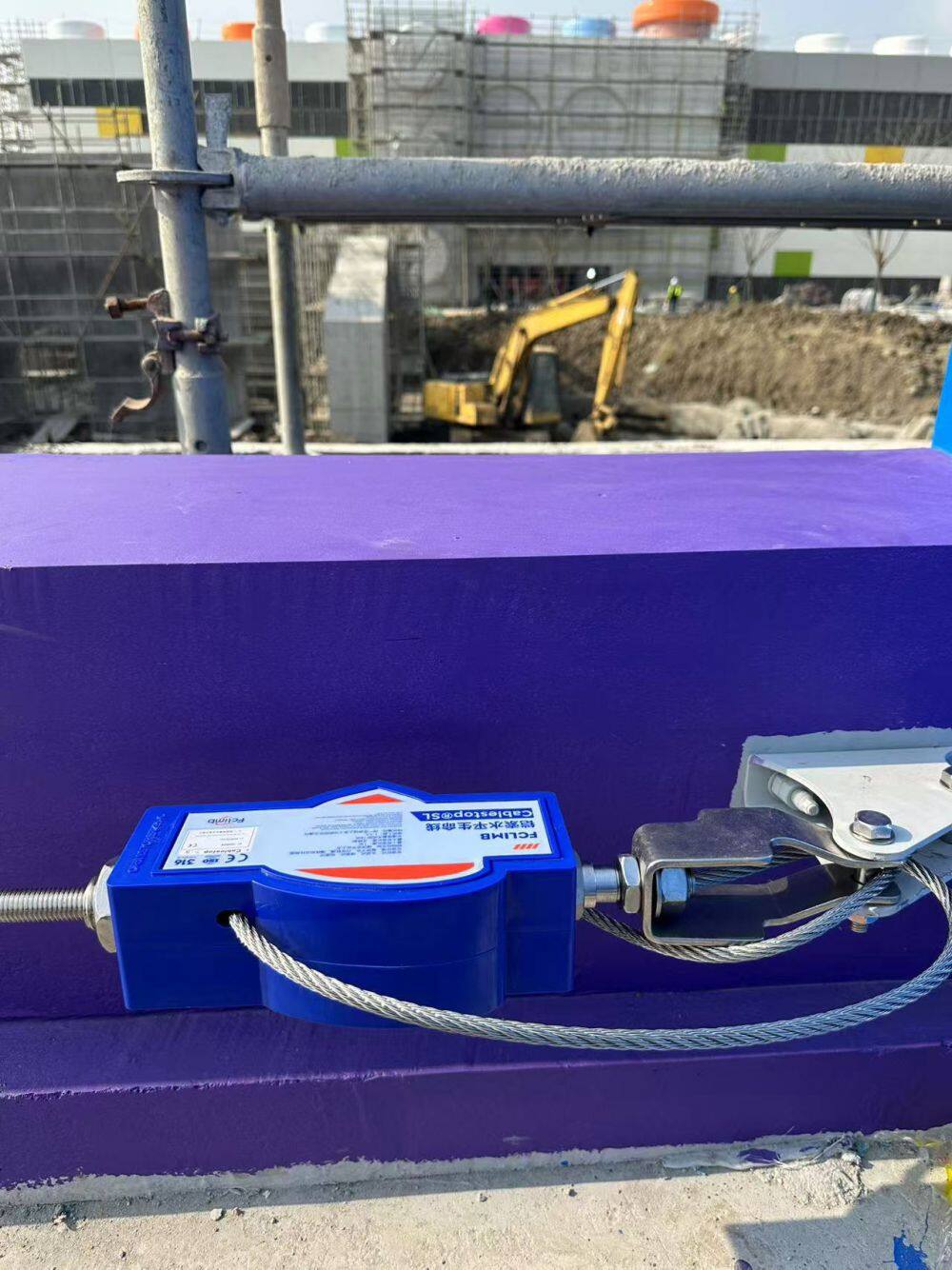

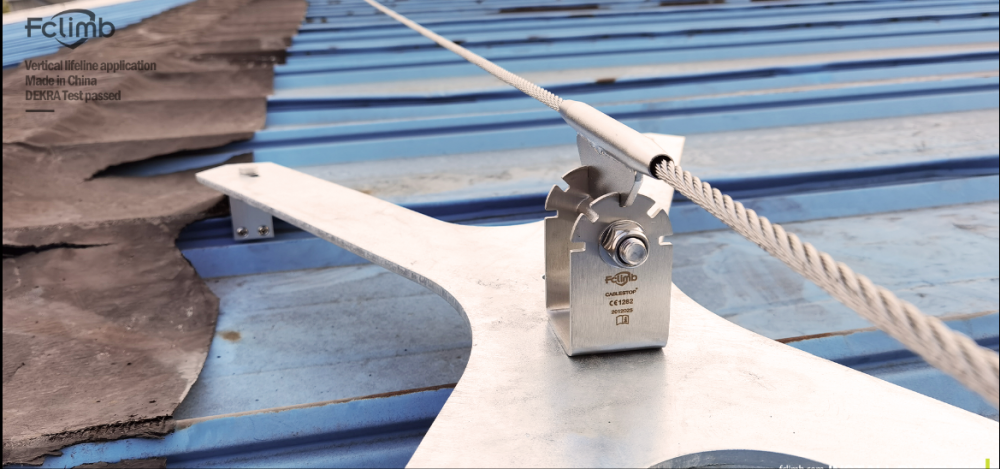

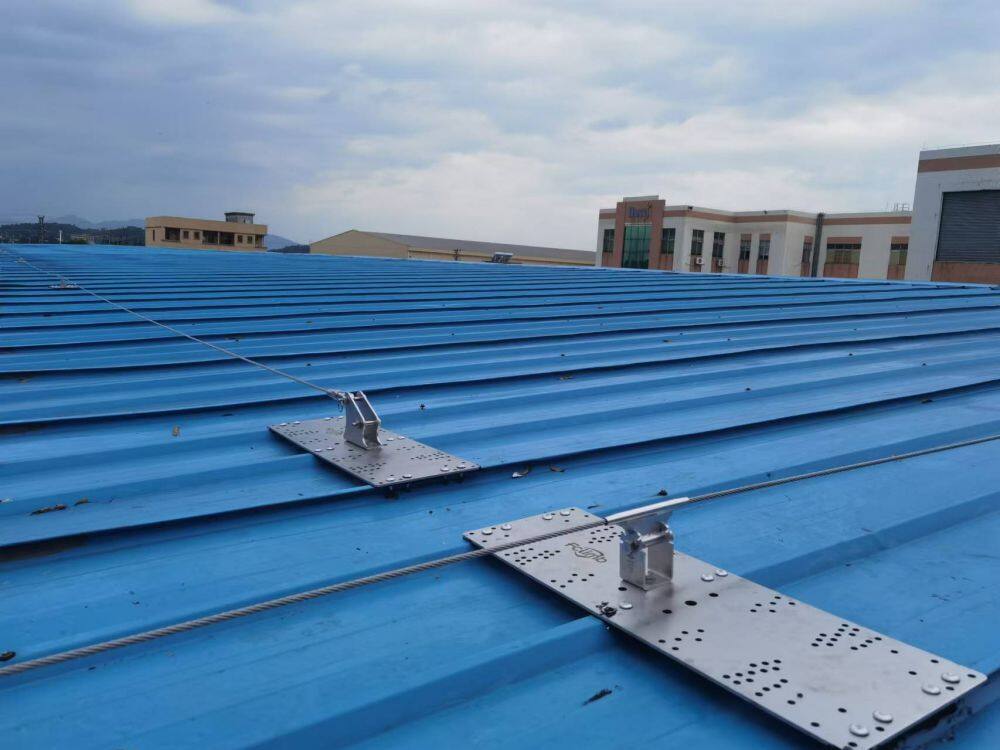

The main structure of the SL horizontal lifeline diagram mainly consists of a fixed base at the end, a steel cable tensioning device, an energy absorber, a middle support seat, and a steel cable connector. Different environments can use different methods to fix the base, for example, we can pre drill holes on concrete walls and then fix the base with chemical bolts. If installed on the roof, we can configure corresponding fixed fixtures or special customized fixtures according to your roof requirements. You can contact our customer service to discuss specific customization needs.
Move slider

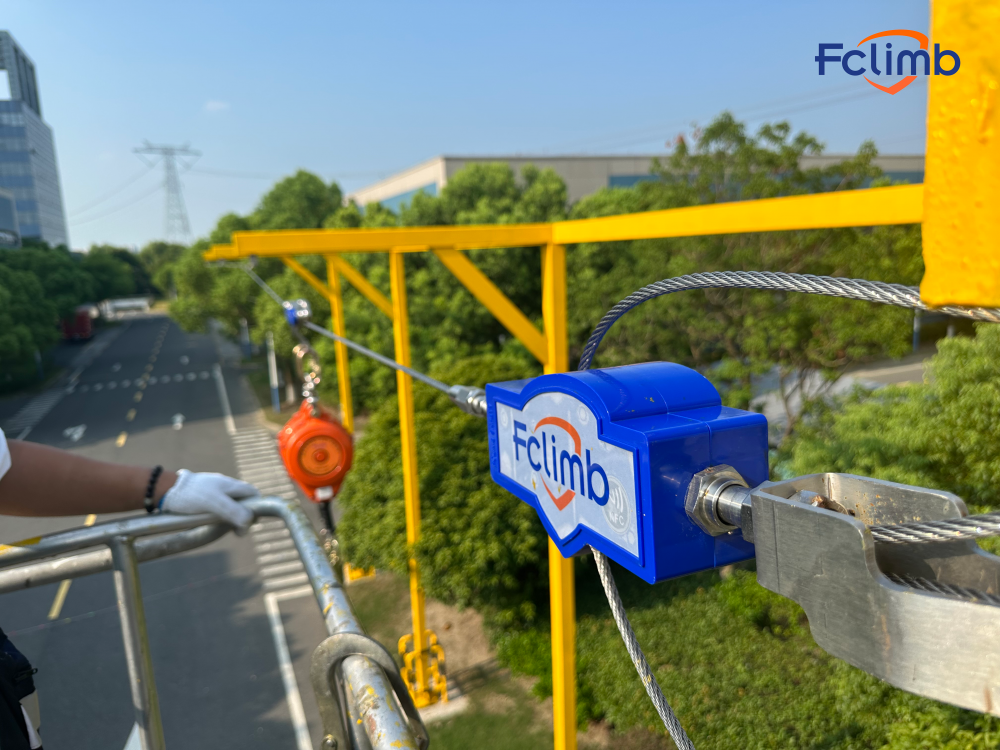

Used to connect workers to lifelines, without the need for decoupling during the entire movement, supporting cross traffic.
No |
Item |
Data |
||
1 |
Model |
Cablestop SL |
||
2 |
Bearing |
100KG |
||
3 |
Falling impact force |
≤6KN |
||
4 |
Material quality |
Stainless steel |
||
5 |
Length |
10M |
||
6 |
Number of users |
6 |
||
7 |
Standards |
CE ; EN353-1 |
||
8 |
Address |
Shanghai |
PRODUCT CONFIGURATION
