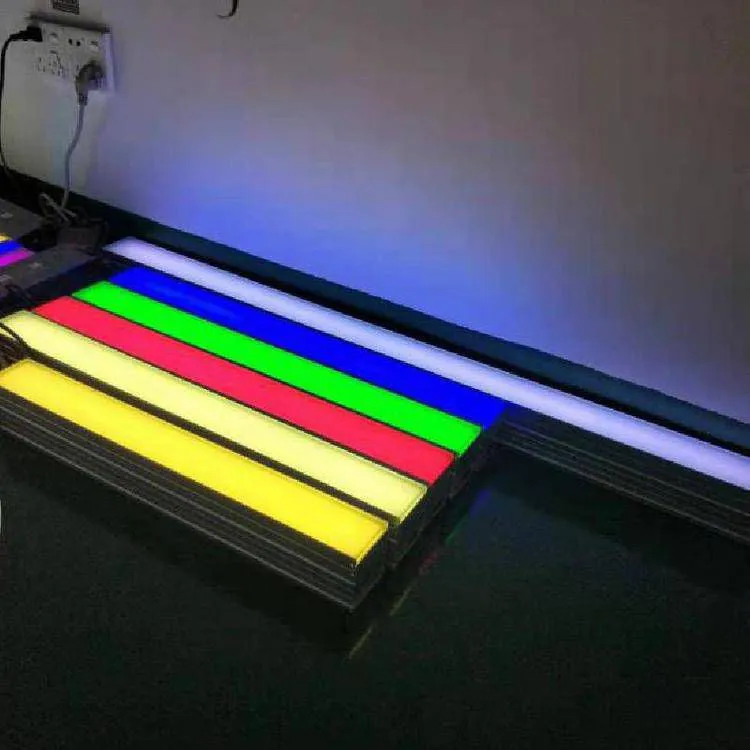

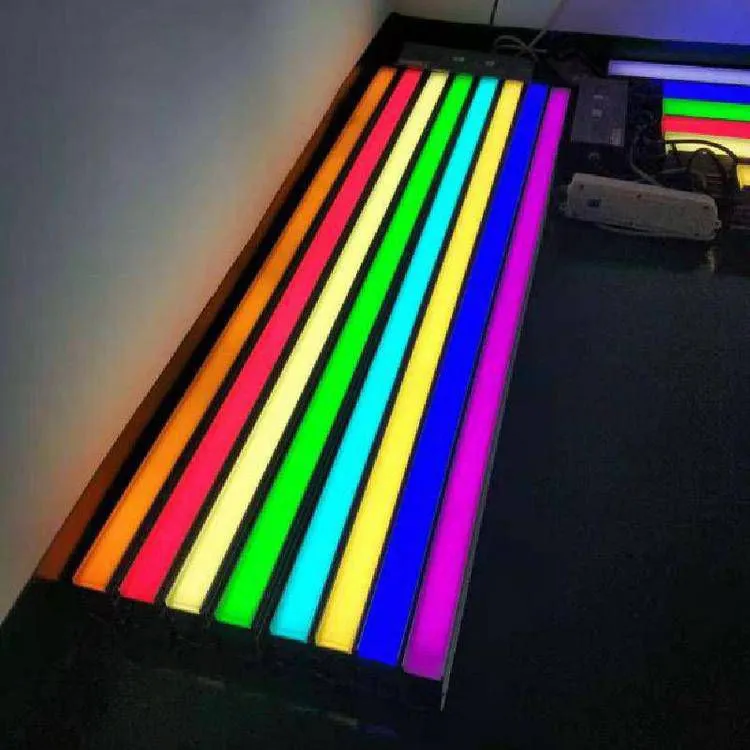

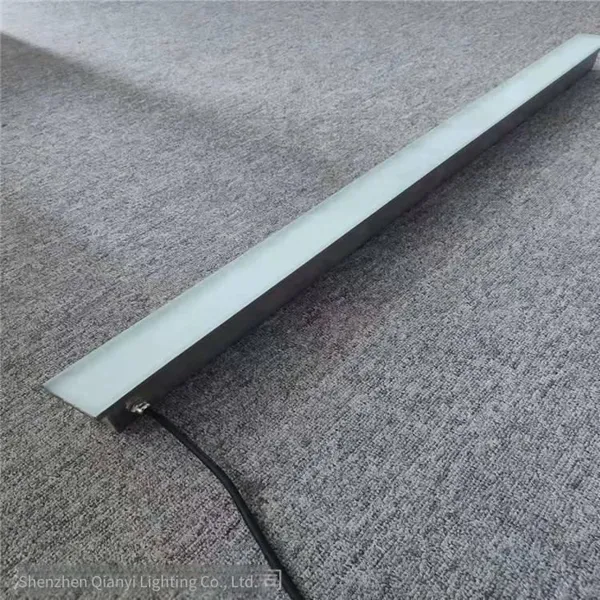

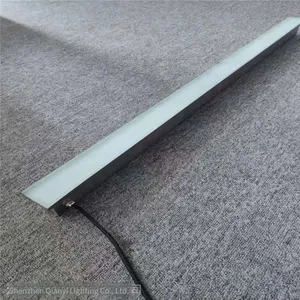

1、LED Line In-Ground Lights Product Introduction
LED Line In-Ground Lights are high-tech products specially designed for commercial squares, streets, and plazas. Multiple lights can be cascaded to form contour edges, line indicators, landscape lighting, etc. They are composed of three primary colors (R, G, B), featuring bright and charming colors, capable of displaying over 60,000 colors. Multiple lights can be cascaded to achieve gradient, jump, chase, and flowing water effects. Digital lights can play colorful and video effects. The control method uses the SDMX512 control method independently developed by Shenzhen Qianyi Lighting Co., Ltd., which breaks the limitation of the number of control points in the DMX512 control method and overcomes the deficiencies of RS-485 communication. It is a control system specially developed for LED Line In-Ground Lights.
2、LED Line In-Ground Lights Product Features
The lamp body is made of high-strength aluminum material, with anti-aging electrostatic powder coating on the surface, featuring self-cleaning and strong anti-corrosion properties.
The mask uses a highly tempered glass light-emitting cover, which is impact-resistant (8 - 15MM optional).
It uses 5050 SMD LED light sources, with large chips, high brightness, long lifespan, and good stability, achieving low investment and high returns.
It can be controlled by the SDMX512 system, with colorful, flowing, and dreamy effects.
It is environmentally friendly, with a cold light source design, no thermal radiation, no harm to eyes and skin, and does not contain lead and other polluting elements, realizing a truly green and high-tech product. The humanized structural design makes the installation and maintenance of the lights easier, suitable for various application scenarios. The lamp design uses an aluminum alloy shell and embedded parts for sufficient heat dissipation, combined with the face cover, to achieve a lower outdoor operating temperature. The product uses low-voltage power supply to reduce accidents.
Product Parameters:
(1) Lamp body parameters:
Number of LEDs: 60 pieces/M (5050 SMD light sources) optional
Voltage: DC24V
Power: 15W/M
Pixels per meter: 10 segments (10R + 10B + 10G) optional
Driving method: Low-voltage static constant current source drive, making the lamp have a long and durable lifespan.
Shell size: W30×L1000, W52×L1000, W90×L1000, W110×L1000 (optional)
Shell material: Extruded aluminum shell
End cap material: Die-cast aluminum plug
Embedded part material: Extruded aluminum embedded part
Protection level: IP68
Insulation level: CLASS II
Color range: 256-level grayscale colorful transformation
(2) Light source parameters:
Light source package: 5050 SMD LED light source
Light source power: Single power 0.25W/piece
Luminous brightness: Red: >650mcd, Green: >1500mcd, Blue: >400mcd
Luminous angle: 120 degrees
Number of light sources: 48, 60, 72, 96 pieces/bar
Light source color: RGB full color, white, yellow, red, green, blue, pink and other colors are optional
Light source lifespan: >50000 hours
Light decay: Warranty period: 2 years
Instructions:
1) Internal control change: With an internal control design, the lamp can automatically change seven colors when directly powered.

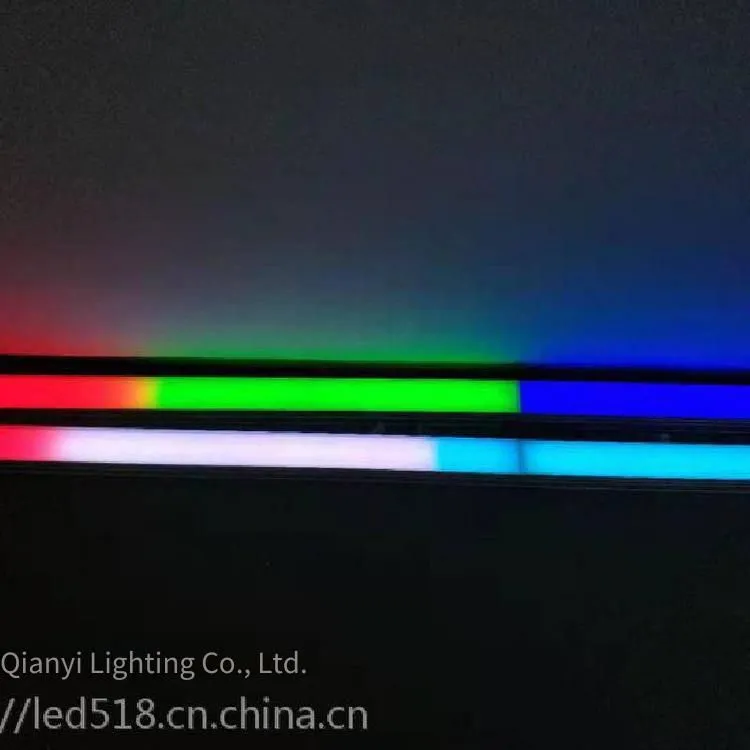

2) External control change: With an external control design, the lamp uses an external controller to achieve colorful changes. Each pixel can be controlled through data. Multiple cascaded lamps can display text, patterns and other changing effects.
3) Single color constant light: With a single color design, the lamp can stay constantly lit when directly powered.
