The LED floor tile light strip is a product composed of a 1.5mm thick stainless steel plate-formed shell and a 12mm thick tempered glass. It features a scientific design, low power consumption, and uniform light emission. Introduction to the product specification parameter table Light strip body parameters of LED floor tile light stripLight source parametersNumber of LEDs: 60 pcs/M (SMD5050)Light source package: SMD5050 SMD LEDLight source voltage: DC24VLight source power: 0.25W/pcPower: 15W/MLight-emitting angle: 120 degreesProduct model: CMC-TXDZD-6010ANumber of light sources: 60 pcs/pcDriving method: Static constant current source driveLight source color: RGB full color, white, red, green, blue are optionalShell size: W60×H50×L1000 (customizable)Light source lifespan: >50,000 hoursShell material: Stainless steel shell, tempered glass coverLight decay: |
Product overview

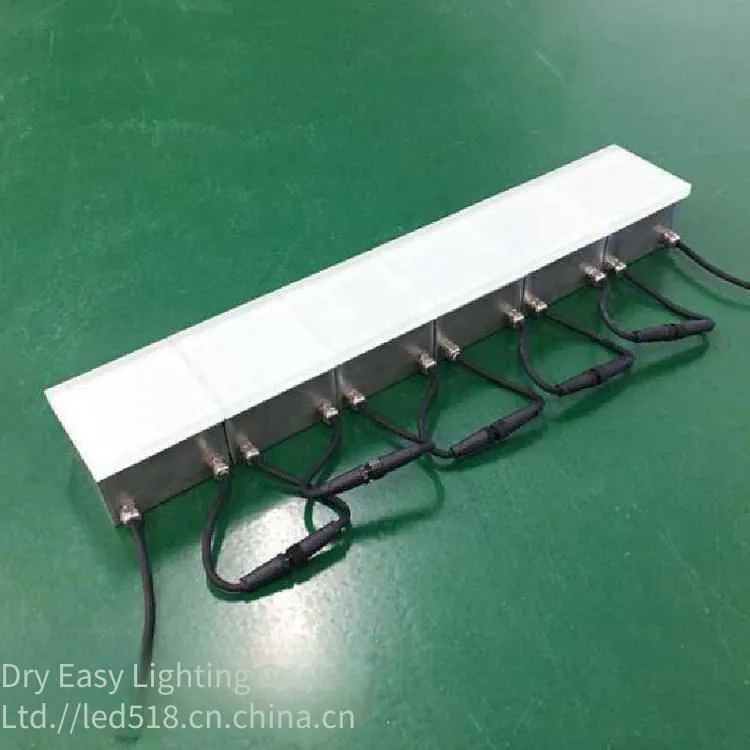

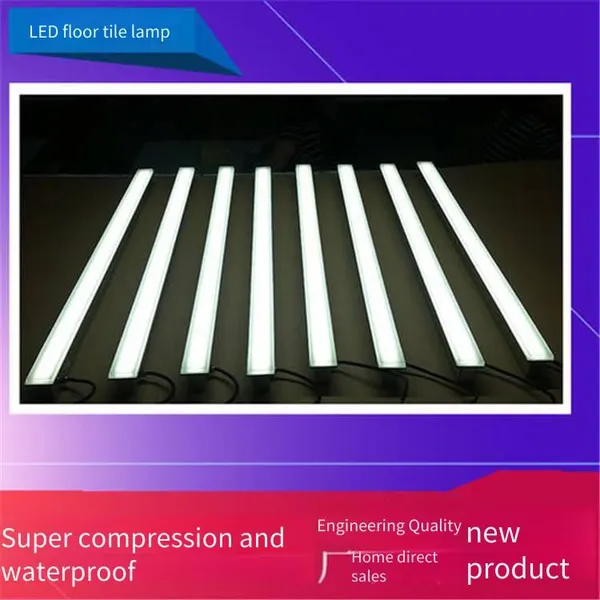

1. The LED floor tile light strip uses a small stainless steel shell, waterproof connectors, and silicone structural adhesive for sealing, with features of water resistance, dust resistance, anti-slip and anti-leakage. It has a simple shape, a small appearance, a stainless steel lamp body, and 8 - 15mm thick tempered frosted glass.
2. The LED floor tile light strip is an in-ground decorative light with a constant current drive method. Based on R, G, B light sources, it can combine into colorful lighting effects such as seven - color changes and single - color gradients. It features bright colors, small size, low power consumption, long service life, unique and elegant shape, anti - leakage and water - proof, and is loved by customers.

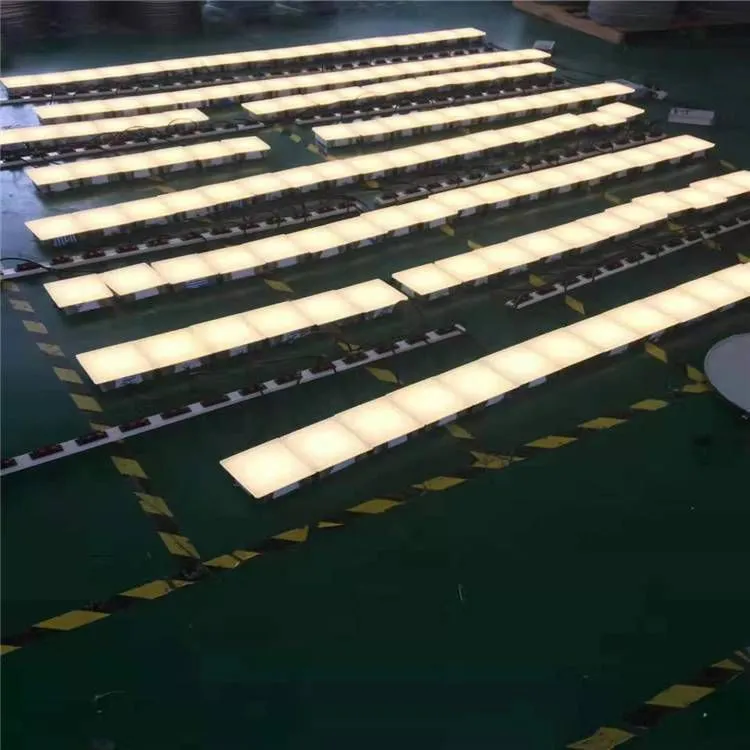

3. The LED floor tile light strip is a high - tech product specially designed for squares, streets, parks or sunken squares. Multiple lights can be cascaded to form bright and charming colorful effects. Composed of three primary colors (R, G, B), it can display more than 60,000 colors and can achieve both fantasy color and video effects.

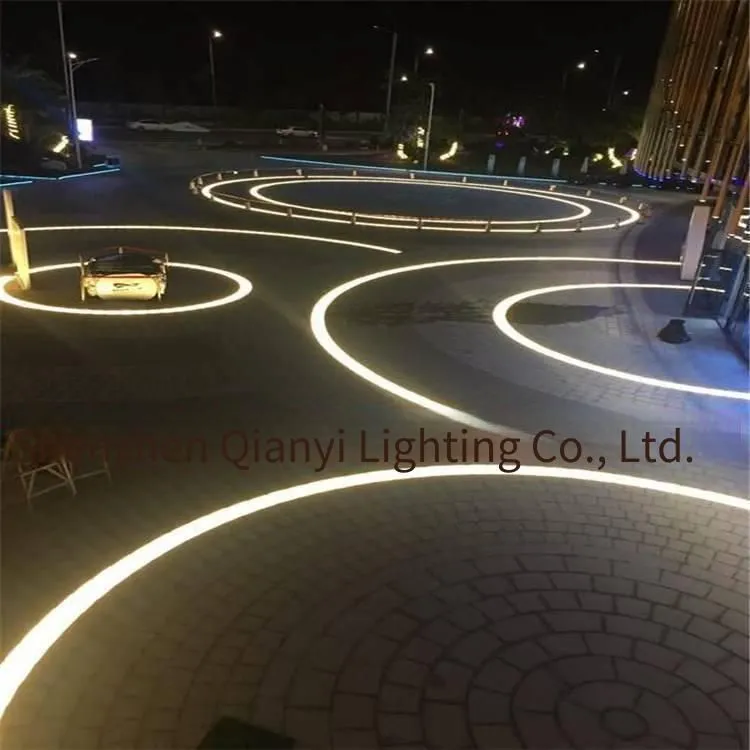

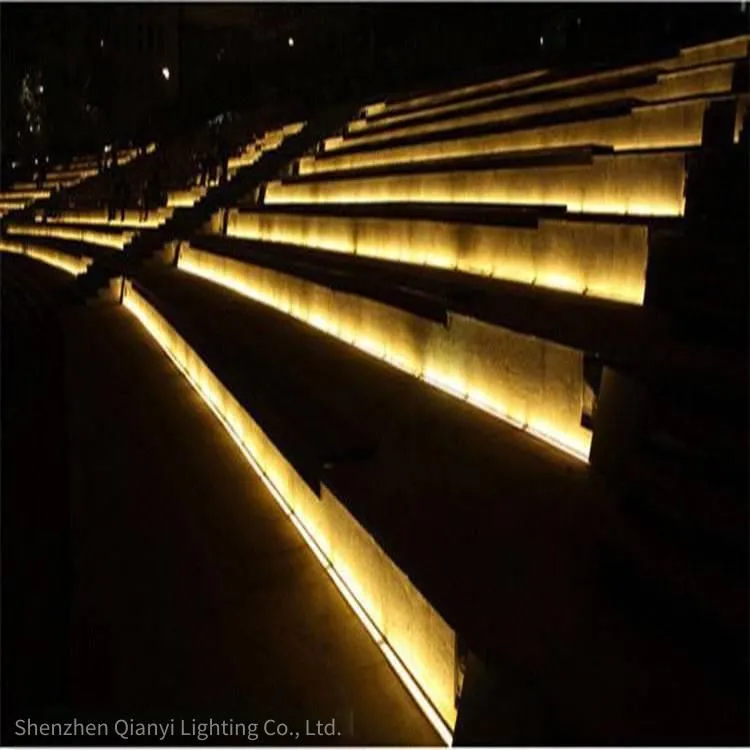

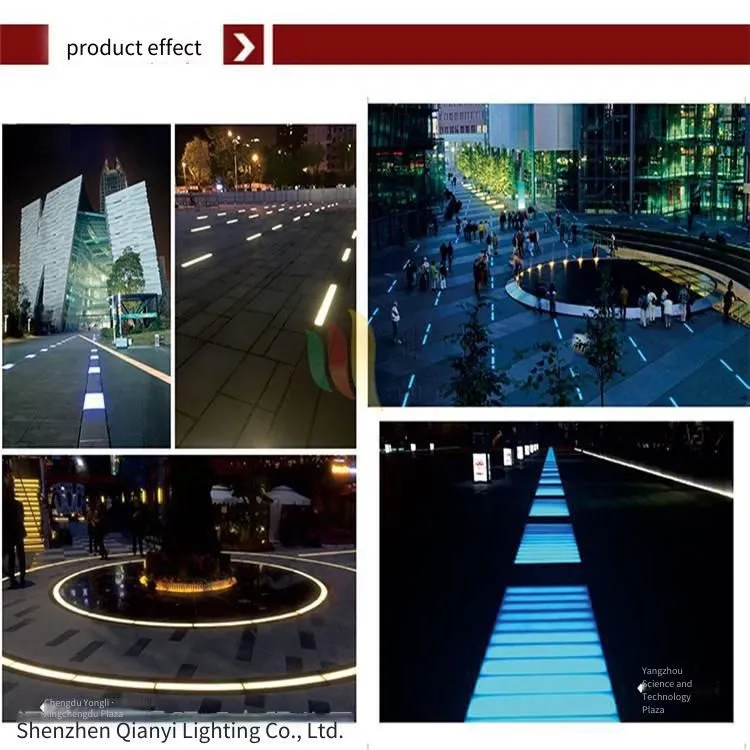

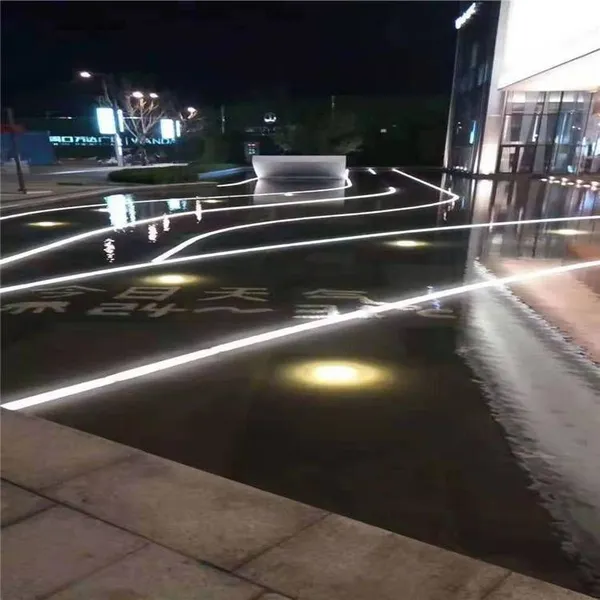

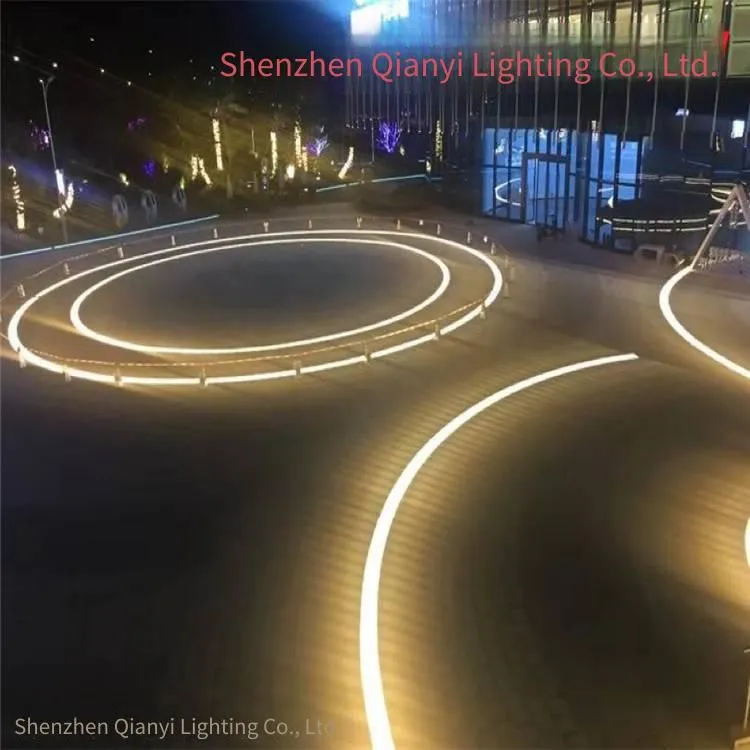

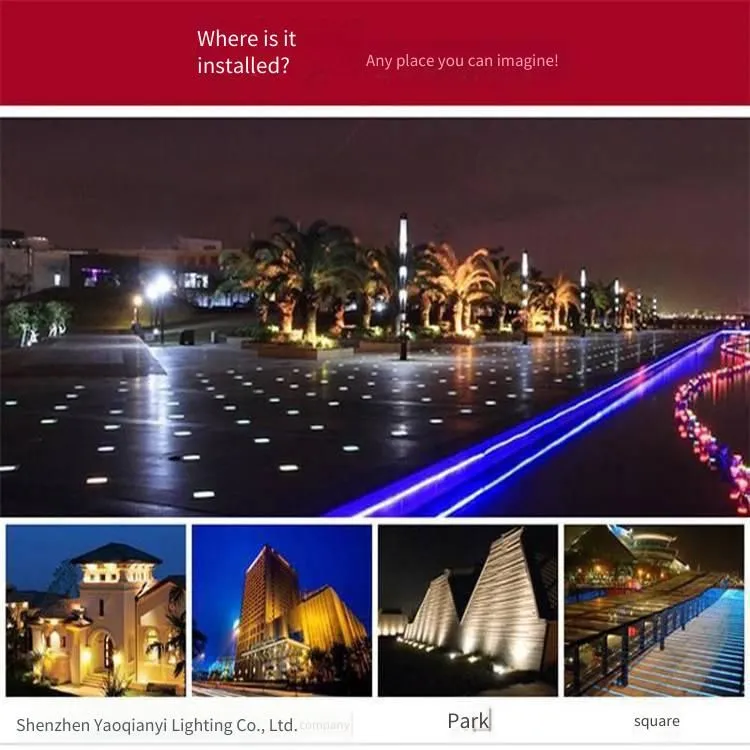

4. The LED floor tile light strip is applied to outdoor squares, commercial squares, outdoor parks, commercial streets, and road landscape lighting.
2. Instructions for LED product control
The LED controller product of Shenzhen Qianyi Lighting Co., Ltd. is a general - purpose overall color - changing power - type controller designed for LED floor tile light strips. It uses the most advanced PWM (Pulse Width Modulation) control technology and can control all four - wire three - loop (common anode) LED products. The controller can also be controlled by an RF remote control, which is not limited by direction and obstacles. It can send control commands to the controller within the effective distance and can control all color LED lights. When controlling low - power LED lights, the control quantity is calculated according to power. When controlling high - power LED lights, it provides PWM signals. Normally, one controller can control several LED floor tile light strip products.
