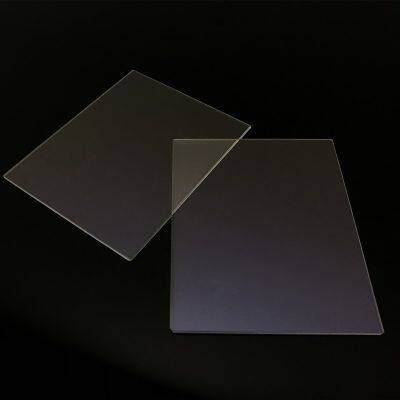

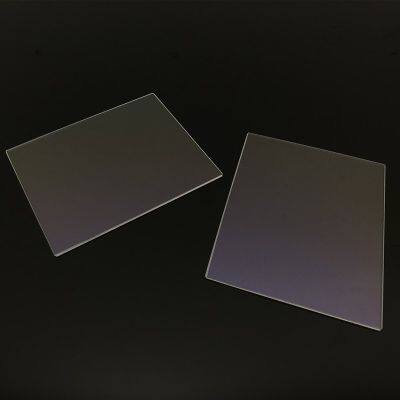

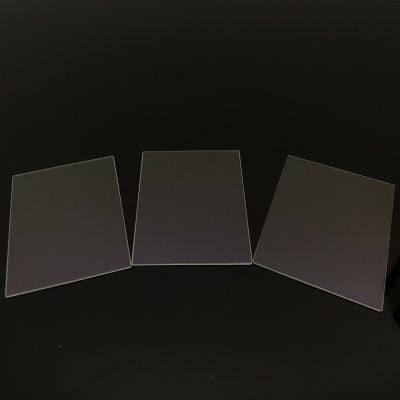

220nm Narrowband Filter Accurately Locks Deep Ultraviolet Optical Components
Product Spotlights
By using multi-layer dielectric film interference technology (such as MgF ₂, Al ₂ O3, HfO ₂ and other deep ultraviolet transparent materials), specific wavelength constructive interference can be achieved through precise control of film thickness and refractive index. The substrate is mostly fused
US$ 8
10 - 49 Units
US$ 6
50 - 99 Units
US$ 5
≥100 Units
Key Specifications
Get Latest Price
Certification:
ROHS, ISO
Shape:
Round
Usage:
Lighting, Medical, Optical, Photography, Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
20 days
Related Products
-
355nm Filter: an Ideal Optical Component for Precise UV Band Screening, Scientific Research, and Industrial TestingUS$ 7 - 12MOQ: 10 Units -
405nm Filter: a Core Optical Component for Accurately Capturing UV Visible Light Boundaries, Biological Fluorescence, and Semiconductor DetectionUS$ 6 - 8MOQ: 10 Units
-
Core Reflector Element of Gold-plated Mirror Infrared Optical SystemUS$ 10 - 20MOQ: 10 Blades
-
Sapphire Window Panel: Mohs Hardness Level 9, Corrosion and High Temperature Resistance, Preferred Material for Precision OpticsUS$ 10 - 20MOQ: 10 Blades
-
Ultra Thin Anti Reflective Coated Lenses With Low Reflectivity and High Transparency, Providing Clearer Eye ProtectionUS$ 8 - 15MOQ: 10 Blades
Certification
ROHS, ISO
Shape
Round
Usage
Lighting, Medical, Optical, Photography, Other
Thickness Range
1mm-2mm
Angle of incidence
0°
Customized
Non-Customized
Origin
China
The 220nm narrowband filter is a high-precision optical component designed specifically for the deep ultraviolet (UVC) band. Its core function is to accurately extract narrowband spectra near 220nm from a broadband light source.
Core Features
Ultra narrow bandwidth: The full width at half maximum (FWHM) is usually controlled between 2-10nm to ensure spectral purity
High transmittance: The peak transmittance can reach 20% -60%, balancing efficiency and selectivity
Deep cut-off depth: The out of band cut-off depth reaches OD4-OD6 (0.01% -0.0001%), effectively suppressing stray light
Shortwave positioning: 220nm is located in the far ultraviolet/vacuum ultraviolet transition region, with high photon energy (~5.6eV)
