Detailed Specification of Galvanized Channel Steel
1. Product Definition

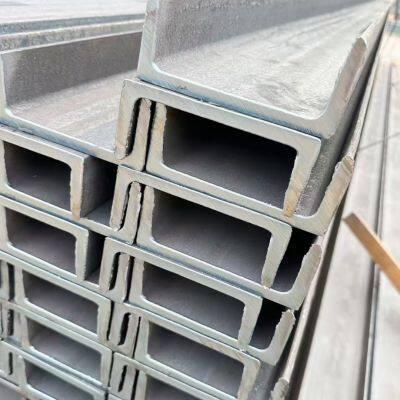

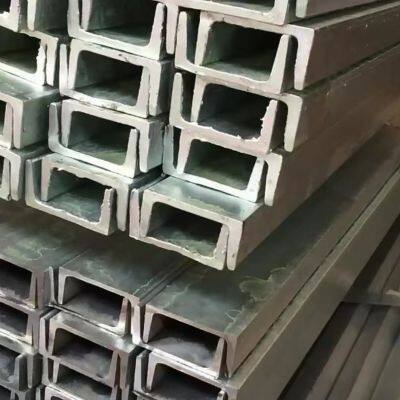

Galvanized channel steel is an anti-corrosion section steel produced by treating hot-rolled channel steel through hot-dip galvanizing (mainstream process) or electro-galvanizing. It features a C-shaped cross-section, combining excellent structural strength and long-term rust prevention performance.
2. Core Materials
- Conventional Grade: Q235B (carbon steel, cost-effective)
- High-Strength Grade: Q355B/Q345D (low-alloy steel, higher strength, suitable for heavy-load and low-temperature environments)
3. Specification Representation (National Standard GB/T 706)
Format: Model Number (Height h × Flange Width b × Web Thickness d)
Example: 10# Channel Steel = 100×48×5.3mm
- Common Specifications: 5# to 40#; models above 14# are divided into Type A & Type B, models above 25# are divided into Type A, B & C (flange width and web thickness increase progressively)
- Standard Lengths: 6m/9m/12m, customized lengths are available
4. Galvanizing Process & Performance (Hot-Dip Galvanizing as Mainstream)
- Process: Rust removal → Immersion in molten zinc at 440-460℃ → Cooling, forming a zinc-iron alloy layer and pure zinc layer
- Zinc Coating Thickness: ≥80μm (in accordance with National Standard GB/T 13912), more durable in outdoor and salt spray environments
- Core Advantages:
- ✅ Superior Anti-Corrosion: Isolates water, oxygen, acid and alkali, with a service life 3-5 times that of ordinary channel steel
- ✅ Firm Coating: Zinc-iron metallurgical bonding, wear-resistant, impact-resistant, not easy to fall off
- ✅ Good Processability: Weldable, drillable and cold bendable without damaging the coating
- ✅ Bright Appearance, No Secondary Coating Required
5. Theoretical Weight (kg/m, excluding galvanized coating)
Formula: W=0.00785×[hd+2t(b-d)+0.349(r²-r₁²)] (r=inner arc radius, r₁=end arc radius)
- 10#: 10.00kg/m
- 12#: 12.06kg/m
- 14#A: 14.53kg/m; 14#B: 16.73kg/m
- 16#A: 17.24kg/m; 16#B: 19.75kg/m
- 20#A: 22.63kg/m; 20#B: 25.77kg/m
6. Executive Standards
- Hot-rolled Channel Steel: GB/T 706-2016
- Galvanizing Coating: GB/T 13912-2002
- Acceptance Inspection: GB/T 2101-2017
7. Typical Applications
- Construction: Steel structure workshops, curtain wall keels, supports, purlins
- Power/Communication: Cable trays, iron towers, substation frameworks
- Transportation: Bridge supports, track supports, container skeletons
- Industry: Equipment racks, storage shelves, solar brackets
- Outdoor/Coastal Areas: Preferred for salt spray and humid environments
8. Packaging & Delivery

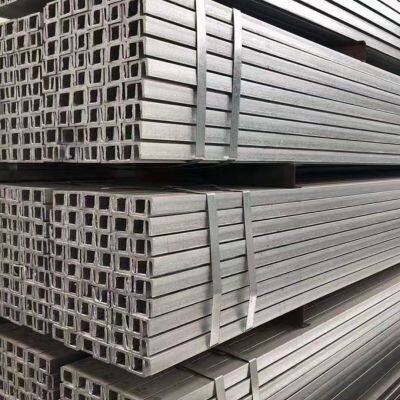

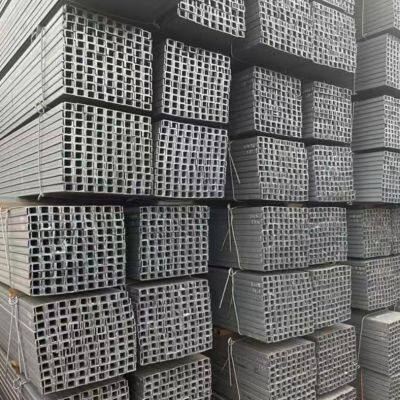

- Packaging: Bundled and labeled with specification, material, heat number and galvanizing standard
- Delivery: By theoretical weight or actual weighing; customized cutting, punching and processing services are available
