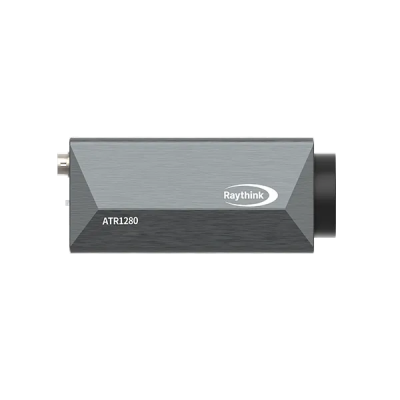

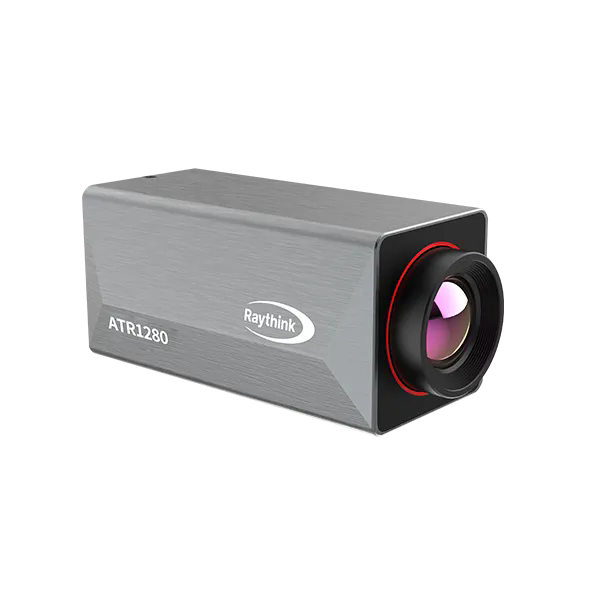

ATR1280 HD Online Thermal Camera
ATR1280 is a high-performance and high-precision electrically adjustable temperature measurement thermal imager that outputs infrared images with a resolution of 1280 x 1024.
It adopts an electric focusing scheme and supports the GigE protocol, ensuring stable operation and fast response.
Equipped with professional application software, it is an ideal choice for fields such as education, scientific research, and industrial automation.
Feature
High-Definition Images And Precise Temperature Measurement
Using an infrared detector with a resolution of up to 1280×1024, ATR1280 provides users with clearer and more detailed infrared thermal images.
High-Speed Data Transmission
Equipped with a Gigabit network interface that supports the GigE protocol, the device enables real-time transmission of temperature data, for remote monitoring and data analysis in industrial scenarios.
Wide Measurement Range And Temperature Compensation Algorithm
With a wide measurement range from -20°C to +550°C, ATR1280 is suitable for industrial scenarios with various high-temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.
Specification
| Thermal Imaging Parameters | |
|---|---|
| DetectorUncooled VOx detectorInfrared Resolution1280×1024Pixel pitch12μmSpectral Band8μm~14μmThermal Sensitivity (NETD) | |
| Temperature Measurement Function | |
| Measurement Range-20℃~+150℃,0℃~550℃Measurement Accuracy±2°C or ±2% of readings, whichever is greater.Temperature Measurement CorrectionReflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distanceMeasurement ToolSettings of measurement rules for a total of 12 points, lines, and areas Supports isotherm settingTemperature Width StretchSupport temperature width stretch | |
| Image and Video | |
| Frame Rate15HzPalettes18 color palettes including black-hot, white-hot, iron red, rainbow, etc.Thermal Image CaptureSupport thermal image capture and secondary analysisMirror ImageHorizontal/Vertical/DiagonalDigital Zoom1.0~8.0 continuous zoom (step size: 0.1) | |
| System Interface | |
| Communication interfaceRJ45, supporting Gigabit network.Network ProtocolTCP, UDP, ICMP, DHCPInterface ProtocolGigE Vision | |
| Device Specifications | |
| Operating Temperature-20℃~+60℃Power supply mode6~16V DCTypical Power Consumption4.5WDimensions70mm×63mm×143mm (19mm lens)WeightApprox. 725g (19mm lens) | |
Application Scenarios
