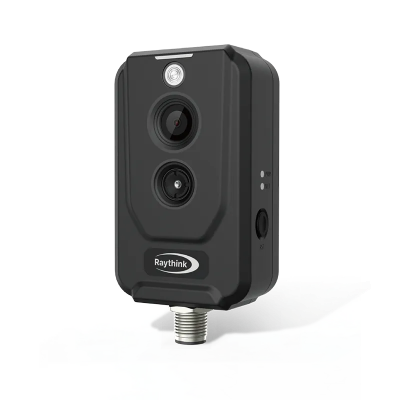

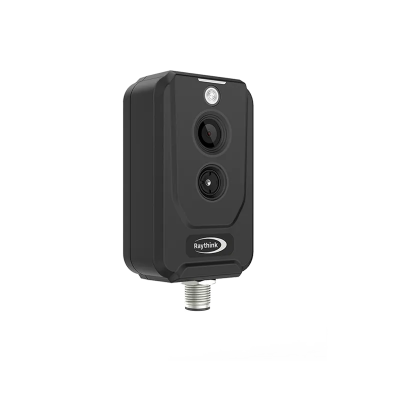

TN220 is developed based on the 256×192 WLP infrared module, providing users with high-quality images. It features a compact design with POE power supply support and flexible mounting options, including magnetic installation, ensuring simple and convenient wiring. This device offers a visualized temperature monitoring solution for confined spaces and close-distance applications in fields such as electricity, renewable energy, and industrial manufacturing.
Feature
Clear Images and Precise Temperature Measurement
256×192 infrared resolution, providing excellent imaging quality for customers
Support switching of 20 palette effects, applicable for a variety of scenarios
Support 1~25Hz adjustable frame rate, with synchronous and real-time image thermal image
Both 90° and 56° FOV specifications available
High IP Grade and Durable
High IP grade of IP67 for temperature monitoring in harsh environments
Operating temperature range of -20°C~+60°C, enhancing the temperature adaptability in confined spaces
PC and Aluminum alloy shell, solid and durable
Intelligent Algorithms and Professional Software
Support recognition algorithms for smoke and fire monitoring and regional intrusion to offer
dual security guaranteesSupport thermal image capture and historical data record, making data analysis more efficient and convenient
Support protocols such as MQTT, Modbus TCP/RTU, ONVIF and GB28181 to help integrate system solutions Provide SDK and development support to assist users for secondary development
Simple Mounting and Cost Reduction
Easy mounting via various options such as magnetic mounting,wall mounting,vertical mounting,tripod mounting
Single aviation design, POE power supply, enable users to measure temperature at a low cost
Reserve the RS485 interface and IO alarm interface for alarm linkage

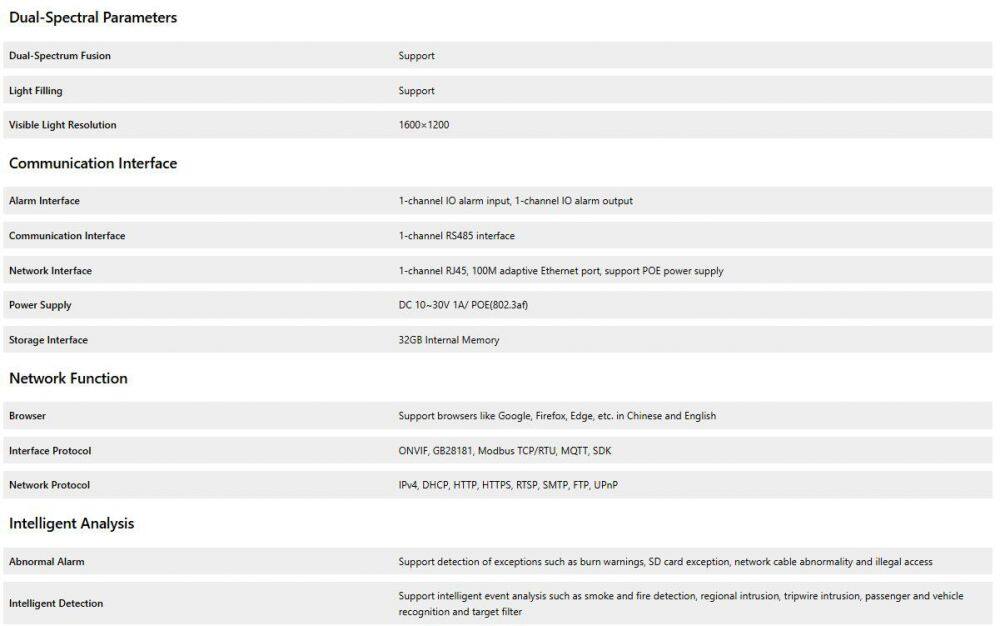

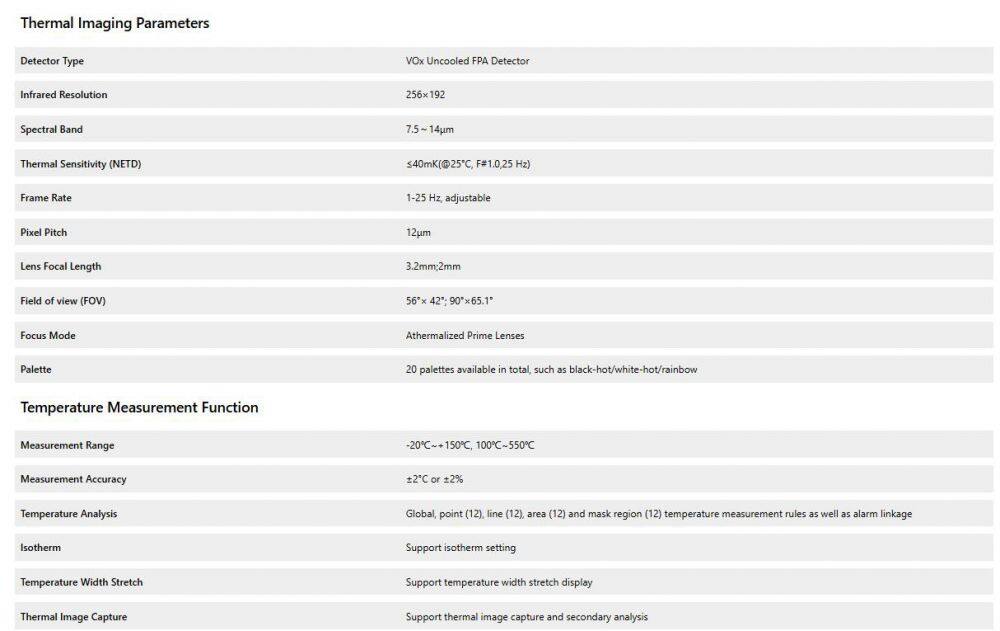

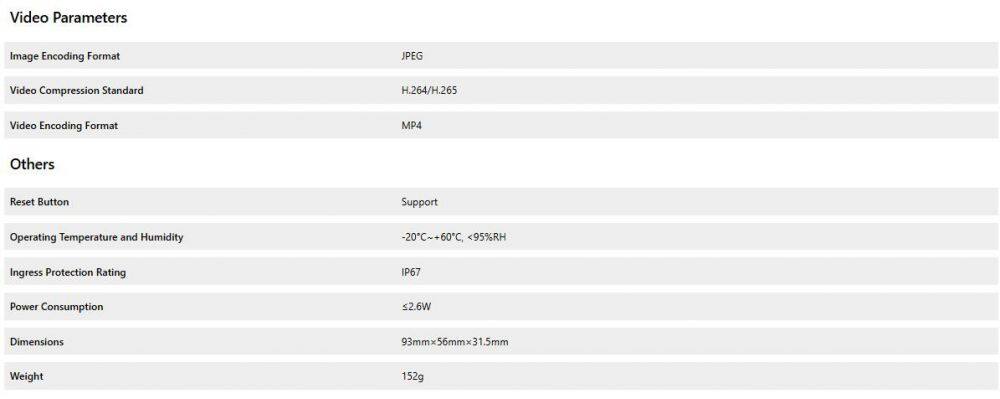

Specification

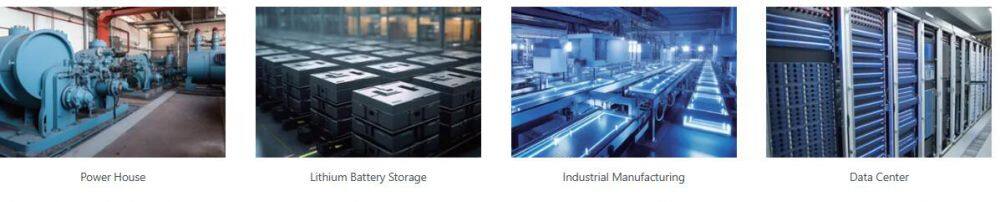

Application Scenarios
