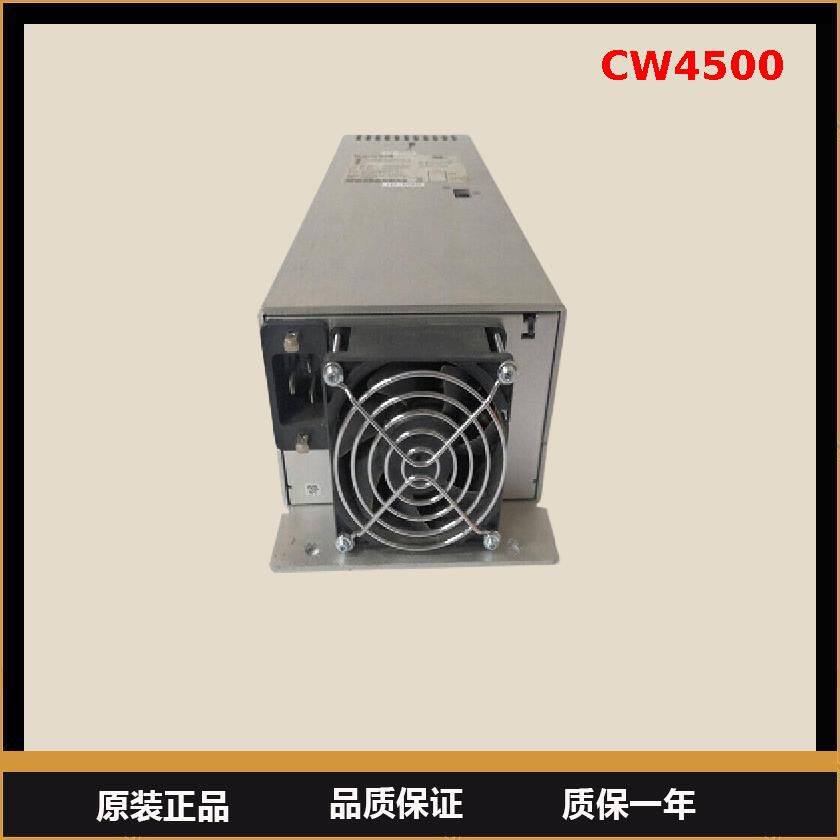

**Technical Specifications of Honeywell Power Module CW 4500**
**General Description**
The Honeywell Power Module CW 4500 is a high-performance, rack-mountable AC power distribution and management unit designed for critical infrastructure environments such as data centers, server rooms, and network closets. It provides advanced, reliable power distribution, remote management capabilities, and integrated environmental monitoring to ensure the operational integrity of connected equipment.
**Key Features**
* **Remote Power Management:** Offers individual outlet-level control (On/Off/Reboot) and monitoring via a secure web interface, SNMP, or Telnet/SSH.
* **Power Sequencing:** Allows configured delay sequences for power-up and power-down of connected devices, preventing inrush current overloads.
* **Integrated Environmental Monitoring:** Includes built-in sensors for temperature and humidity, with configurable alarm thresholds.
* **Local Visualization:** Features an LCD display for at-a-glance viewing of status, load, and environmental conditions.
* **Alarm Notification:** Provides audible and visual local alarms, as well as remote notifications via email or SNMP traps for events such as overloads, threshold breaches, or power loss.
* **High-Density Outlets:** Supplies multiple IEC C13 outlets to power a variety of IT equipment.
* **Dual Power Input:** Supports connection to two independent AC power sources for enhanced availability in redundant power configurations.
**Detailed Technical Parameters**
**Electrical Input:**
* **Input Voltage:** 200-240VAC, single phase.
* **Input Frequency:** 50/60 Hz.
* **Input Connection:** Hardwired or via plug-in power cord (configurable).
* **Maximum Input Current:** 32A per branch.
**Electrical Output:**
* **Outlet Type:** IEC C13.
* **Number of Outlets:** 16 individually controllable outlets (typical configuration; may vary by model).
* **Outlet Current Rating:** 10A per outlet.
* **Total Maximum Load Capacity:** 4500VA / 4500W.
**Management & Communication:**
* **Management Interfaces:** 10/100 Ethernet (RJ-45).
* **Protocols:** HTTP/HTTPS, SNMP v1/v3, Telnet, SSH.
* **User Authentication:** Multi-level security with RADIUS support.
**Environmental Monitoring:**
* **Monitored Parameters:** Temperature, Humidity.
*
