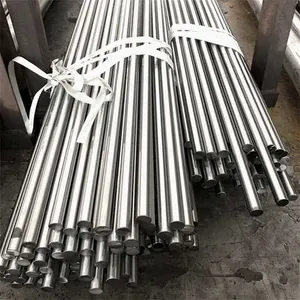

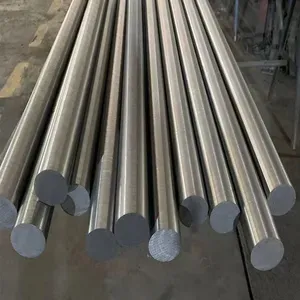

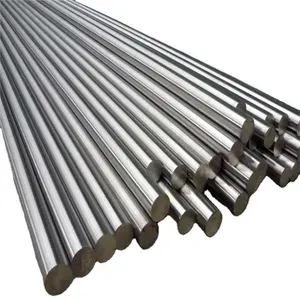

Help CenterGh4169 High-Temperature Alloys Bar Gh Series Alloy Products Corrosion and High Temperature Resistant Nickel Base Alloy Bars Round Rod
Related Products
-
Factory Supply of High Temperature Alloy Stainless Steel Bar Rod Gh4169US$ 1650 - 2650MOQ: 1 Meter -
Premium Metal Round Bars - Gh4169 Series for Industrial UseUS$ 1650 - 2650MOQ: 1 Meter
-
High Temperature Strength Nickel Alloy Gh4169 W. Nr. 1.4958 Welding Rod MIG TIG Welding Rod BarUS$ 1650 - 2650MOQ: 1 Meter
-
Inconel Alloy Bar Rod Round Square Bar for High Temperature Corrosion Resistance Gh4169US$ 1650 - 2650MOQ: 1 Meter
-
Gh4169 2mm 10mm Bright Surface Hot Rolled 304 Stainless Steel Round Rod for Tableware Cabinets Boilers Auto PartsUS$ 1650 - 2650MOQ: 1 Meter
Customized
Product Description
Product Description
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31 | |
| Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g | |
| Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C, Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
| Haynes: Haynes 230/556/188 | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20 | |
| Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60; | |
| Nimonic: Nimonic 75/80A/90/A263 ; | |
|
Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
| Application | High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |
| Packaging | 1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products |
| Delivery | 7-25days or According to the product |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders. |
Specifications
| Nickel Sheet | |
| Thickness | 0.3mm - 6.0mm |
| Width | 1000mm - 2200mm |
| Length | Produce as requirement |
| Nickel Plate | |
| Thickness | 3.0mm - 300mm |
| Width | 1000mm - 3000mm |
| Length | Produce as requirement |
| Nickel Strip / Nickel Foil | |
| Thickness | 0.02mm - 16.0mm |
| Width | 5mm - 900mm |
| Nickel Coil | |
| Thickness | 0.3mm - 16.0mm |
| Width | 1000mm - 3000mm |
| Nickel Pipe | |
| Outside Diameter | 6.0mm - 1219mm |
| Thickness | 0.5mm - 100mm |
| Nickel Capillary Pipe | |
| Outside Diameter | 0.5mm - 6.0mm |
| Thickness | 0.05mm - 2.0mm |
| Nickel Bar | |
| Diameter | Ф4mm - Ф600mm |
| Nickel Wire Rod | |
| Diameter | Ф0.01mm - Ф6.0mm |
Chemical Component
Inconel Alloy
Item |
600 |
601 |
617 |
625 |
690 |
718 |
X750 |
825 |
C |
≤0.15 |
≤0.1 |
0.05-0.15 |
≤0.1 |
≤0.05 |
≤0.08 |
≤0.08 |
≤0.05 |
Mn |
≤1 |
≤1.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.35 |
≤1 |
≤1 |
Fe |
6-10 |
rest |
≤3 |
rest |
7-11 |
rest |
5-9 |
≥22 |
P |
≤0.015 |
≤0.02 |
≤0.015 |
-- |
-- |
-- |
-- |
-- |
S |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.01 |
≤0.01 |
≤0.03 |
Si |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.35 |
≤0.5 |
≤0.5 |
Cu |
≤0.5 |
≤1 |
-- |
≤0.3 |
≤0.5 |
≤0.3 |
≤0.5 |
1.5-3 |
Ni |
≥72 |
58-63 |
≥44.5 |
50-55 |
≥58 |
50-55 |
≥70 |
38-46 |
Co |
-- |
-- |
10-15 |
≤10 |
-- |
≤1 |
≤1 |
-- |
Al |
-- |
1-1.7 |
0.8-1.5 |
≤0.8 |
-- |
0.2-0.8 |
0.4-1 |
≤0.2 |
Ti |
-- |
-- |
≤0.6 |
≤1.15 |
-- |
-- |
2.25-2.75 |
0.6-1.2 |
Cr |
14-17 |
21-25 |
20-24 |
17-21 |
27-31 |
17-21 |
14-17 |
19.5-23.5 |
Nb+Ta |
-- |
-- |
-- |
4.75-5.5 |
-- |
4.75-5.5 |
0.7-1.2 |
-- |
Mo |
-- |
-- |
8-10 |
2.8-3.3 |
-- |
2.8-3.3 |
-- |
2.5-3.5 |
B |
-- |
-- |
≤0.006 |
-- |
-- |
-- |
-- |
-- |
Incoloy Alloy
Grade |
800 |
800H |
800HT |
825 |
925 | |
|
Chemical Composition (%) |
C |
≤0.1 | 0.05-0.1 | 0.06-0.1 | ≤0.05 | ≤0.03 |
| Mn | ≤1.5 | ≤1.5 | ≤1.5 | ≤1 | ≤1 | |
| Fe | rest | rest | rest | rest | rest | |
P |
-- | -- | -- | ≤0.02 | ≤0.03 | |
S |
≤0.015 | ≤0.015 | ≤0.015 | ≤0.03 | ≤0.03 | |
Si |
≤1 | ≤1 | ≤1 | ≤0.5 | ≤0.5 | |
Cu |
≤0.75 | ≤0.75 | ≤0.75 | 1.5-3 | 1.5-3 | |
Ni |
30-35 | 30-35 | 30-35 | 38-46 | 42-46 | |
Al |
0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.2-1 | 0.15-0.5 | |
Ti |
0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.6-1.2 | 1.9-2.4 | |
| Cr | 19-23 | 19-23 | 19-23 | 19.5-23.5 | 19.5-23.5 | |
| Mo | -- | -- | -- | 2.5-3.5 | 2.5-3.5 |
Hastelloy Alloy
Grade |
C276 |
C22 |
C4 |
B2 |
B3 | N | |
|
Chemical Composition (%) |
C |
≤0.01 |
≤0.015 |
≤0.015 |
≤0.02 |
≤0.01 | 0.04-0.08 |
Mn |
≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 | |
Fe |
4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 | |
P |
≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 | |
S |
≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 | |
Si |
≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 | |
Ni |
rest | rest | rest | rest | ≥65 | rest | |
Co |
≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 | |
Ti+Cu |
-- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 | |
Al+Ti |
-- | -- | -- | -- | ≤0.5 | ≤0.5 | |
| Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 | |
| Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 | |
| B | -- | -- | -- | -- | -- | ≤0.01 | |
| W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 | |
| V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 |
Main Products
| Material | Trademark | UNS | Werkst. nr. | Density | Bar/Billet | Forgings | Flanges | Tube | Pipe | Plate | Fittings | ASME Fittings |
| Nickel Alloys | smls/wld | smls/wld | ||||||||||
| Alloy 200 | Nickel 200 | N02200 | 2.4066 | 8,89 | B160 | B564 | B564 | B163/B730 | B161/B725 | B162 | B366 | WPN |
| Alloy 201 | Nickel 201 | N0220l | 2.4068 | 8,89 | B160 | B163/B730 | B161/B725 | B162 | B366 | WPNL | ||
| Alloy 400 | Monel 400 | N04400 | 2.4360 | 8,83 | B164 | B564 | B564 | B163/B730 | B165/B725 | B127 | B366 | WPNC |
| Alloy K-500 | Monel K-500 | N05500 | 2.4375 | 8,46 | B865 | B865 | B865 | |||||
| Alloy 600 | lnconel 600 | N06600 | 2.4816 | 8,42 | B166 | B564 | B564 | B163/B516 | B167/B517 | B168 | B366 | WPNCI |
| Alloy 601 | lnconel 601 | N06601 | 2.4851 | 8,20 | B166 | B163/B516 | B167 | B168 | ||||
| Alloy 625 | lnconel 625 | N06625 | 2.4856 | 8,44 | B446 | B564 | B564 | B444/B704 | B444/B705 | B443 | B366 | WPNCMC |
| Alloy 718 | lnconel 718 | N07718 | 2.4668 | 8,19 | B637 | B637 | B637 | B670 | ||||
| Alloy 800 | lncoloy 800 | N08800 | l.4876 | 8,00 | B408 | B564 | B564 | B163/B515 | B407/B514 | B409 | B366 | WPNIC |
| Alloy 800H | lncoloy 800H | N088l0 | l.4876 | 8,00 | B408 | B564 | B564 | B163/B515 | B407/B514 | B409 | B366 | WPNIClO |
| Alloy 800HT | lncoloy 800HT | N088ll | l.4876 | 8,00 | B408 | B564 | B564 | B163/B515 | B407 | B409 | B366 | WPNICll |
| Alloy 825 | lncoloy 825 | N08825 | 2.4858 | 8,18 | B425 | B564 | B564 | B163/B704 | B423/B705 | B424 | B366 | WPNICMC |
| Alloy C-276 | Hastelloy C-276 | Nl0276 | 2.4819 | 8,87 | B574 | B564 | B564 | B622/B626 | B622/B619 | B575 | B366 | WPHC276 |
| Alloy C-22 | Hastelloy C-22 | N06022 | 2.4602 | 8,69 | B574 | B564 | B564 | B622/B626 | B622/B619 | B575 | B366 | WPHC22 |
| Alloy B-2 | Hastelloy B-2 | Nl0665 | 2.4617 | 9,22 | B335 | B564 | B564 | B622/B626 | B622/B619 | B333 | B366 | WPHB2 |
| Alloy B-3 | Hastelloy B-3 | Nl0675 | 2.4600 | 9,20 | B335 | B564 | B564 | B622/B626 | B622/B619 | B333 | B366 | WPHB3 |
| Alloy 59 | Nicrofer 5923 hMo | N06059 | 2.4605 | 8,60 | B574 | B564 | B564 | B622/B626 | B622/B619 | B575 | B366 | WP5923 |
| Alloy 20 | Carpenter 20Cb3 | N08020 | 2.4660 | 8,10 | B473 | B462 | B462 | B729/B468 | B729/B464 | B463 | B366 | WP20CB |
| Titanium Grade 2 | R50400 | 3.7035 | 4,50 | B348 | B381 | B381 | B338 | B861/B862 | B265 | B363 | WPT2 | |
| Titanium Grade 5 | R56400 | 3.7165 | 4,40 | B348 | B381 | B381 | B861/B862 | B265 | ||||
| Zirconium 702 | R60702 | 6,60 | B550 | B493 | B493 | B523/B523 | B658/B658 | B551 | B653 | |||
| Tantalum | R05200 | 16,66 | B365 | B521/B521 | B708 |
Company Profile
Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
