Product Description
Product Description

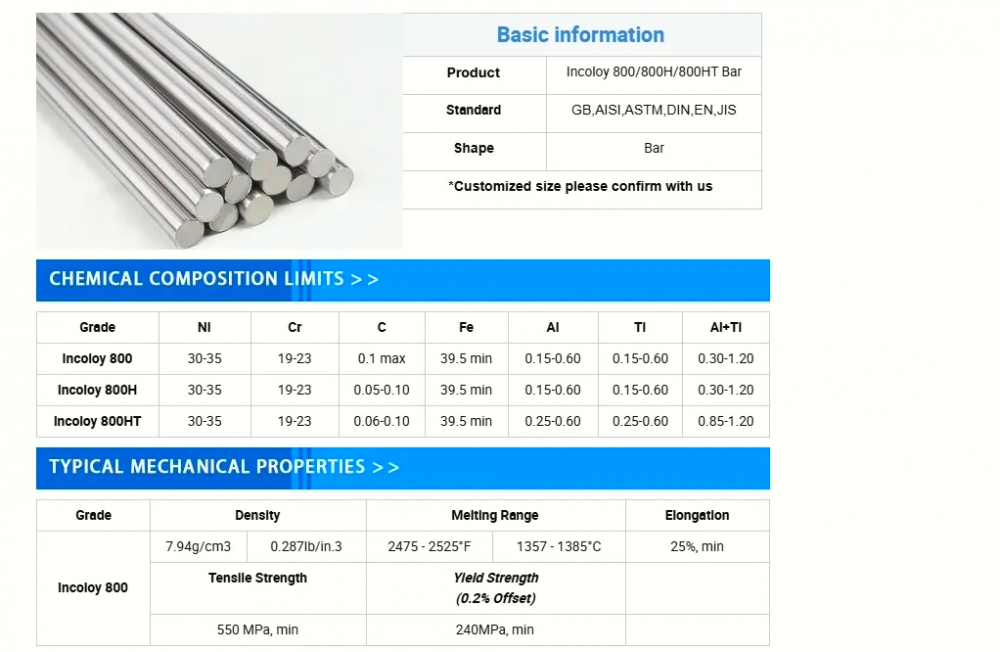

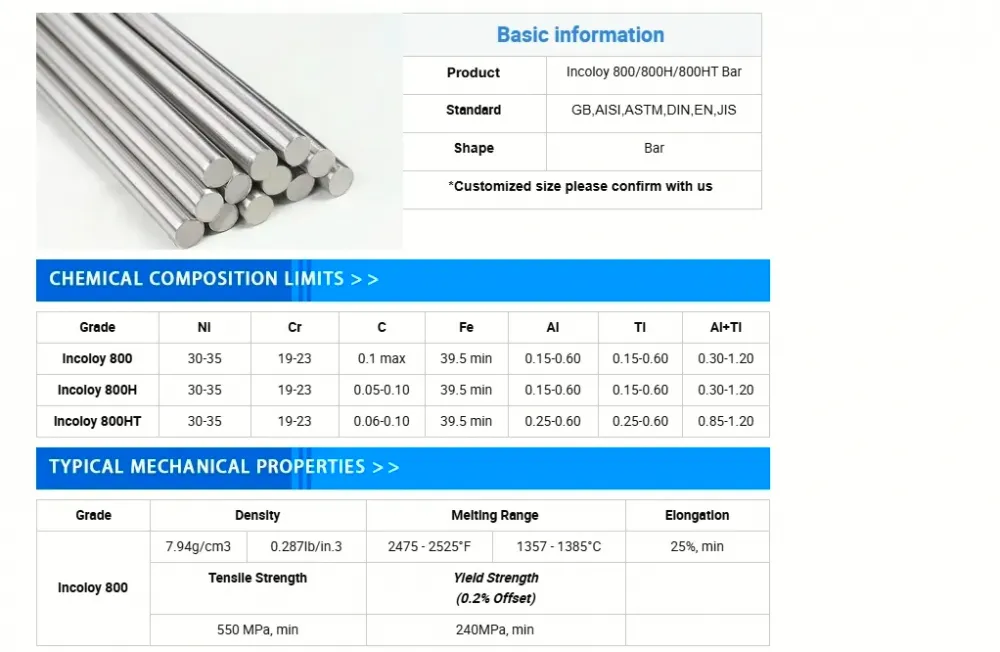

The 800 series of alloy (Incoloy 800, 800H and 800HT) are nickel-iron-chromium superalloys that have excellent properties of high temperature strength and resistance to oxidation, carburization and other types of high temperature corrosion.Alloy 800, 800H and 800HT are used in various applications from furnace components, petrochemical furnace cracker tubes to sheathing for electrical heating elements.
Certifications
GENERAL TERM |
UNS No. |
DIN/EN |
TYPICAL COMPONENTS (wt%) |
China/GB |
Recommended Welding Materials |
Pure Nickel 200 |
N02200 |
2.4060 |
99Ni*-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.10C |
____ |
E(R)Ni-1 |
Pure Nickel 1201 |
N02201 |
2.4061 |
99Ni*-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.01C |
____ |
E(R)Ni-1 |
Pure Nickel 1270 |
N02270 |
2.4050 |
99Ni*-0.02Fe-0.001Mn-0.002Si-0.005Cu-0.10C |
____ |
____ |
Incoloy Alloy A-286 |
S66286 |
1.4980 |
25Ni-15Cr-1.5Mo-2Ti-1Mg-0.03C |
GH2132 |
E(R)NiCrMo-3 |
Incoloy Alloy 25-6Mo |
N08926 |
1.4529 |
25Ni-20Cr-6.5Mo-1Cu-0.2N-1.0Mg-0.01P-0.005S-0.01C |
____ |
E(R)NiCrMo-3 |
Incoloy Alloy 25-6HN |
N08367 |
____ |
25Ni-20Cr-6.3Mo-0.25Cu-0.2N-0.01P-0.005S-0.01C |
____ |
E(R)NiCrMo-3 |
Incoloy Alloy 27-7Mo |
S31277 |
____ |
27Ni-22Cr-7.0Mo-1Cu-0.3N-0.01P-0.005S-0.01C |
____ |
E(R)NiCrMo-3 |
Incoloy Alloy 20 |
N08926 |
2.4660 |
36Ni-21Cr-3.5Cu-2.5Mo-1Mn-0.01C |
NS143 |
E(R)NiCrMo-3 |
Incoloy Alloy 28 |
N08028 |
1.4563 |
32Ni-27Cr-3.5Mo-1Cu-0.01C |
____ |
E(R)NiCrMo-3 |
Incoloy Alloy 330 |
N08330 |
1.4886 |
35Ni-18Cr-2Mg-1Si-0.03C |
____ |
E(R)NiCrMoMo-1 |
Incoloy Alloy 800 |
N08800 |
1.4876 |
32Ni-21Cr-42Fe-0.05Cu-≤0.1C |
NS111 |
E(R)NiCrMoMo-1 |
Incoloy Alloy 800H |
N08810 |
1.4958 |
32Ni-21Cr-42Fe- |
NS112 |
E(R)NiCrMoMo-1 |
Incoloy Alloy 800HT |
N08811 |
1.4959 |
32Ni-21Cr-42Fe- |
____ |
E(R)NiCrMoMo-1 |
Incoloy Alloy 836 |
N08825 |
2.4858 |
42Ni-21Cr-3Mo-2Cu-0.8Ti-0.1AL-0.02C |
NS142 |
E(R)NiCrMo-3 |
Incoloy Alloy 840 |
S33400 |
____ |
20Ni-19Cr-Ti,AI |
____ |
ERNICR-3 |
Incoloy Alloy 600 |
N06600 |
2.4816 |
72Ni*-15Cr-18Fe-0.2Cu-0.02C |
NS312 |
E(R)NiCr-3 |
Incoloy Alloy 601 |
N06601 |
2.485 |
60Ni-22Cr-1.2AI-0.5Cu-0.02C |
NS313 |
ERNiCrFe-11 |
Incoloy Alloy 625 |
N06625 |
24856 |
58Ni*-21Cr-9Mo-3.5Nb-1Co-0.02C |
NS336 |
E(R)NiCrMo-3 |
Incoloy Alloy 625 CF |
N06626 |
2.4856 |
58Ni*-21Cr-9Mo-3.5Nb-1Co-0.02C |
____ |
E(R)NiCrMo-3 |
Incoloy Alloy 686 |
N06686 |
2.4606 |
57Ni*-21Cr-16Mo-4W-0.01C |
NS339 |
E(R)NiCrMo-14 |
Incoloy Alloy 690 |
N06690 |
2.4642 |
58Ni*-30Cr-9Fe-0.2Cu-0.02C |
NS315 |
E(R)NiCrFe-7 |
Incoloy Alloy 718 |
N07718 |
2.4668 |
52Ni-19Cr-15Nb-3Mo-1Ti-0.6AI-0.02C |
GH4169 |
ERNiFeCr-2 |
Incoloy Alloy X-750 |
N07750 |
2.4669 |
70Ni*-15Cr-6Fe-2.5Ti-0.6Al-1Nb-0.02C |
GH4145 |
ERNiFeCr-2 |
Monel 400 |
N04400 |
2.4360 |
63Ni*-32Cu-1Fe-0.1C |
M-400 |
E(R)NiCu-7 |
Monel K-500 |
N05500 |
2.4375 |
63Ni*-30Cu-1Fe-3Al-0.6Ti-0.1C |
M-400 |
E(R)NiCu-7 |
Hastelloy C-276 |
N10276 |
2.4819 |
57Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C |
NS334 |
E(R)NiCrMo-4 |
Hastelloy C-4 |
N06455 |
2.4610 |
65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C |
NS335 |
E(R)NiCrMo-7 |
Hastelloy C-22 |
N06022 |
2.4602 |
56Ni-22Cr-13Mo-3Fe-3W-2.5Co--0.5Mn-0.35V-0.08Si-0.01C |
NS338 |
E(R)NiCrMo-10 |
Hastelloy C-2000 |
N06200 |
2.4675 |
59Ni-23Cr-16Mo-1.6Cu-0.08SI-0.01C |
NS345 |
E(R)NiCrMo-17 |
Hastelloy X |
N06002 |
2.4665 |
47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.10C-1Mn-1Si-0.008B |
GH3536 |
E(R)NiCrMo-2 |
Hastelloy B-2 |
N10666 |
2.4617 |
69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C |
NS322 |
E(R)NiMo-10 |
Hastelloy B-3 |
N10675 |
2.4600 |
65Ni*-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C |
NS323 |
E(R)NiMo-10 |
Hastelloy G-30 |
N06030 |
2.4603 |
43Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C |
NS344 |
E(R)NiCrMo-11 |
Hastelloy G-35 |
N06035 |
2.4643 |
58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C |
____ |
G-35 FillerWire |
Nicrofer3127hMo |
N08031 |
1.4562 |
31Ni-27Cr-6.5Mo-1.5Cu-2Mn-0.01C |
____ |
E(R)NiCrMo-13 |
Nicrofer5923hMo |
N06059 |
2.4605 |
59Ni-23Cr-16Mo-1.0Fe-0.01C |
____ |
E(R)NiCrMo-13 |
Company Profile
Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
