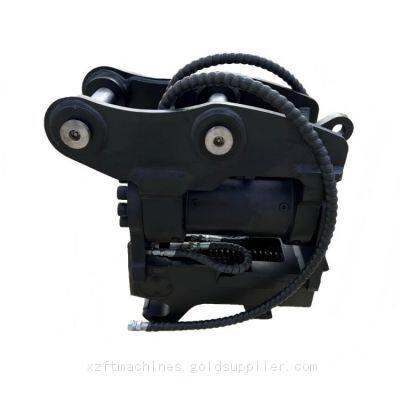

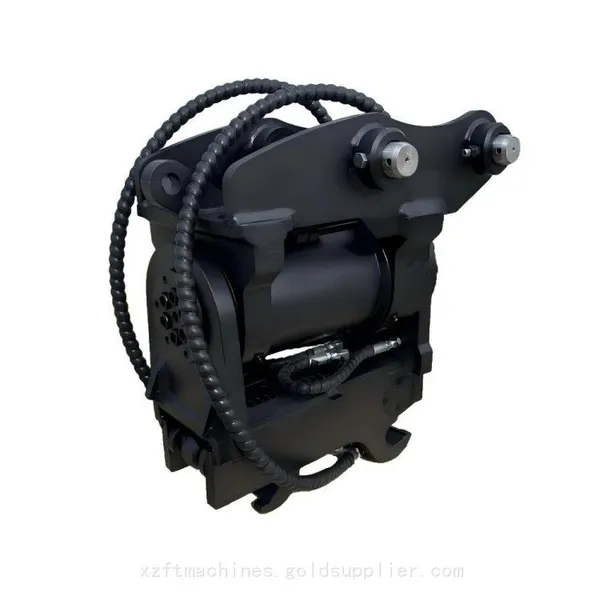

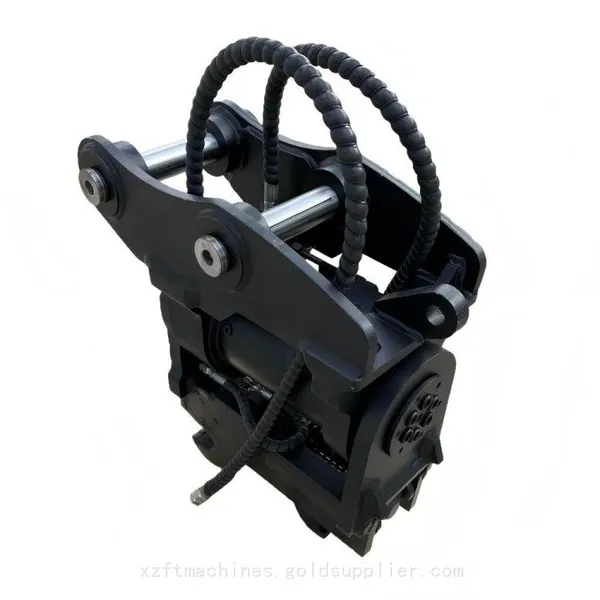

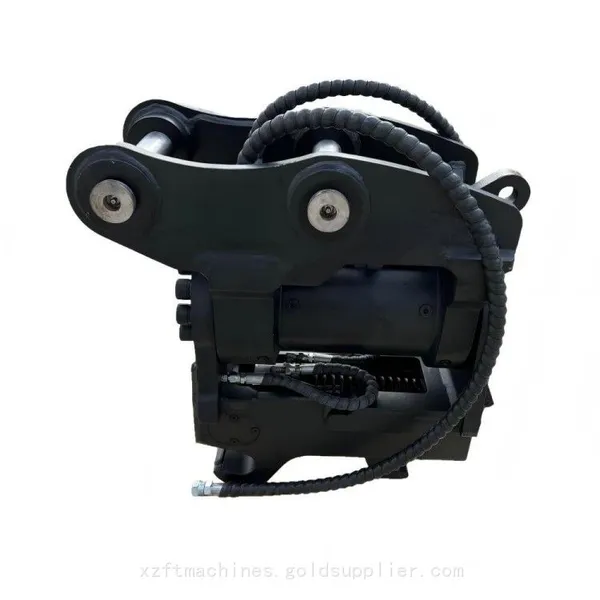

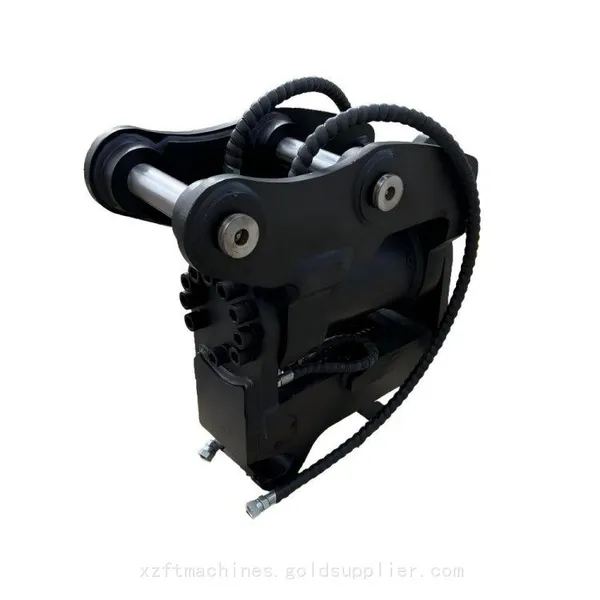

Q355B Manganese Steel 5 Ton Excavator Double Lock Hydraulic Tilt Quick Coupler
Type: Double lock design, normal hydraulic type quick coupler
Logo: XZFT Attachments, or customized
Painting color: customized acceptable
OEM/ODM： Aaccetable
Leading time: 10-15 days after payment, according to order quantity
HS code: 84314100
Origin: China
XZFT Attachments excavator tilt quick coupler :
Product description:
This product is an excavator tilt quick coupler, compatible with all types and brands of excavators. The body is made of Q355B manganese steel for high strength and corrosion resistance; the pins are made of 42CrMo alloy steel with built-in oil passages, combining high strength and toughness. It enables quick installation and changeover of various attachments, while supporting left-right tilting to significantly improve operational flexibility and efficiency.
Advantages:
Durable materials: Q355B manganese steel + 42CrMo alloy steel for long service life
Efficiency boost: Quick attachment changeover reduces downtime
Operational flexibility: Tilt function handles complex construction needs
Wide compatibility: Works with all excavator brands for universal use
Safety and reliability: Sturdy structure and stable locking ensure safe operation
Specification:
| Item/Model | Unit | XZFTJX00P | XZFT00P | XZFTJX01P | XZFT01P | XZFTJX02P | XZFT02P | XZFTJX04P | XZFT04P | XZFT06P | XZFT06P | XZFT08P | XZFT09P | XZFT10P | XZFT14P | XZFT17P | XZFT20P |
|
Applicable Excavator |
ton | 1.5-2.5 | 1.5-2.5 | 2.5-3.5 | 2.5-3.5 | 4-5 | 4-5 | 5-8 | 5-8 | 9-19 | 9-19 | 17-23 | 23-30 | 30-35 | 34-40 | 40-49 | 50-60 |
Weight |
kg | 27-30 | 27-30 | 36-42 | 36-42 | 55-60 | 55-60 | 80-92 | 80-92 | 180-190 | 180-190 | 300-325 | 410-430 | 510-570 | 550-600 | 720-780 | 1000-1100 |
|
Length A |
mm | 400-430 | 400-430 | 430-460 | 430-460 | 540-550 | 540-550 | 585-620 | 585-620 | 790-820 | 790-820 | 970-1000 | 1010-1030 | 1100-1200 | 1100-1200 | 1200-1300 | 1300-1450 |
Height B |
mm | 250-280 | 250-280 | 270-300 | 270-300 | 300-310 | 300-310 | 340-350 | 340-350 | 410-420 | 410-420 | 500-520 | 590-620 | 630-640 | 630-640 | 630-650 | 800-850 |
Width C |
mm | 220-250 | 220-250 | 230-290 | 230-290 | 290-325 | 290-325 | 380-405 | 380-405 | 375-420 | 375-420 | 470-510 | 520-570 | 530-570 | 550-610 | 620-660 | 670-800 |
|
Shaft Center Distance D |
mm | 90-130 | 90-130 | 150-200 | 150-200 | 220-305 | 220-305 | 260-350 | 260-350 | 350-420 | 350-420 | 420-500 | 470-520 | 490-580 | 490-580 | 535-665 | 570-670 |
|
Arm Opening E |
mm | 95-135 | 95-135 | 105-145 | 105-145 | 145-185 | 145-185 | 175-230 | 175-230 | 220-280 | 220-280 | 305-360 | 325-410 | 345-410 | 410-480 | 410-480 | 420-510 |
|
Cylinder Telescopic Distance |
mm | 90-135 | 95-135 | 150-200 | 150-200 | 220-305 | 220-305 | 260-350 | 260-350 | 350-420 | 350-420 | 420-500 | 470-520 | 490-580 | 490-580 | 535-665 | 570-670 |
|
Distance Between Upper and Lower Shafts F |
mm | 165-170 | 165-170 | 170-180 | 170-180 | 200-210 | 200-210 | 230-240 | 230-240 | 250-260 | 250-260 | 305-315 | 385-395 | 390-420 | 390-420 | 400-440 | 510-550 |
|
Shaft Diameter G |
mm | 25-30 | 25-30 | 30-40 | 30-40 | 40-50 | 40-50 | 45-55 | 45-55 | 60-65 | 60-65 | 70-80 | 80-90 | 90-100 | 100-110 | 110-120 | 120-130 |
|
Working Pressure |
bar | - | 30-40 | - | 30-40 | - | 30-40 | - | 30-40 | - | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 |
|
Working Flow |
lpm | - | 10-20 | - | 10-20 | - | 10-20 | - | 10-20 | - | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Application:
Municipal engineering: Road slope trimming, trench excavation and cleaning
Construction: Foundation pit excavation, foundation works, site leveling
Mining: Ore loading, material transfer, site clearing
Landscaping: Tree pit digging, landscape shaping, earthmoving
Emergency rescue: Debris clearance, obstacle removal, rapid disaster response
