  QSn6.5-0.1 phosphor copper wire is used to make springs and spring contact pieces with good conductivity, wear-resistant parts and anti-magnetic parts in precision instruments, such as gears, brush boxes, vibrating plates, contactors, etc. Tin bronze is a non-ferrous metal alloy with the smallest casting shrinkage rate, which is used to produce castings with complex shapes, clear contours and low airtightness requirements. Tin-phosphor bronze is very corrosion-resistant in the atmosphere, sea water, fresh water and steam, and is widely used in steam boilers and marine ship parts. Phosphorus-containing tin bronze has good mechanical properties and can be used as wear-resistant parts and elastic parts of high-precision machine tools. Lead-containing tin bronze is commonly used as wear-resistant parts and sliding bearings. Zinc-containing tin bronze can be used as high-airtightness castings.

Copper Cu: Balance

Tin Sn: 6.0 - 7.0

Lead Pb: ≤0.02

Phosphorus P: 0.10 - 0.25

Aluminum Al: ≤0.002

Iron Fe: ≤0.05

Silicon Si: ≤0.002

Antimony Sb: ≤0.002

Bismuth Bi: ≤0.002

Note: ≤0.1 (impurities)

Product features of phosphor copper wire:

1. The material processing causes little wear to the cutting tools;

2. High processing efficiency;

3. High strength and high wear resistance;

4. Long service life;

5. Good consistency of ovality and tolerance;

6. High surface finish of processed parts.

Product information:

Product name: Phosphor copper wire/Tin bronze wire/Tin-phosphor bronze wire/Phosphor copper wire

Grade: C5191 (0QSN6.5-0.1) C5210 (QSN6.5-0.4) C5111, C5101, C5191, C5210

Specification: 0.01 - 10.0mm

Origin: Guangdong

Hardness: Semi-hard (1/2Y), Hard (y), Extra hard (TY)

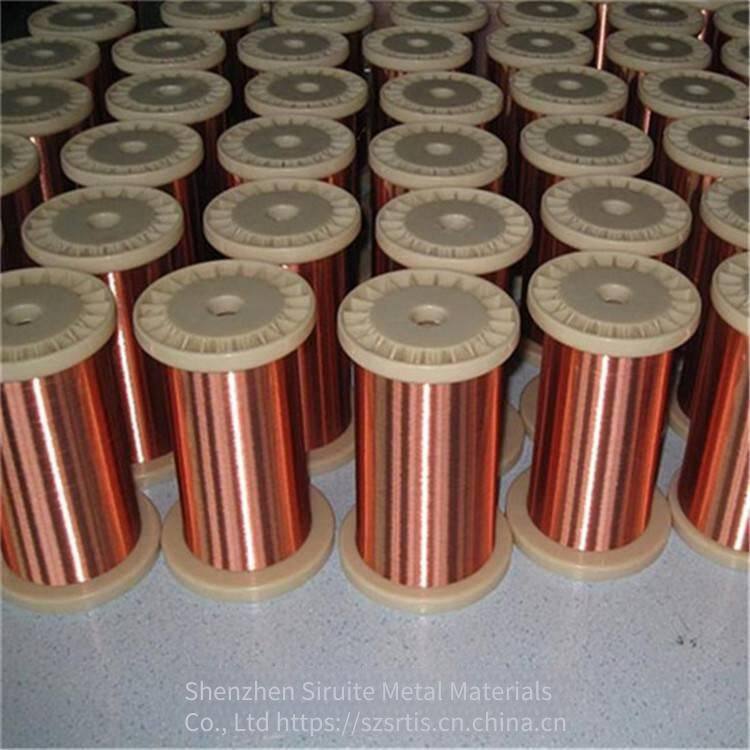

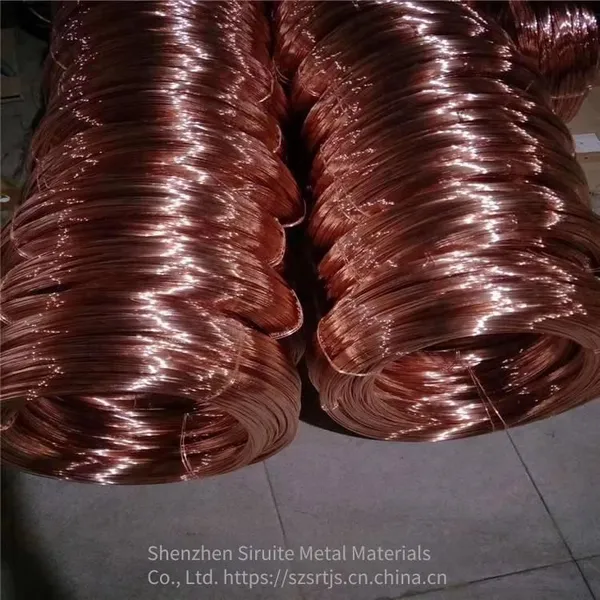

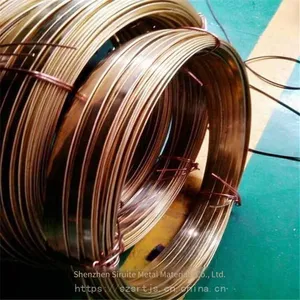

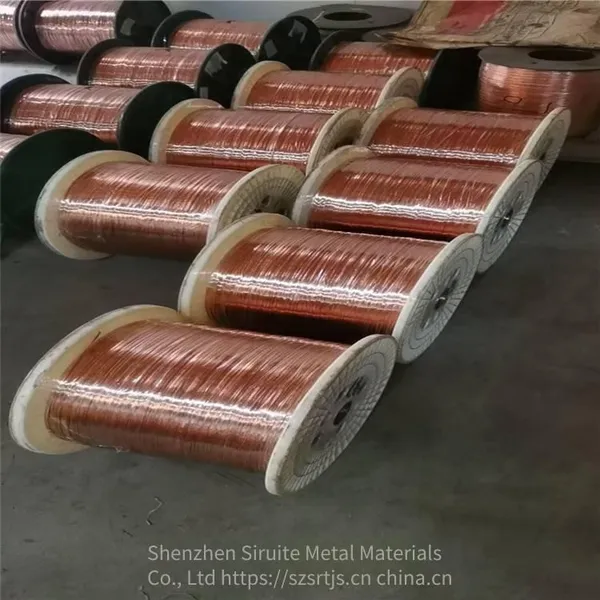

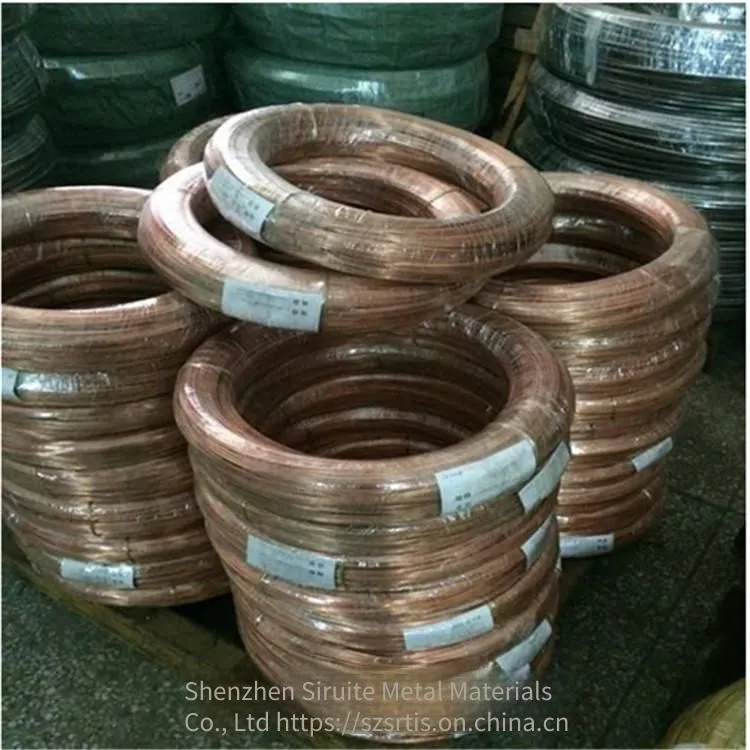

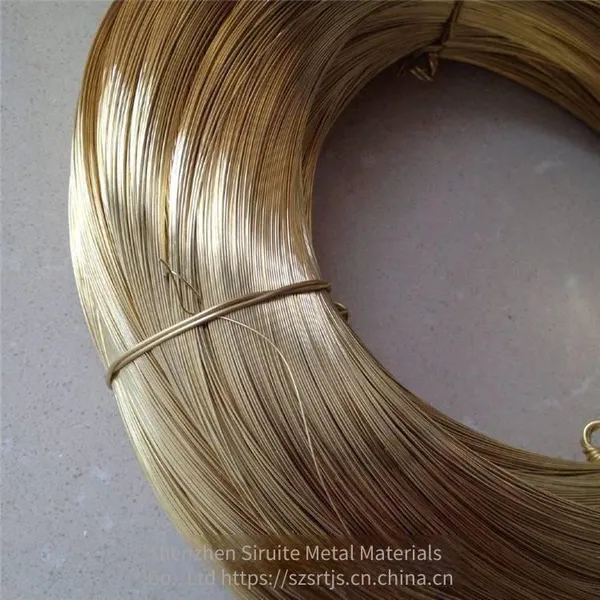

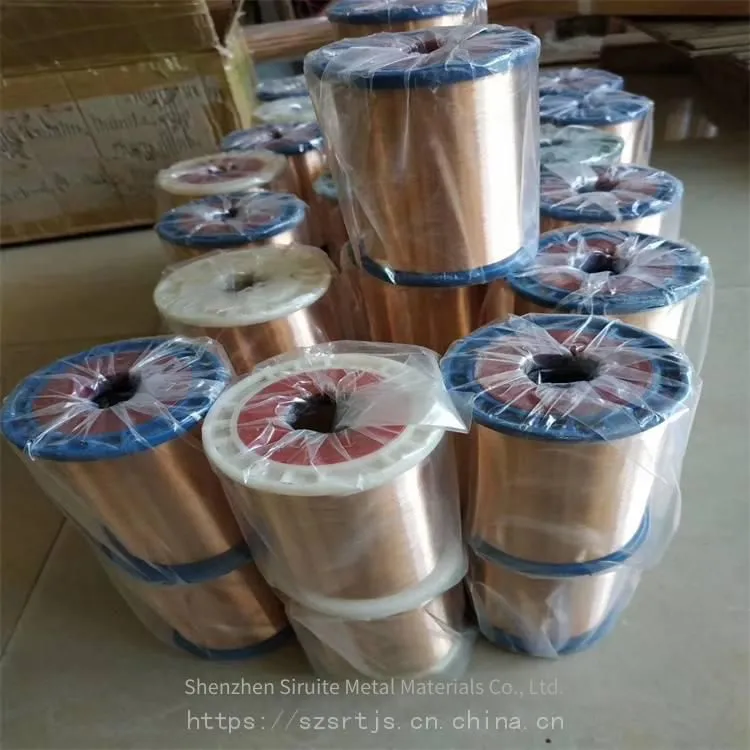

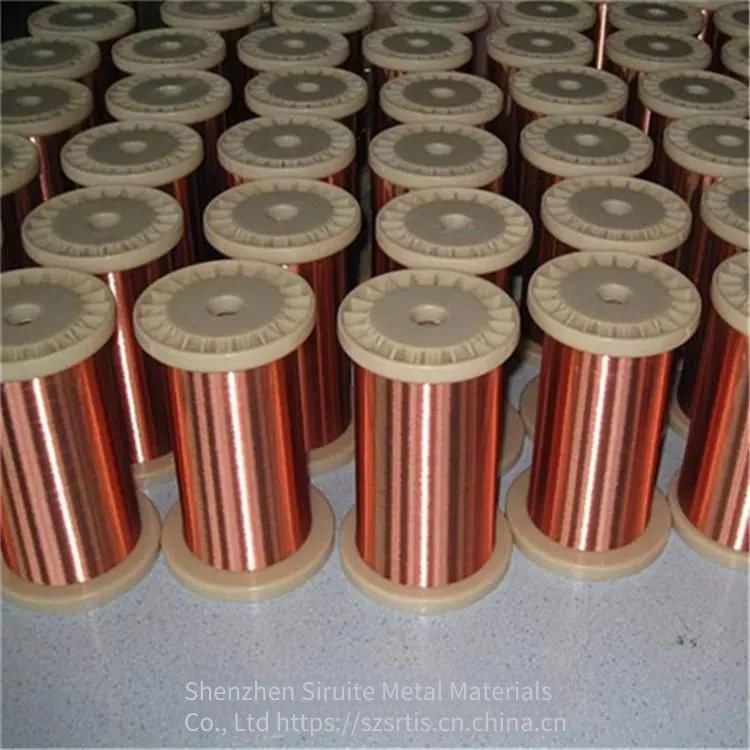

Packaging:   Spool packaging, Coil packaging
