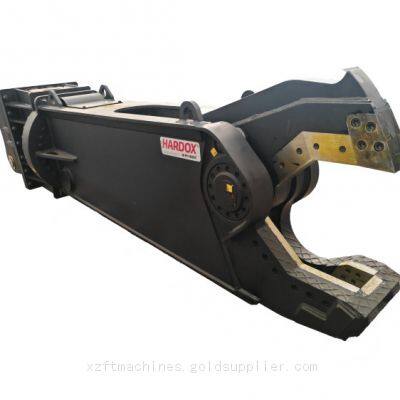

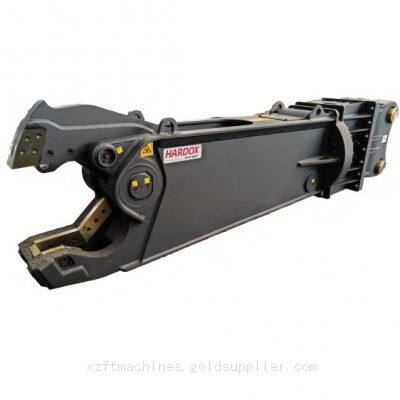

Hydraulic Eagle Shear Attachment for Excavators
Logo: XZFT Attachments, or customized
Painting color: customized acceptable
OEM/ODM： Aaccetable
Leading time: 10-15 days after payment, according to order quantity
HS code: 84314100
Origin: China
XZFT Attachments excavator hydraulic shear:
Product description:
The Hydraulic Shear is a high-efficiency hydraulic attachment for large-scale steel demolition. Featuring Hardox steel, alloy blades, a Swiss motor, and an inverted cylinder, it delivers high efficiency and long life. With dipper arm/boom mounting, it adapts to various excavators, ideal for heavy steel cutting.
Advantages:
Imported steel + one-piece forging, outstanding strength & durability
Imported motor + acceleration valve, significantly higher shearing efficiency
Inverted cylinder + imported seal, long life & low maintenance
Dual mounting options, strong adaptability & flexible operation
Built-in mechanical brake for safer operation
Product Parameters:
| Item/Model | Unit | XZFT40RT | XZFT80RT | XZFT150RT | XZFT280RT | XZFT380RT | XZFT400RT | XZFT450RT | XZFT500RT | XZFT800RT |
|
Dipper Arm Mounting |
ton | 3-5 | 6-9 | 12-18 | 20-28 | 30-38 | 36-45 | 40-50 | 46-60 | 60-80 |
|
Boom Mounting |
ton | - | - | - | - | 20-38 | 26-45 | 30-50 | 36-60 | 50-80 |
|
Working Pressure |
bar | 200 | 200 | 250-300 | 280-320 | 300-320 | 320-350 | 320-350 | 320-350 | 320-350 |
| Working Flow | lpm | 80 | 100 | 150 | 180-220 | 200-250 | 200-250 | 250-300 | 250-300 | 250-300 |
| Weight | kg | 420 | 580 | 1350 | 2450 | 3800/4200 | 5600/5900 | 5600/5900 | 6500/6800 | 8500/8800 |
| Rotation Flow | lpm | 20 | 30 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 |
|
Rotation Pressure |
bar | 100 | 100 | 90-100 | 100-115 | 100-115 | 100-115 | 100-115 | 100-115 | 100-115 |

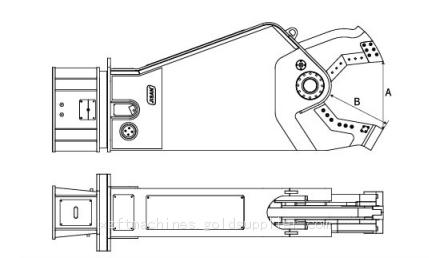

| Opening A | mm | 200 | 302 | 389 | 500 | 600 | 663 | 700 | 816 | 922 |
| Jaw Depth B | mm | 200 | 311 | 417 | 530 | 630 | 680 | 724 | 800 | 900 |
| Overall Length | mm | 1450 | 1790 | 2100 | 3030 | 3450/4600 | 4400/5100 | 4550/5250 | 4600/5300 | 5000/5700 |
|
Swing Diameter |
mm | 360 | 360 | 593 | 752 | 806 | 922 | 922 | 922 | 922 |
Applications:
Scrap recycling: H-beams, I-beams, etc.
Building demolition: girders, load-bearing beams, etc.
Ship dismantling: hull plates, bulkheads, etc.
Auto dismantling: car frames, chassis, etc.
Steel structure processing: large steel component cutting
