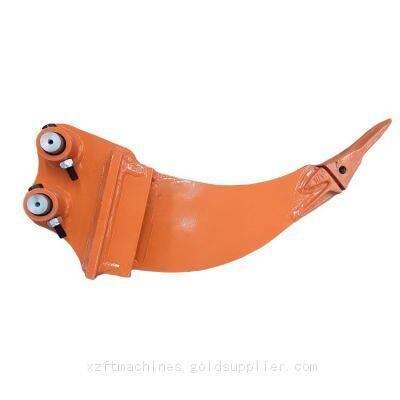

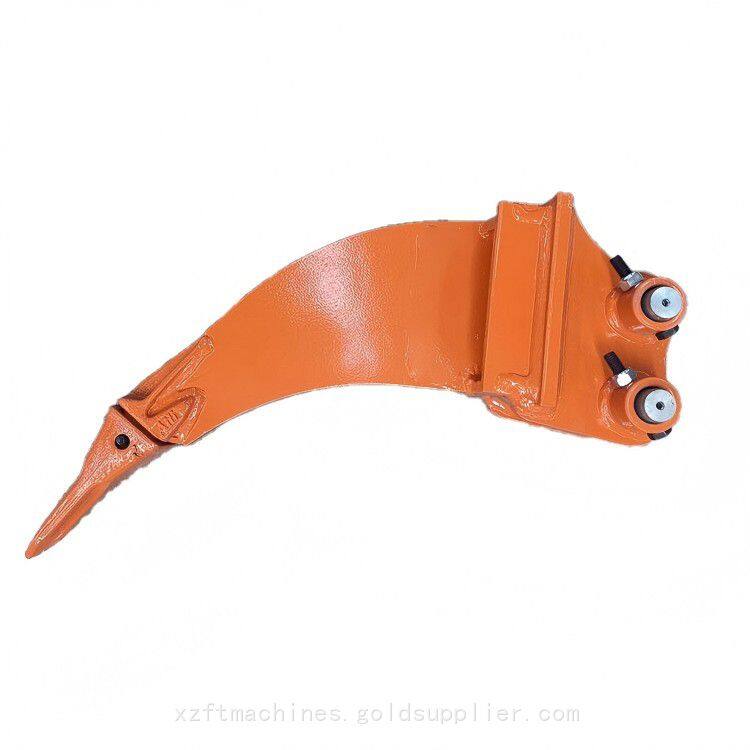

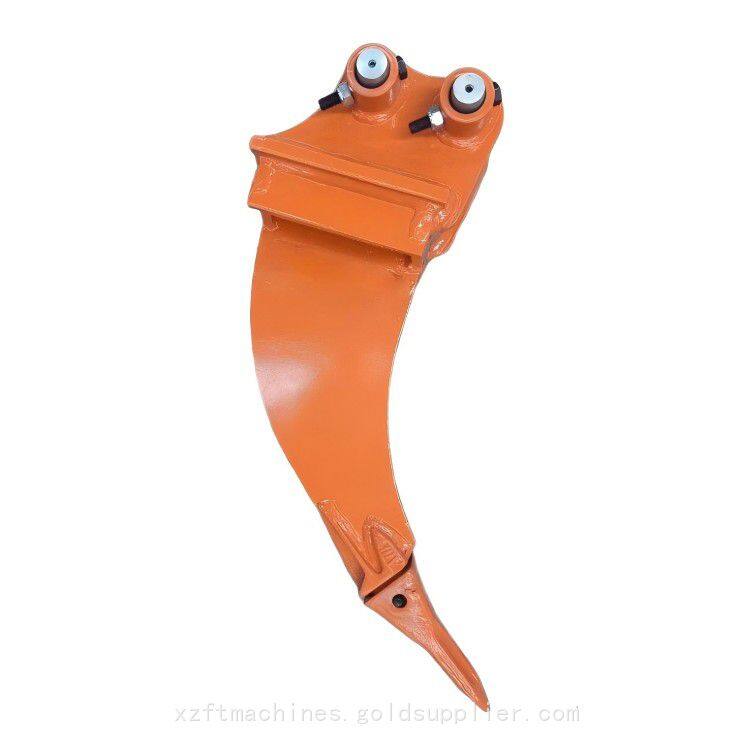

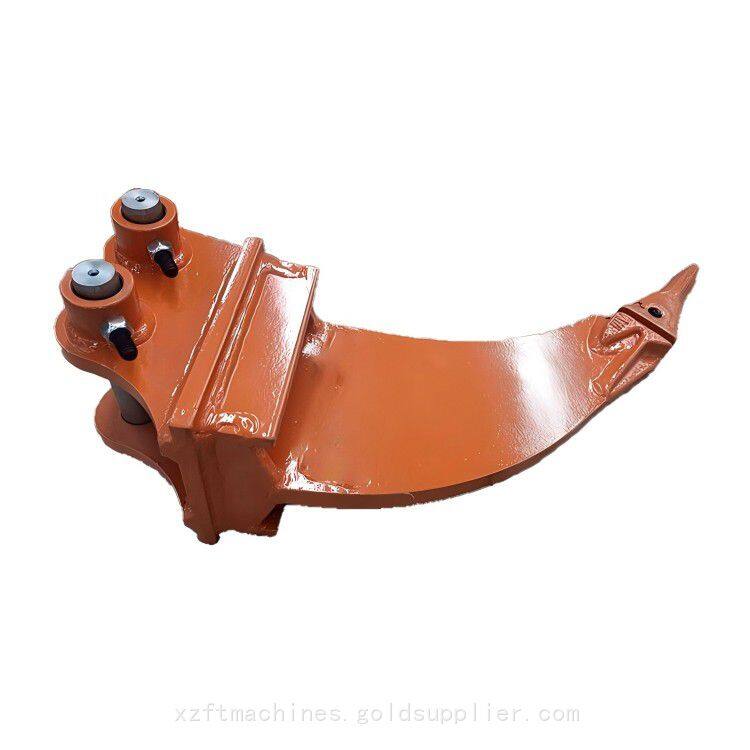

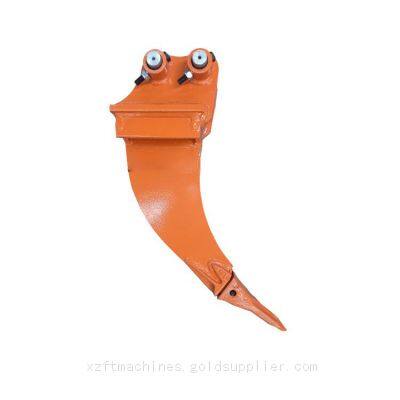

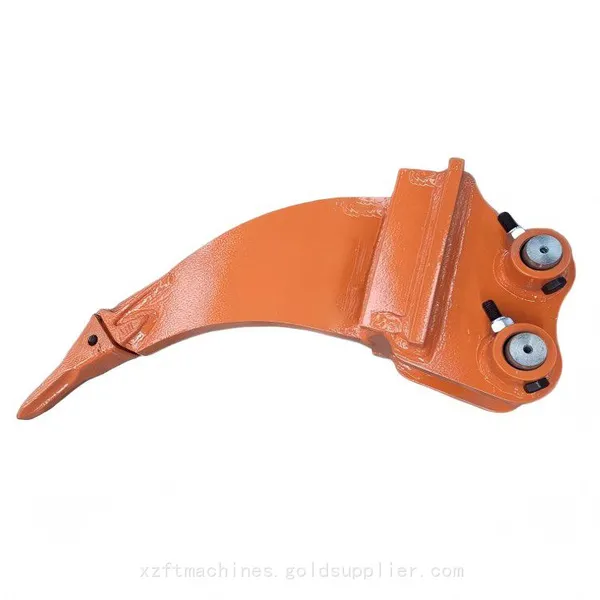

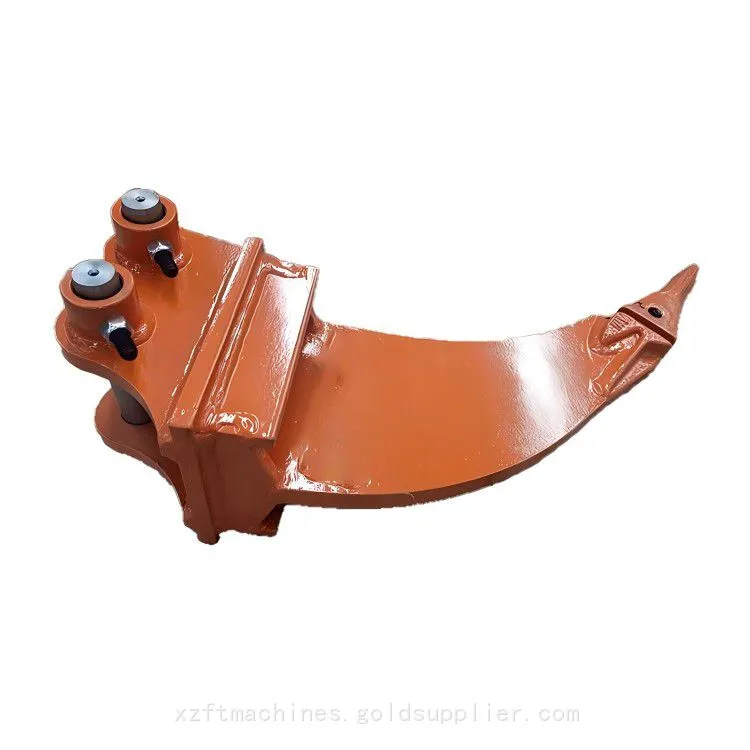

1.5T High-Toughness Durable Ground Ripper for Mini Excavator
Logo: XZFT Attachments, or customized
Painting color: customized acceptable
OEM/ODM： Aaccetable
Leading time: 10-15 days after payment, according to order quantity
HS code: 84314100
Origin: China
XZFT Attachments excavator Ripper :
Product description:
It is a heavy-duty, high-strength ripper attachment for excavators, used to efficiently break and loosen hard soil, frozen ground, soft rock, and weathered rock in construction, mining, and earthwork projects. This attachment is constructed from durable Q355B manganese steel and 42CrMo alloy steel pins, often featuring reinforced wear plates and replaceable teeth, making it essential for heavy-duty excavation and ground preparation tasks.
Advantages:
Durability: Made of high-strength Q355B manganese steel and 42CrMo alloy pins, ensuring long service life even in harsh conditions.
Efficiency: Delivers powerful penetration to break tough ground, significantly reducing project time and labor costs.
Versatility: Ideal for hard soil, frozen ground, soft rock, and weathered rock, suitable for mining, infrastructure, and earthwork industries.
Maintainability: Replaceable teeth and wear plates lower long-term maintenance costs and extend the attachment’s lifespan.
Product Parameters:
|
Item/ Model |
Unit | XZFT02 | XZFT04 | XZFT06 | XZFT08 |
XZFT 08-DT |
XZFT 08-DH |
XZFT10 |
XZFT 10-DT |
XZFT14 | XZFT17 | XZFT20 | XZFT24 |
|
Applicable Excavator |
ton | 3-5 | 6-9 | 9-16 | 18-26 | 18-26 | 18-26 | 26-35 | 26-35 | 30-40 | 40-50 | 50-65 | 65-90 |
|
Center Distance A |
mm | 265 | 300 | 390 | 465 | 465 | 465 | 520 | 520 | 570 | 570 | 600 | 670 |
|
Overall Width B |
mm | 410 | 500 | 680 | 870 | 658 | 930 | 950 | 720 | 1115 | 1166 | 1227 | 1356 |
|
Overall Height C |
mm | 690 | 900 | 1200 | 1300 | 1500 | 1220 | 1415 | 1660 | 1495 | 1665 | 1788 | 1989 |
|
Shaft Diameter D |
mm | 40-50 | 50-55 | 60-70 | 70-80 | 70-80 | 70-90 | 80-90 | 80-100 | 80-90 | 90-110 | 110-130 | 110-120 |
| Opening E | mm | 120-180 | 160-240 | 220-280 | 300-410 | 310-400 | 310-400 | 320-450 |
400- 420 |
340-480 | 345-480 | 430-550 | 450-600 |
|
Main Plate Thickness |
mm | 50 | 50 | 60 | 80 | 80 | 65 | 80 | 90 | 90 | 90 | 100 | 100 |
|
Bucket Teeth Type |
type | DH55 | DH150 | DH220 | D85C | DH300 | DH420 | D85C | DH300 | 4T5502 | 4T5502 | D11 | D11 |
| Weigth | kg | 65 | 125 | 260 | 426 | 440 | 480 | 575 | 660 | 730 | 850 | 1320 | 1810 |
Applications:
Mining: Pre-loosening hard soil and weathered rock to boost efficiency.
Road Construction: Breaking hard soil and soft rock for stable foundations.
Frozen Ground Work: Breaking frozen soil in winter for pipelines and foundations.
Site Preparation: Loosening hard soil for grading and reclamation.
