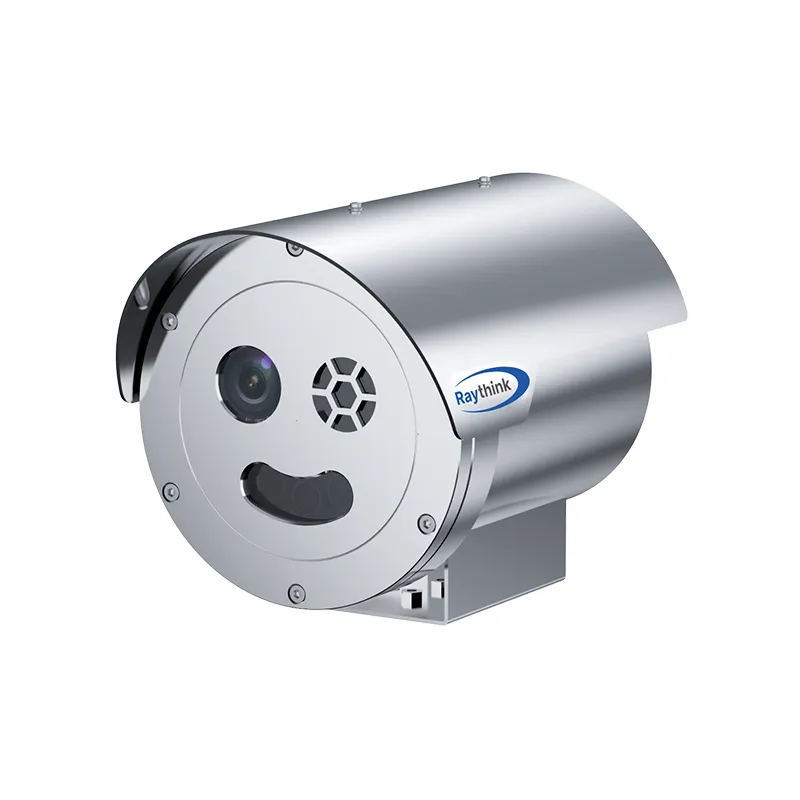

TE365 Dual-Spectrum Explosion-Proof Bullet Camera
TE365 dual-spectrum explosion-proof bullet camera equipped with an HD visible light camera and a 640×512 thermal imaging camera. 304 or 316 stainless steel is using for housing to let the camera operate in hazardous area.
Feature
12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal&visible light imaging.
Dual Explosion-Proof Certification
Certified with dual explosion-proof ratings for dust and gas: Ex db IIc T6 Gb and Ex tb IIc T80°C D.
Accurate Temperature Measurement
Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.
Fire Point Detection
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring.
Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
Specification
| Thermal Module | |
|---|---|
| Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmNETD≤40mK@25℃,F#1.0Resolution640×512Pixel Pitch12μmFocal Length9.1mm / 13mm | |
| Optical Module | |
| Sensor5MP 1/2.8" Progressive Scan CMOSResolution2560×1920IR distance50m | |
| PTZ | |
| Pan360° continuous rotationTilt-90°~+90° | |
| Temperature Measurement | |
| Temperature MeasurementSuport 4 temperature measure ment rules(fullframe, point, line, area) | |
| Smart Function | |
| Fire DetectionSupportVCASupport Line Crossing&Intrusion detection2-Way AudioSupportLinkage ActionVideo/ Snapshot/Email/Alarm output/sound and light alarm | |
| System Interface | |
| PowerAC100~260VNetwork1 RJ45 10M / 100M self-adaptive Ethernet portAudio1 in/1 outAlarm2 in/2 outStorageMicro SD memory（maximum 256G）ResetSupportSerial Port1 channel RS485, can support Pelco protocol | |
| General | |
| Work Environment-40℃~+70℃； | |
Application Scenarios
