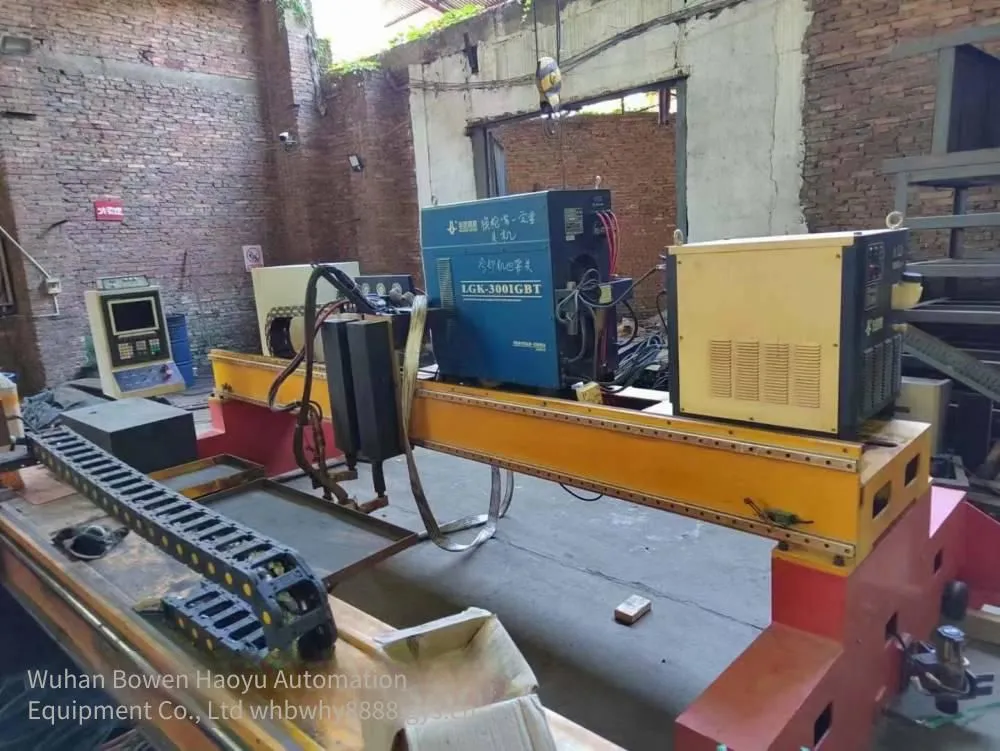

Used plasma cutting machine 4-meter span Fangling system Huayuan 300A

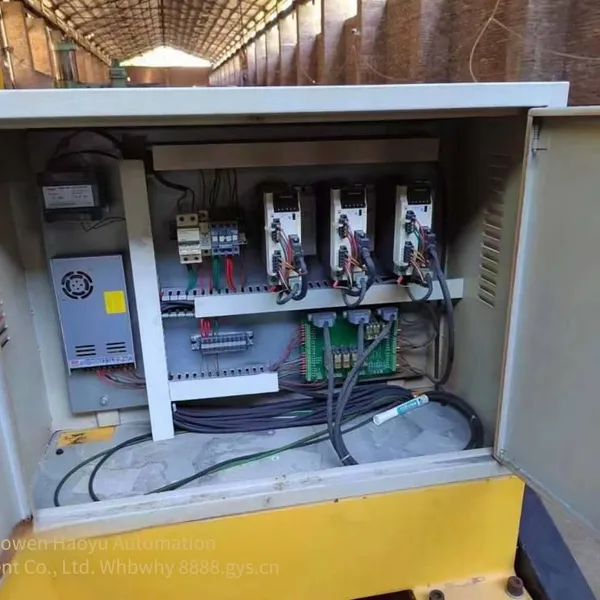

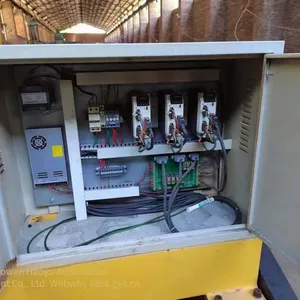

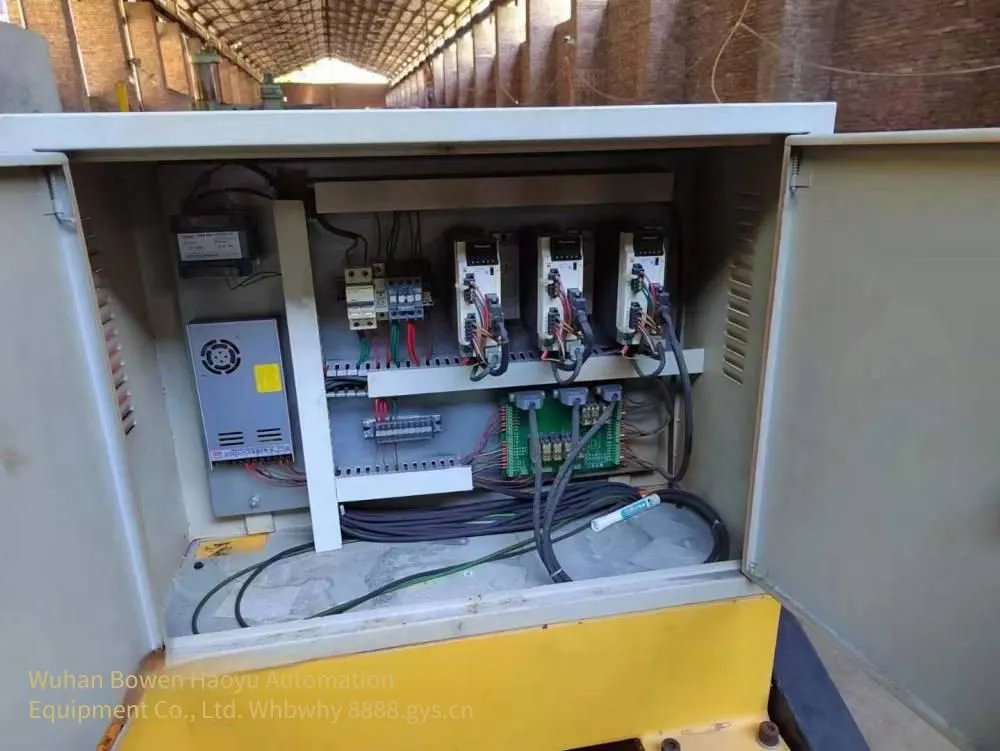

Panasonic drive
|
Both longitudinal and transverse drives use imported Japanese Panasonic servo drives, servo motors plus gear rack drives. The servo motors are equipped with high-precision planetary gear reducers. The high-precision gears are directly installed on the output shaft of the planetary reducer. The longitudinal large vehicle uses bilateral gear rack meshing drive. The encoder is used to detect the error during the machine operation, and the error between the main and auxiliary frames is fed back to the computer to correct the error, thus ensuring the synchronization and smooth operation of the machine. The plasma cutting torch box and the drilling box use the same drive, and there is a hard connection between the two cutting torch boxes. The up and down movement of the plasma cutting torch and the drilling spindle is controlled by the servo motor, and is equipped with a torch collision automatic protection device. The main performance is as follows: Both longitudinal and transverse directions use a dual-axis synchronous drive system. The drive motors are Japanese Panasonic servo motor products; the main drive on the crossbeam is a single-axis transverse drive, and the drive motor is also Japanese Panasonic servo motor products. The precision planetary gear reduction box uses German technology and is suitable for continuous and intermittent working modes. Anti-collision system and limit protection; There are electrical limit switches at both ends of the bidirectional guide rail and on the cutting torch to provide anti-collision protection; Guide rail scraping system; Longitudinal drag chain, including the drag chain trough; transverse drag chain; Cutting torch hanger, with automatic height control adjustment device, the lifting stroke is 150mm, specially used for plasma cutting; arc voltage automatic height control adjustment system; Plasma cutting torch anti-collision device, which is beneficial to protect the cutting torch; |
