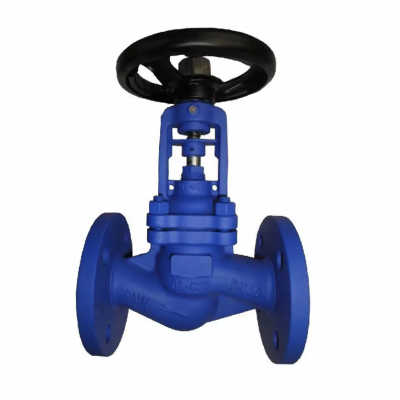

DIN3356 DN40 DN50 PN16 Flange End WCB GG25 Cast Steel Bellows Seal Globe Valve Shutoff Valves Price
US$ 669.40
1 - 4 Set
US$ 512.30
5 - 9 Set
US$ 341.53
≥10 Set
Key Specifications
Get Latest Price
application:
General
Bonnet Material:
316 Stainless Steel, Carbon Steel, Cast Iron
Disc Material:
316 Stainless Steel, Bronze
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIN DN100 PN16 WCB GG25 Ductile Iron Cast Iron Bellows Globe Valve Flange Cast Steel Bellows Seal Globe ValveUS$ 307.38 - 443.99MOQ: 1 Set -
ANSI BS/DIN/JIS High Pressure Carbon Steel Cast Steel Wcb Stainless Steel ASME Full Bore Flange Globe ValveUS$ 341.53 - 1366.12MOQ: 1 Unit
-
ANSI API598 Class 300lb/600lb Flange End WCB CF8M Forged Cast Steel Handle 2''-12'' Hard Seal Globe ValveUS$ 204.92 - 1229.51MOQ: 1 Unit
-
DIN/JIS PN16 Carbon Steel Gray Iron Manual Switch Low Pressure Soft Seal Globe Valve Water One Way ValveUS$ 136.62 - 170.77MOQ: 1 Unit
-
JIS 5K/10K DN15~DN300 Brass Bronze Marine Valve Flange Straight-Through Marine Globe ValveUS$ 341.53 - 546.45MOQ: 1 Unit
application
General
Bonnet Material
316 Stainless Steel, Carbon Steel, Cast Iron
Disc Material
316 Stainless Steel, Bronze
port size
DN15-DN500
power
Manual
structure
GLOBE
model number
J41T/H
brand name
CHX
place of origin
Hebei, China
Connection Type
Flange X Flange, Flange,Thread,Welding
customized support
OEM, ODM
media
Water
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
warranty
1 year
Body material
GG25/GGG50
Bonnet
GG25/GGG50
Stem
Brass,ss,2Cr13,SS304,SS316,Carbon Steel
Disc
GG25,CS/bronze,Ss
Color
Blue, Red, Green, Black, Silver, Grey
Suitable
Water,Gas,Oil
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Certificate
ISO,EAC,WRAS,CE
Keyword
Globe Valve
Specification
DIN Bellows Globe Valve Pn16 main material of parts |
||
Body,Bonnet |
GG25(EN-GJL-250),GGG40,1.0619+N(GS-C25),1.4308(CF8), 1.4408(CF8M) |
|
Stem |
2Cr14,SS304, SS316 |
|
Bellows |
SS304, SS316, SS316L,SS 310S ,Hastelly C |
|
Stem Nut |
Brass |
|
Disc |
ASTM A216 WCB+13CR |
|
Seat |
13Cr/STM A351 CF8/STM A351 CF8M |
|
Hand wheel |
Cast Iron |
|
Gasket |
Graphite |
|
Packing |
Graphite |
|
DIN Bellows Globe Valve Pn16 Standard |
||
Design Standard |
EN 13709:2003,DIN3356 |
|
Face to Face |
EN 558-1,DIN3202 |
|
Flange Standard |
EN1092-1 |
|
Testing Standard |
EN 12266,DIN 3230 |
|
Product Description
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings.It is located in
Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering,technical staff and senior management of more than 60 pesons.The annual out put is over 20000 tons.
Both national and international standard products are produced.The national standard has 12 series,more than 3000
specifications.The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc.The international standard include DIN,Russian standard,BS,ANSI,JIS.Many prodcuts have been exported to many countries such as Ireland,Peru,Russia,Pakistan,Korea,Vietnam,Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products.Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificats.
Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering,technical staff and senior management of more than 60 pesons.The annual out put is over 20000 tons.
Both national and international standard products are produced.The national standard has 12 series,more than 3000
specifications.The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc.The international standard include DIN,Russian standard,BS,ANSI,JIS.Many prodcuts have been exported to many countries such as Ireland,Peru,Russia,Pakistan,Korea,Vietnam,Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products.Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificats.
Production Processes
Certifications
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Packing & Delivery
Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share.
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share.
