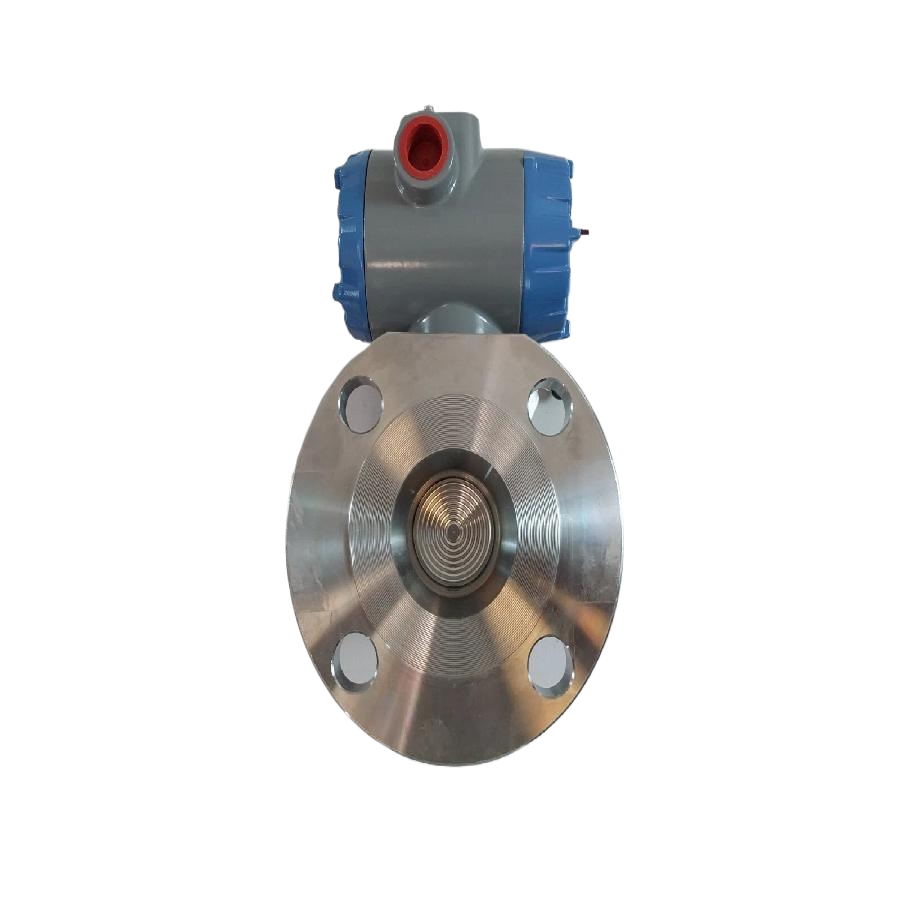

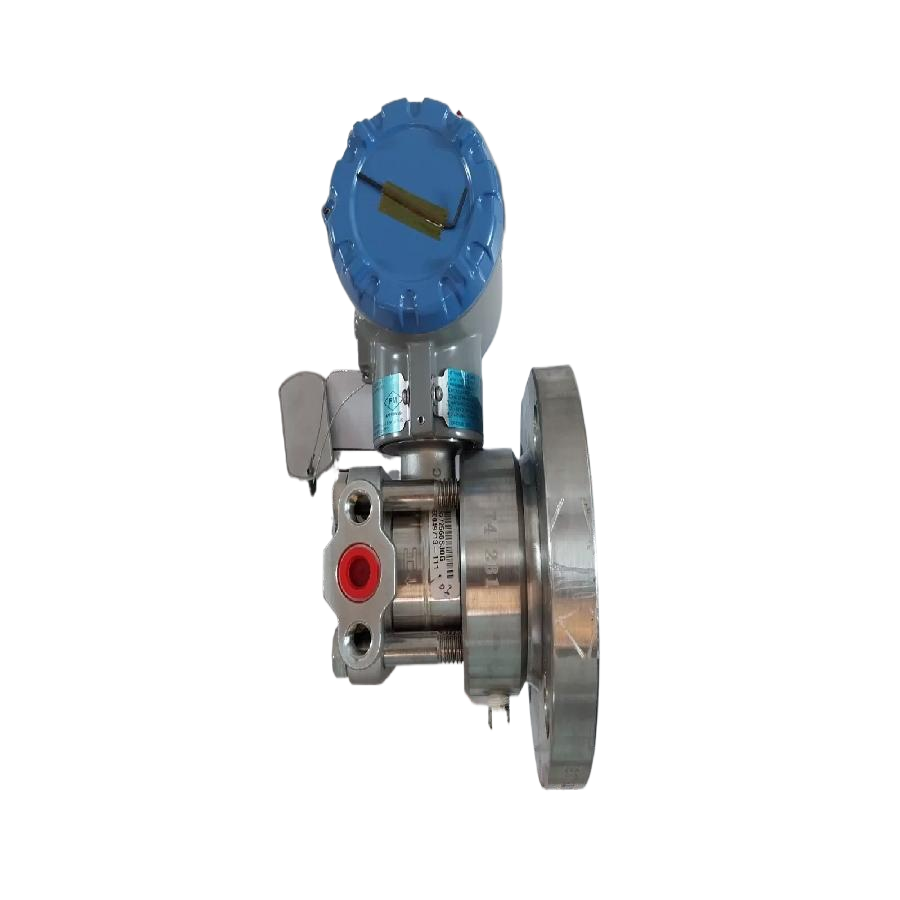

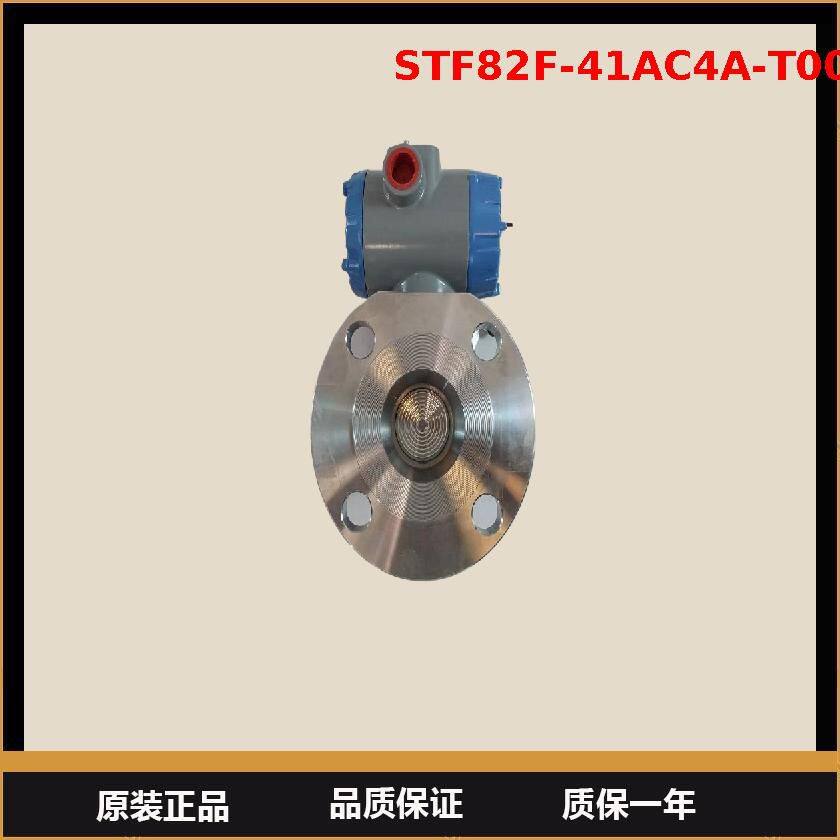

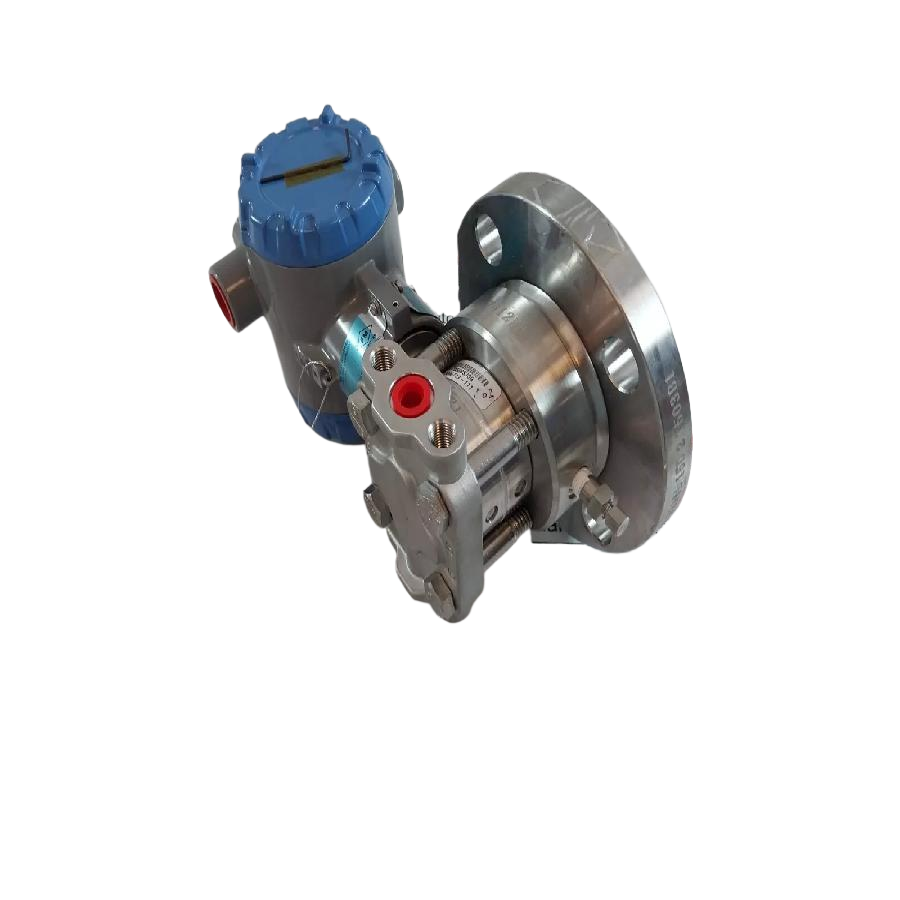

Honeywell STF82F-41AC4A-T00 single flange pressure transmitter technical parameters and description Honeywell STF82F-41AC4A-T00 is a high-precision single flange pressure transmitter suitable for absolute pressure/gauge pressure measurement of liquid, gas or steam. Its compact design, stable performance and wide compatibility make it an ideal choice for industrial process control. Technical parameters: - Measuring range: 0~4MPa (other ranges can be customized); - Output signal: 4~20mA (two-wire system), support HART protocol; - Accuracy: ±0.075%FS (typical value); - Medium temperature: -40℃~+120℃ (up to +150℃ with heat sink); - Ambient temperature: -40℃~+85℃; - Protection level: IP67, adaptable to harsh working conditions; - Process connection: 1/2"NPT flange, 316L stainless steel isolation diaphragm; - Power supply voltage: 12~36VDC; - Long-term stability: ±0.1%FS/year. Product features: - Adopting silicon resonant sensor technology, it has strong vibration and impact resistance; - Fully welded structure design to ensure long-term sealing; - Local LCD display (optional), support zero/span on-site calibration; - Passed international certifications such as CE and SIL, suitable for petrochemical, electric power, pharmaceutical and other industries. The transmitter is known for its high reliability and low maintenance requirements. It can be seamlessly integrated into DCS/PLC systems to optimize process control efficiency.
