Ejoin 32 Ports VoIP Gateway Modem 32 SIMs GSM Modem For VoIP And SMS Business ACOM532L-32

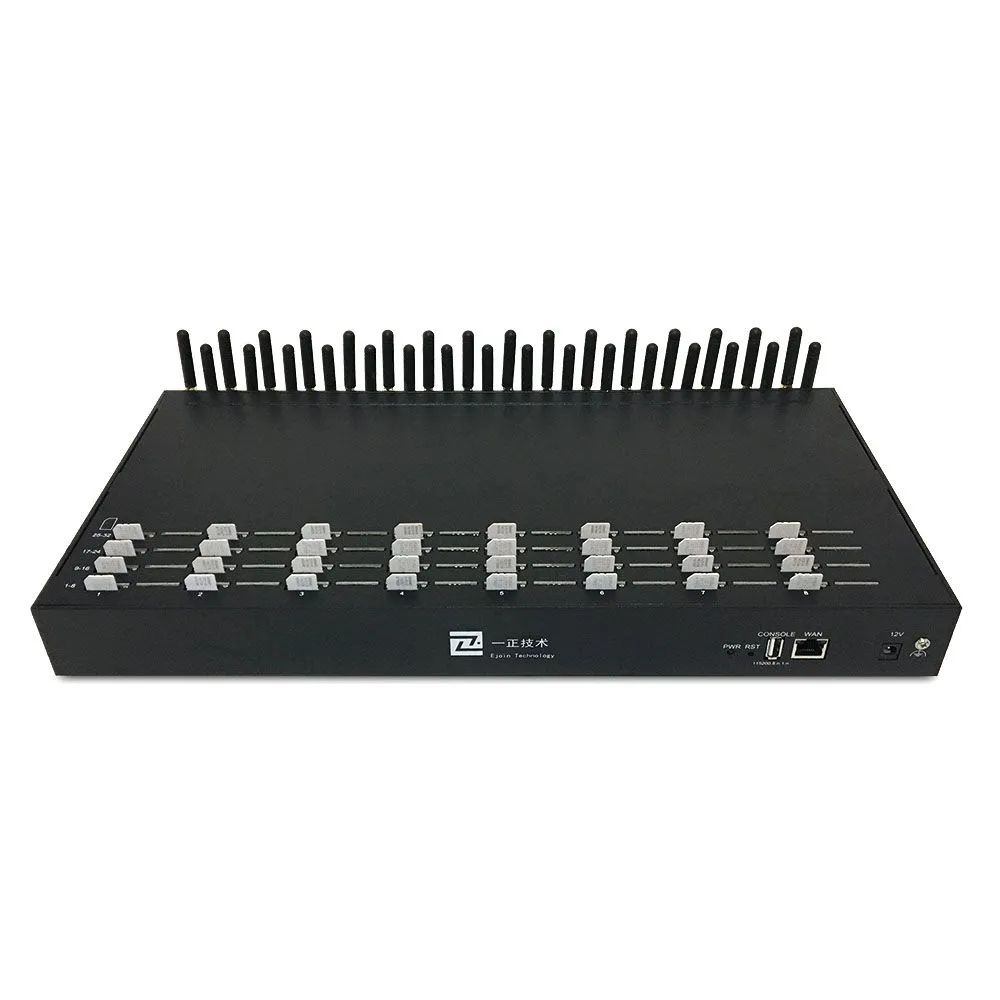

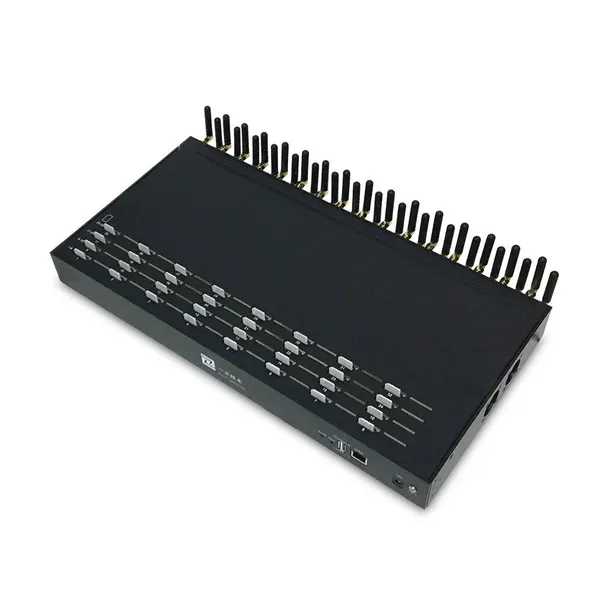

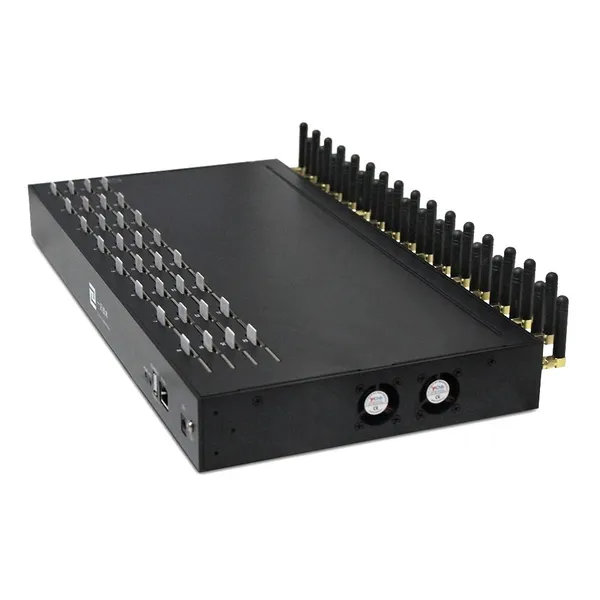

ACOM532L-32 is a multi-functional and high performance 4G VoIP Gateway, which is mainly used for call termination (VoIP to Mobile) and origination (Mobile to VoIP). It can enable to make 32 calls simultaneously. It is based on SIP and compatible with Asterisk, 3CX, Elastix, IPPBX, VOS, VPS operating platform.
ACOM532L-32 VoIP Gateway also can be used as a Network SMS modem which supports SMS sending, receiving, group sending. It has flexible HTTP/SIP API for SMS service. Customers can develop SMS server easily by the API.
Special Features:
SIM Card Rotating
IMEI Change
Call Duration Limitation for SIM Card
Port Inter-Calling/SMS
Get SIM Number/Balance auto
Call statistics: ASR,ACD,PDD
HTTP API for SMS/USSD/AT Command
SMPP Server/Client
CDR checking
Auto Recharge
Call Back/Wait
Support SIM POOL
VPN(pptp)
Station intelligent switching
ERMS(Ejoin Remote Management System)
ECMS(Ejoin Centralized Management system)
Fake Ring-back
Dial Plan/Prefix Inward Translation/Intelligent Routing
Specification:
Model |
ACOM 532L-32 |
Number of Channels |
32 channels |
Number of slots |
32 Sim |
Frequency |
GSM: 850/900/1800/1900MHz |
SIP Specification |
SIP/2.0 RFC3261 |
| Session Timer RFC4028 | |
| STUN | |
Network Protocols |
DHCP/PPPoE/VPN(pptp) |
| NTP | |
| Telnet/HTTP/FTP/TFTP | |
| Encryption:Ejoin,VOS2000,RC4,XOP.Base64 | |
Telephony Features |
Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list |
Telephony Signaling |
DTMF tone detection/generation |
| DTMF relay: in-band, RFC 2833 and SIP info | |
| Call forward: unconditional, no answer and busy | |
| N-way conferencing | |
| Caller ID display/generation, Mobile Number Portability | |
Voice Capability |
Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC G722,G726-32,PCMA,PCMU |
| Echo cancellation | |
| Silence suppression & detection（VAD, CNG） | |
| Adaptive jitter buffer | |
| Volume adjustable | |
| IVR customized | |
Number of Ports |
1 WAN 10/100Base-T Ethernet(RJ-45 connector) |
| 1 Console(USB) | |
LEDs |
1 Power and 32 groups of card online and running status indicator |
Power Supply |
100-240VAC, 50 - 60 Hz IN, 12V/8A OUT |
Operating Environment |
Operating temperature: 0 - 50ºC |
| Operating humidity: 10 – 90%RH | |
Warranty |
12 Months |
Mobile Features:
SMS Send, Receive and Forward(GSM/SIP/HTTP)
SMS Inbox
AT Command , USSD
SMS Format: PDU/TXT
PIN Code Management
Caller ID Hidden(need SIM Card support)
MNP
Internet Access
Maintenance and Management:
Multi-language Interface
Role Management
USB Serial COM
Configuration Backup and Restore
Support HTTP/TFTP Upgrade
