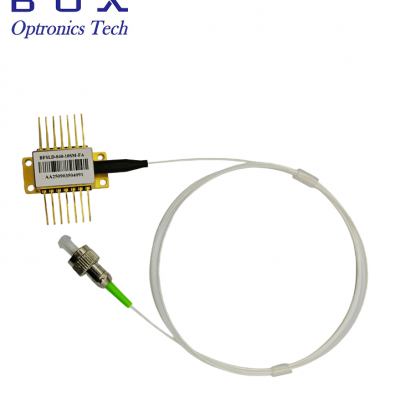

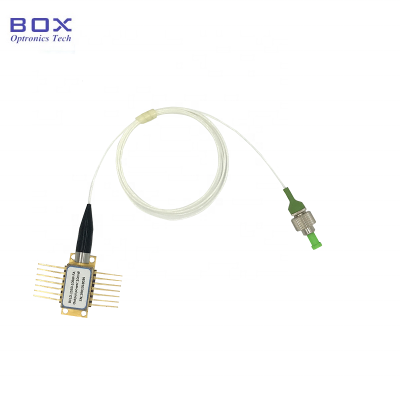

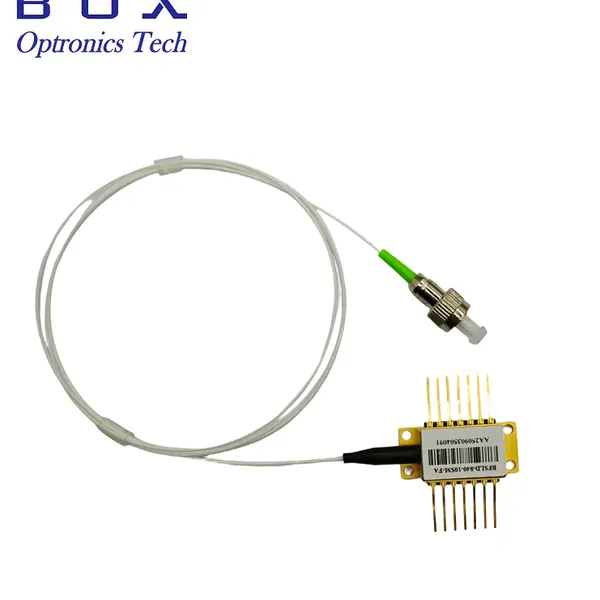

840nm 10mW Superluminescent Diode, FWHM >45nm, 14PIN BTF Package, for Medical OCT
Product Spotlights
1. 14PIN BTF package, built-in TEC, stable power.
2. 840nm golden wavelength, specially designed for ophthalmic OCT.
3. FWHM > 45nm ultrawideband, clear details.
4. Compact package, pin-compatible with standards, easy to integrate.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Product Certifications:
ISO9001, Others
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8PIN 50nm 1310nm 1mW SLED Superluminescent Diode, Low Polarization, Applications: Fiber Optic Gyroscopes FOG, Optical Coherence Tomography OCTNegotiableMOQ: 1 Piece -
976nm 600mW Pump Laser Diode, With FBG, BTF Package, Fiber-coupled Laser, CW, With TEC Cooler, for EDFA ApplicationNegotiableMOQ: 1 Piece
-
1683±1nm 10mW DFB Fiber-coupled Laser Diode, 14PIN Butterfly Package, SM Fiber, FC/APC Connector, C2H6 Monitoring, TDLAS, Gas SensingUS$ 1155MOQ: 1 Piece
-
1550nm DFB Laser Source Module, 10-100mW Output Power, Power Adjustable, SM/ PM Fiber-coupledNegotiableMOQ: 1 Piece
-
488nm 520nm 532nm 650nm 785nm 850nm FP Fiber-coupled Laser Diode, 14PIN Butterfly Package, Built-in Thermistor and TECNegotiableMOQ: 1 Piece
840nm 10mW Superluminescent Diode, FWHM >45nm, 14PIN BTF package, for Medical OCT
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Notes |
Operating current |
ITH |
- |
180 |
220 |
mA |
CW |
Output power |
P |
10.0 |
- |
- |
mW |
CW, ITH =180mA |
3dB bandwidth |
Δλ |
- |
45 |
- |
nm |
CW |
Center length |
λC |
820 |
840 |
860 |
nm |
CW |
TEC current |
IC |
- |
- |
2 |
A |
TC=-45~+70℃ |
TEC voltage |
VC |
- |
- |
3.5 |
V |
TC=-45~+70℃ |
Thermistor resistance |
Rth |
9.5 |
10 |
10.5 |
KΩ |
TC= 25℃ |
Thermistor B constant |
B |
- |
3950 |
- |
K |
- |
