Home > Electrical & Electronics > Electronic Tube & Transistor > Laser Diode > 840nm 10mW FWHM>40nm SLD Broadband Light Source, Integrated Driver Circuits, Hi780 or PM850 Fiber, for OCT Applications
840nm 10mW FWHM>40nm SLD Broadband Light Source, Integrated Driver Circuits, Hi780 or PM850 Fiber, for OCT Applications
Product Spotlights

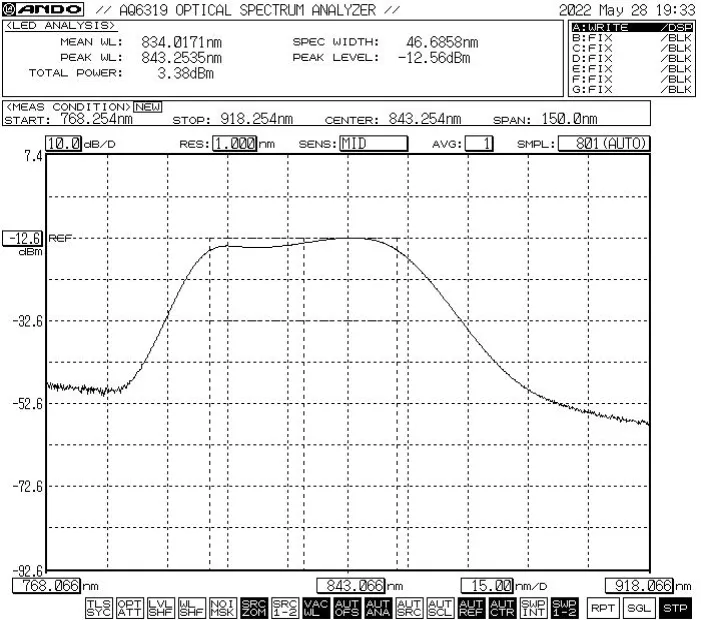

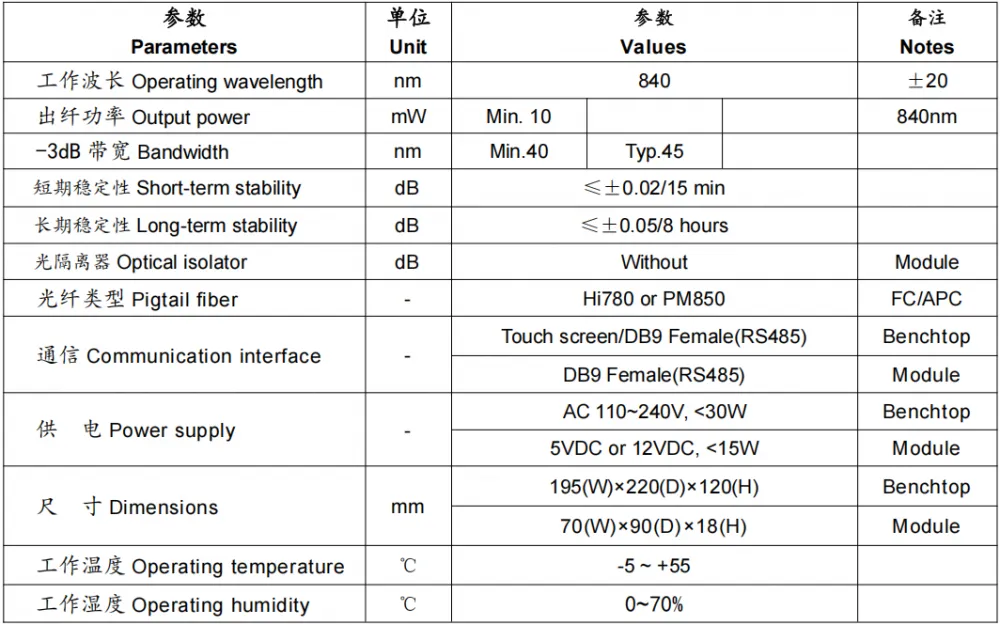

With output power greater than 10mW, -3dB bandwidth over 40nm, flat spectrum, low ripple, and excellent long-term stability.
It supports touchscreen benchtop and modular configurations with an RS-485 communication interface and monitoring software for system integration. Suitable for fiber sensing and medical imaging.
It supports touchscreen benchtop and modular configurations with an RS-485 communication interface and monitoring software for system integration. Suitable for fiber sensing and medical imaging.
US$ 1031
≥1 Piece
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
