Shot Blasting Machine Spare Parts and Shot Blasting Wheel Impeller
Q034 China Wholesale Sand Blasting Machine Spare Parts Sand Blast Turbine Wheel Impeller Head
Our company produces the direct-connect 034 motor type cast blast volume, high efficiency, long service life of wear parts, etc. This type of turbine consists of blade wheel, blade, control cage, shot wheel, feeding tube, guard board, shield, spindle, and other components of the motor, motor with turbineadopts one-piece flange installation on the chamber body, has the high stability, small vibration, etc.
Projectile by import tube into the points in round pill, pre-accelerated by directional thrown mouth, after the blade continue to accelerate, in turn, a strong attack to high-speed projectile to the workpiece surface, in order to achieve the purpose of cleaning. The blasting equipment has the following advantages:
A) efficient: special points and shot blasting wheel structure, blasting ratio can reach 17.5 kg/min) Kw

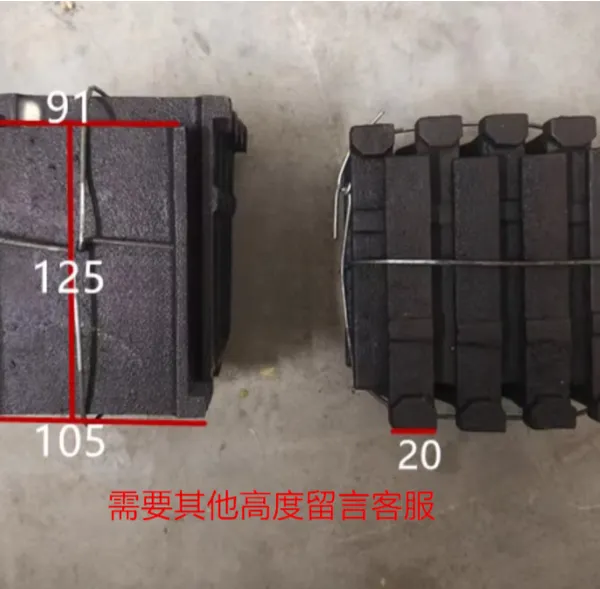

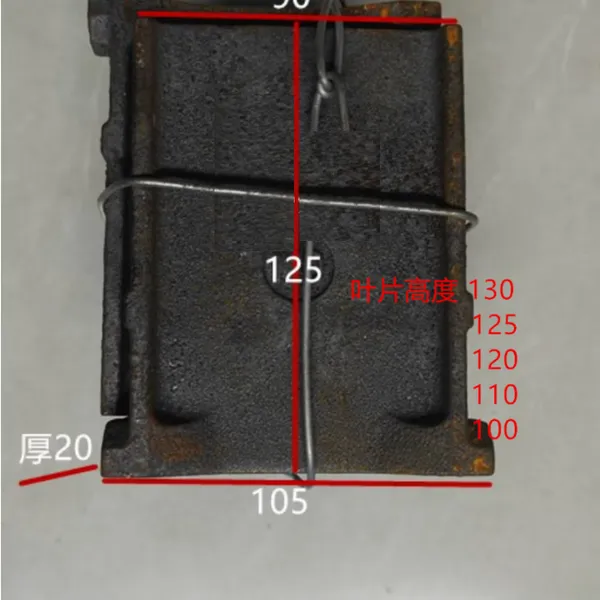

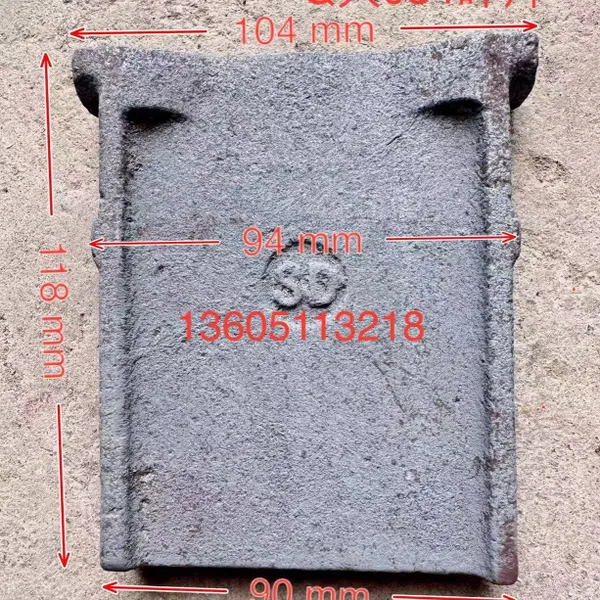

B) blade quickly: installation for the shot blasting machine blade is inserted, the impeller center on the effect of centrifugal force in the process of the impeller rotating and fixed blade, so don't need any clamping tools. Removing blade, just tap outside blade side can easily be unloaded from the impeller center leaf. Just 5 ~ 10 minutes, remove the eight leaves, and can check points at the same time the abrasion of wheel and directional set.
C) adopts double disc impeller, good stability, concentrated mass ejection area, uniform blast. D) in this shot blasting machine blade, maru, orientation, etc., the use of special high chromium wear-resistant cast iron materials, makes the control of blade weight difference within 5 grams, greatly reducing the noise of the shot blasting machine run time (less than 85 db), prolong the service life of wearing parts. E) beautiful appearance, structure, manufacturing and maintenance. Shot the workpiece surface quality to meet the workpiece after visual inspection and magnetic particle inspection of common criteria.
| Model | Diameter of rotation(mm) | Rotating speed (r/min) |
Abrasive flow (kg/min) |
Motor power (kw) |
Type |
| Q0343Z4 | 260 | 2900 | 100 | 4 | Direct-driven |
| Q0343Z5.5 | 260 | 2910 | 120 | 5.5 | Direct-driven |
| Q034Z7.5 | 380 | 2930 | 150 | 7.5 | Direct-driven |
| Q034Z11 | 430 | 2930 | 200 | 11 | Direct-driven |
| Q034Z15 | 430 | 2945 | 250 | 15 | Direct-driven |
| Q035 | 420 | 2600 | 250 | 15 | Belt-driven |
| Q035 | 500 | 2250 | 360 | 22 | Belt-driven |
| Q035 | 500 | 2250 | 480 | 30 | Belt-driven |
