Specialized motor for shot blasting machines

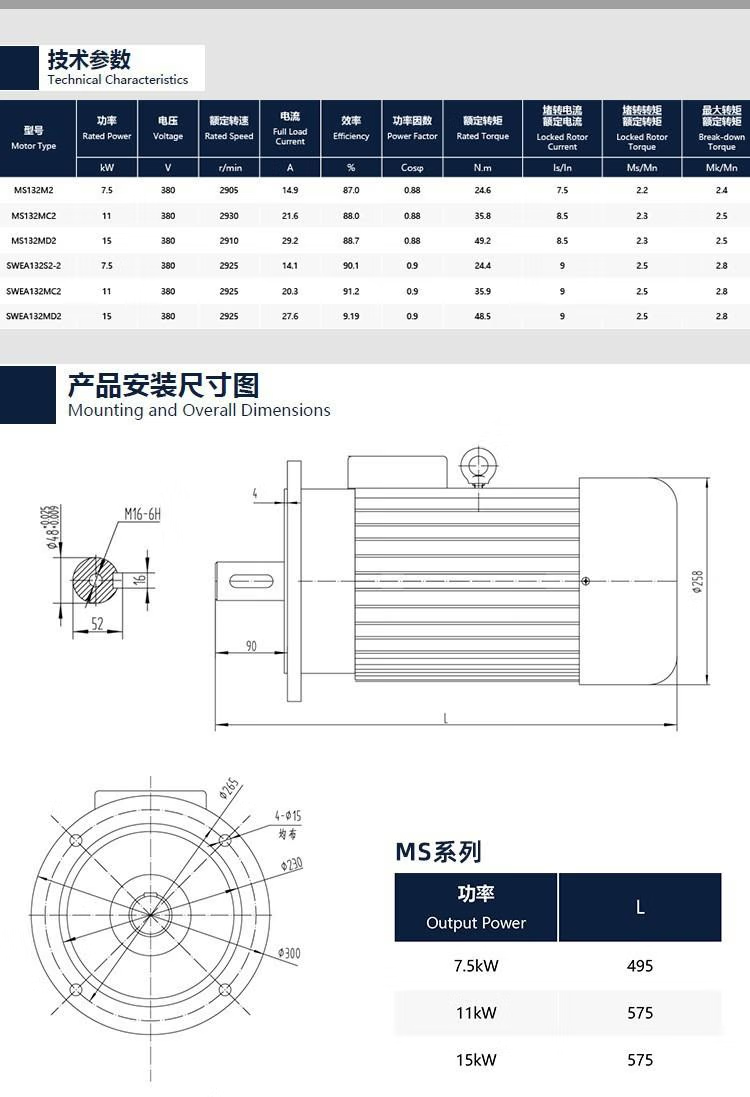

The parameters of the specialized motor for shot blasting machines vary greatly depending on the equipment model, power, and application scenario, but the core parameters usually include power, voltage, frequency, speed, protection level, and insulation level. The following is a summary of parameters based on common models and industry standards:
Rated power: The power range of shot blasting machine motors is wide, ranging from small equipment of 1.1kW to large industrial models of 200kW. Common power specifications include 1.1kW, 2.2kW, 3.75kW, 5kW, 7.5kW, 11kW, 15kW, etc. For example, the Q376 hook type shot blasting machine uses a 2 × 7.5kW motor, while the Yixun YX550 shot blasting machine is equipped with a 2 × 11kW head motor.
Rated voltage: The vast majority of industrial shot blasting machine motors use three-phase 380V voltage, and some models can be customized with other voltages (such as 415V) to adapt to different regions or special needs.
Rated frequency: The standard frequency is 50Hz, and some products also support 60Hz to meet international usage requirements.
Rated speed: The shot blasting machine motor is usually a high-speed motor, with a rated speed mostly between 2800-3000 revolutions per minute. For example, the 7.5kW motor speed of Dongjiu shot blasting machine is 2800R/min, while some dedicated motors can reach a maximum speed of 3000r/min.
Protection level: IP54 or IP55 levels are commonly used, with dust and splash proof capabilities to adapt to dust and vibration in the working environment of shot blasting machines.
Insulation level: Mainstream motors use F-class insulation, which has high heat resistance and reliability, and is suitable for long-term continuous operation.
Other parameters: The motor type is mostly three-phase asynchronous motor (such as Y2 series), with weight varying depending on power (such as about 100kg for an 11kW motor), and copper wire winding is used to ensure efficiency and lifespan.
Attention: The specific motor parameters need to match the model of the shot blasting machine, and it is recommended to follow the technical specifications provided by the equipment manufacturer.
Shot Blasting Machine Spare Parts and Shot Blasting Wheel Impeller
Q034 China Wholesale Sand Blasting Machine Spare Parts Sand Blast Turbine Wheel Impeller Head

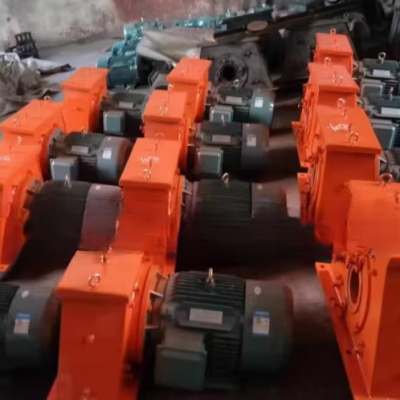

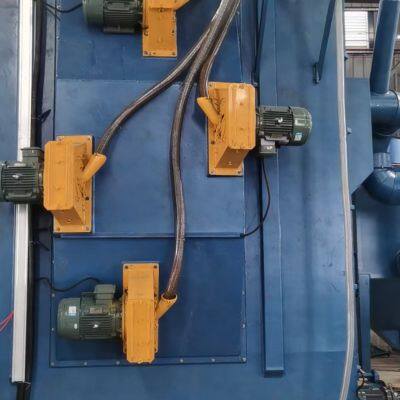

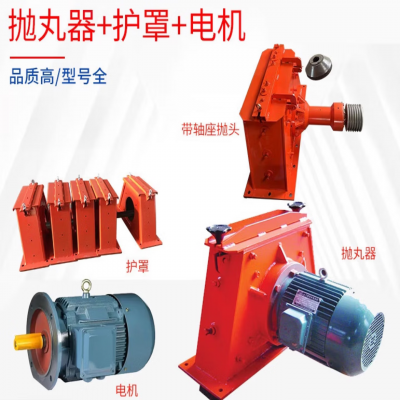

Our company produces the direct-connect 034 motor type cast blast volume, high efficiency, long service life of wear parts, etc. This type of turbine consists of blade wheel, blade, control cage, shot wheel, feeding tube, guard board, shield, spindle, and other components of the motor, motor with turbineadopts one-piece flange installation on the chamber body, has the high stability, small vibration, etc.
Projectile by import tube into the points in round pill, pre-accelerated by directional thrown mouth, after the blade continue to accelerate, in turn, a strong attack to high-speed projectile to the workpiece surface, in order to achieve the purpose of cleaning. The blasting equipment has the following advantages:
A) efficient: special points and shot blasting wheel structure, blasting ratio can reach 17.5 kg/min) Kw
B) blade quickly: installation for the shot blasting machine blade is inserted, the impeller center on the effect of centrifugal force in the process of the impeller rotating and fixed blade, so don't need any clamping tools. Removing blade, just tap outside blade side can easily be unloaded from the impeller center leaf. Just 5 ~ 10 minutes, remove the eight leaves, and can check points at the same time the abrasion of wheel and directional set.
C) adopts double disc impeller, good stability, concentrated mass ejection area, uniform blast. D) in this shot blasting machine blade, maru, orientation, etc., the use of special high chromium wear-resistant cast iron materials, makes the control of blade weight difference within 5 grams, greatly reducing the noise of the shot blasting machine run time (less than 85 db), prolong the service life of wearing parts. E) beautiful appearance, structure, manufacturing and maintenance. Shot the workpiece surface quality to meet the workpiece after visual inspection and magnetic particle inspection of common criteria.
| Model | Diameter of rotation(mm) | Rotating speed (r/min) | Abrasive flow (kg/min) | Motor power (kw) | Type |
| Q0343Z4 | 260 | 2900 | 100 | 4 | Direct-driven |
| Q0343Z5.5 | 260 | 2910 | 120 | 5.5 | Direct-driven |
| Q034Z7.5 | 380 | 2930 | 150 | 7.5 | Direct-driven |
| Q034Z11 | 430 | 2930 | 200 | 11 | Direct-driven |
| Q034Z15 | 430 | 2945 | 250 | 15 | Direct-driven |
| Q035 | 420 | 2600 | 250 | 15 | Belt-driven |
| Q035 | 500 | 2250 | 360 | 22 | Belt-driven |
| Q035 | 500 | 2250 | 480 | 30 | Belt-driven |
