Steel Wire Mesh Belt Conveyor Shot Blasting Machine
Steel Belt Shot Blast Machine, Continuous Conveying Uniform Cleaning, for Surface Treatment of Various Small Medium-Sized, Regular Irregular Workpieces
Products Description
Continuous shot blast machine with metal wire mesh conveyor for the treatment of Aluminum die-castings and alloys (automotive, alimentary, furnishing, lighting, telecommunications, electric tools fields, etc.) Cast iron castings steel pressing pieces Brass molded pieces

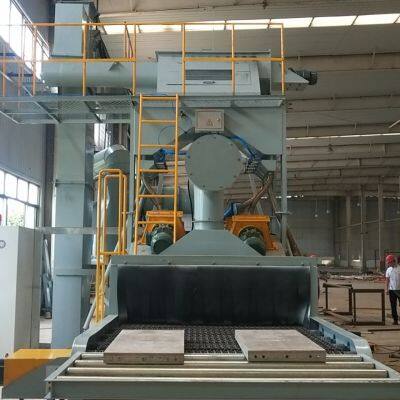

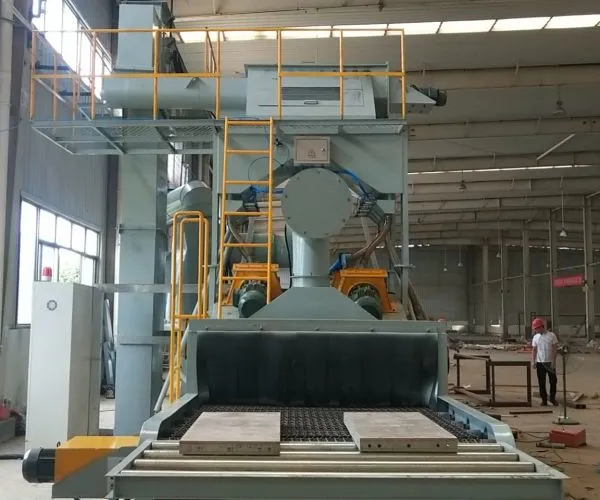

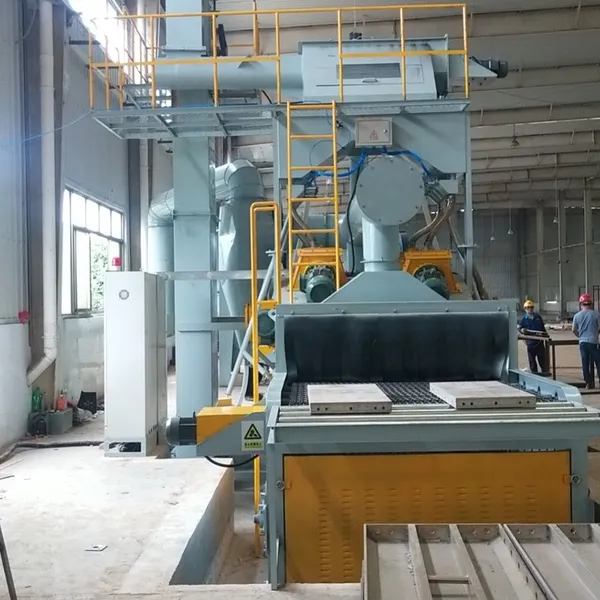

The work-pieces are placed on the wire mesh conveyor with high wear resistance, shot blasted both above and below in single pass through the blast chamber. Progress speed of the metal wire mesh conveyor and the blast wheel rotation can be changed through the Inverter. The number of blast wheels and the installed powers can vary depending on the models.
PRODUCT PARAMETER
This machine is not a standard machine, any parameters can be customized according clients' requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.
Steel Belt Shot Blast Machine, with Continuous Conveying Uniform Cleaning, for Surface Treatment of Various Small Medium-Sized, Regular Irregular Workpieces
FAQ
1.How to install the machine?
Complete equipment of shot blasting machine, Standard equipment can choose remote guided installation. We will arrange 1-2 engineers to guide the installation and assembly of non-standard equipment at your factory.
2.Do you sell steel shot or steel grit which can be uses in shot blasting machine?
We can provide products such as steel shot, steel sand, steel wire cutting shot, stainless steel shot, and other metal abrasives related to surface cleaning and anti corrosion.
3.How long is your delivery time? Generally Standard shot blasting machine 7-20 workdays. Non Standard Shot blasting machine is 20-60 workdays. Shot peening machine is 30-60 workdays. It is according to quantity and machine model.
4.What is the shot blasting machine? Shot blasting is a method used to clean, strengthen (peen) or polish metal. Shot blasting is used in almost every industry that uses metal, including aerospace, automotive, construction, foundry, ship building rail, and many others.
5.What are your pre-sales and after sales services? Pre-sales services include: consulting products, samples, technical solutions and quotations; After sales service includes: 24-hour response, engineers' online guidance, engineers' installation in the customer's factory, and training on how to install and use the product.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
What are the advantages of the steel wire mesh belt through type cleaning machine?

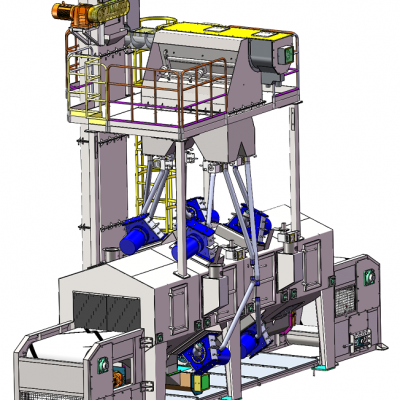

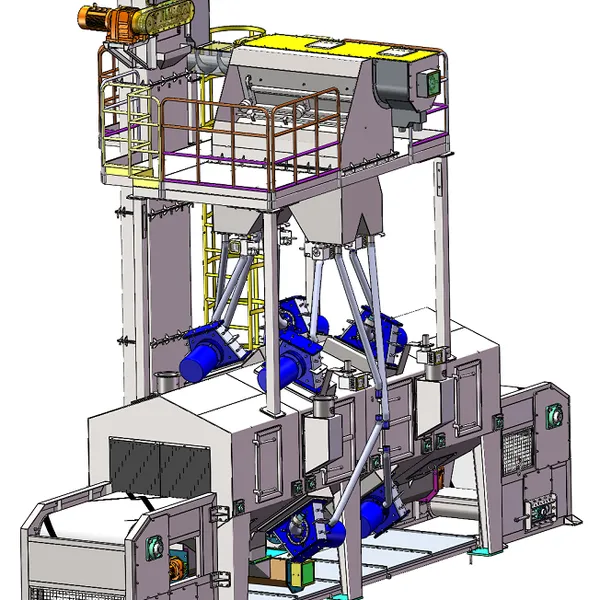

Detailed explanation of the structure of the steel mesh belt through type cleaning machine

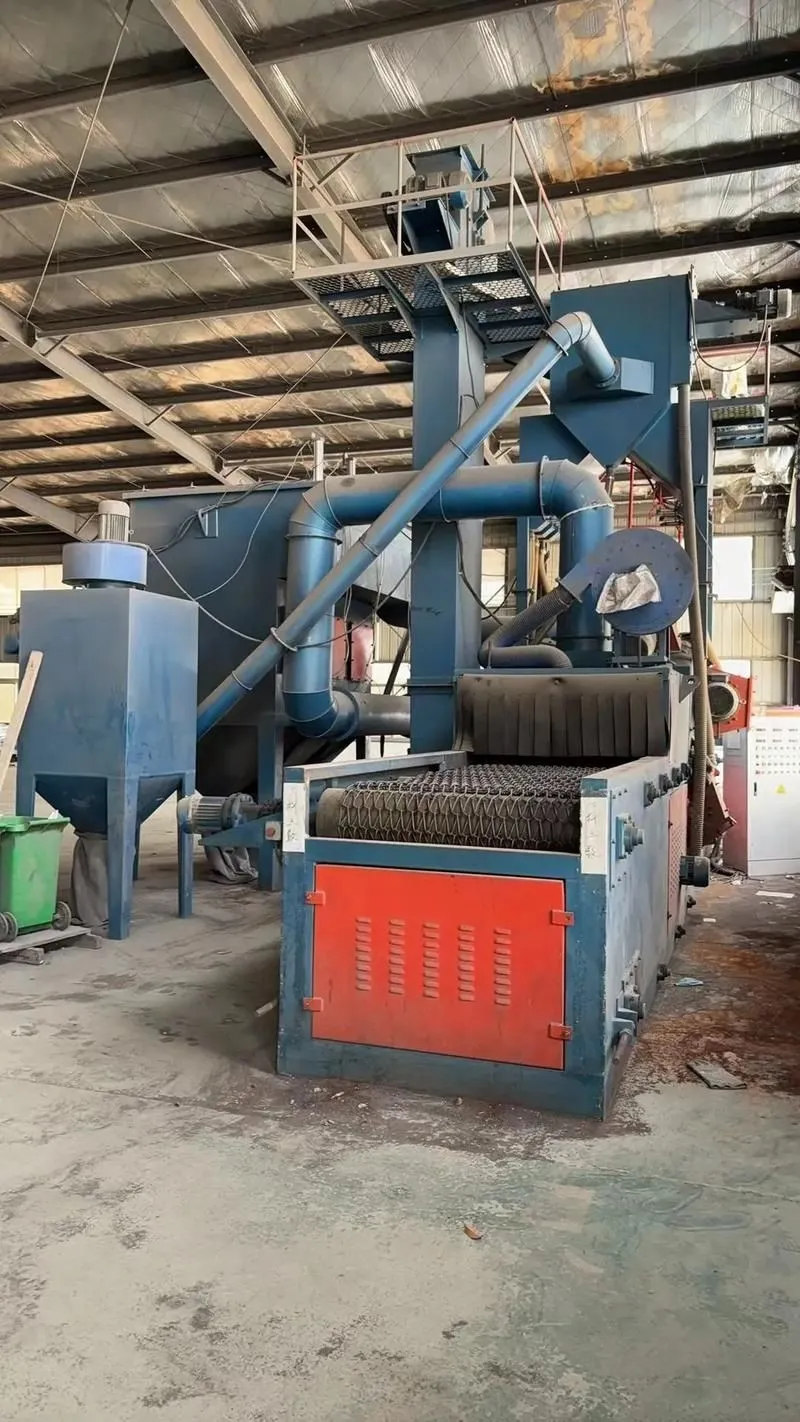

The steel mesh belt through type cleaning machine is a common surface treatment equipment in industrial production, mainly used for rust removal, descaling, and surface cleaning of small and medium-sized workpieces such as steel and profiles. Today, Yancheng Ruigang Machinery Co., Ltd. will learn more about the core components, workflow, application scenarios, and equipment advantages of the steel mesh belt through type cleaning machine from four aspects.
1, Core components
# 1. Steel mesh belt conveyor system
-Composed of driving steel mesh belt, tensioning device, and guide wheel
-The surface of the steel mesh belt is usually made of manganese steel, which is wear-resistant and not easily deformed
-By driving the chain with a motor, the steel mesh belt is driven to circulate, achieving continuous conveyance of workpieces
# 2. Clean the room body
-The overall structure adopts steel plate welding, with wear-resistant lining plate laid on the inner wall
-Good sealing performance of the chamber, reducing dust overflow
-There are observation windows and maintenance doors at the top for easy equipment maintenance
# 3. Shot blasting cleaning system
-Composed of shot blasting equipment, blades, directional sleeves, etc
-The shot blasting machine accelerates the projectile through the centrifugal force generated by high-speed rotation
-The projectile impacts the surface of the workpiece at a certain angle to achieve cleaning effect
# 4. Dust removal system
-Including dust collection hood, pipeline, dust collector, and induced draft fan
-The dust generated during the cleaning process is efficiently collected
-Using a pulse bag filter, the purified air can be directly discharged
# 5. Electrical control system
-Equipped with PLC control system to achieve automated operation
-Equipped with emergency stop button and fault alarm function
-Adjustable cleaning time, shot blasting intensity and other parameters
2, Workflow
1. The workpiece enters the steel mesh belt conveyor system through the feeding device
2. The steel mesh belt drives the workpiece into the cleaning chamber
3. The shot blasting machine starts working, and the projectile impacts the surface of the workpiece
4. The cleaned workpiece is conveyed to the discharge port through a steel mesh belt
5. The dust removal system operates synchronously to collect dust during the cleaning process
3, Application scenarios
-Pre treatment of steel structural components, such as bridges, pressure vessels, etc
-Shipbuilding: Rust removal treatment of ship hull sections
-Auto parts: cleaning of engine cylinder block, frame, etc
-Casting industry: surface sand removal and deoxidation of scale on castings
4, Equipment advantages
-High efficiency of continuous operation, suitable for large-scale production
-Uniform cleaning effect to avoid surface damage to the workpiece
-High degree of automation, reducing manual operations
-Energy saving and environmentally friendly, meeting the requirements of industrial production environmental protection
The steel mesh belt through type cleaning machine is widely used in industries such as mechanical manufacturing and construction due to its efficient and stable performance. Yancheng Ruigang Machinery Co., Ltd. hereby reminds all users that when choosing, equipment configuration should be comprehensively considered based on factors such as workpiece size and cleaning requirements to ensure production efficiency and cleaning quality.
