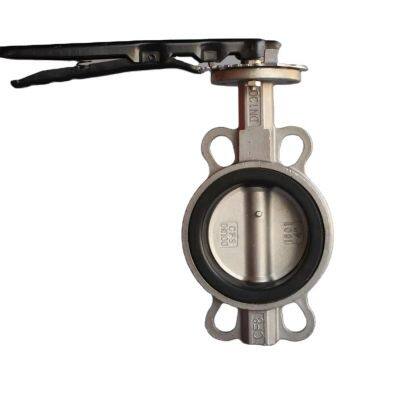

AeroForm Series Stainless Steel Wafer Type Butterfly Valve - Bare Shaft
1.5in~48in; PN6~PN20 (Class125~150)
Product Advantages
Superior Material Composition: Our valves are cast with chemical compositions at the highest end of international standards. For example, our ASTM A351 CF8 stainless steel contains 9% Nickel—the maximum allowable—to ensure superior corrosion resistance and extended service life.
Surface Integrity: Our castings are guaranteed to be free from surface porosity, shrinkage, or unauthorized weld repairs, ensuring maximum material strength and pressure-holding capability.
Future-Proof Automation Ready: ISO 5211 actuator pads enable future pneumatic/electric upgrades without valve replacement
Innovative & Compact Design: In a market of conventional designs, its unique and modern appearance immediately sets it apart.
Standards and Certifications
Design and Manufacture: ASME B16.34; ASME VIII; API 609
Leakage Class: API 598 (Bi-directional Zero Leakage)
Side Flange Standards: ANSI 125LB/ 150LB; ASME; AS-D/E; BS; DIN; EN PN6/ PN10/ PN16; GB; GOST; HG/T; JIS 5K/ 10K
Top Flange (Actuator Mounting) : ISO 5211; GB 90°
Face-to-Face Dimension: ISO 5752; MSS SP-68; ASME B16.10; EN 558-1; API 609
Testing Standards: API 598; EN 12266-1; ISO 5208; BS 6755-1
Certifications: ISO 9001; CE; BV; API 609; API 598; EAC; SIL3；
Specification of the Valve | |
|---|---|
Type of Connection | Wafer |
Actuation | Bare Stem: With mounting flange per ISO 5211 |
Size | DN40~DN1200 (1.5in~48in ) |
Pressure | PN6~PN20 (Class 125/150) |
Testing Pressure | Shell: 1.5 x Rated Pressure; Seat: 1.1 x Rated Pressure (acc. to API 598) |
Medium | Water, Oil, Gas, Steam, Corrosive Media, Slurry, etc. |
Medium Temperature | -25~180℃ Depends on seat material |
Material of the Valve | |
|---|---|
Body | Stainless Steel: CF8 (304), CF8M (316), CF3 (304L), CF3M (316L), JS1030, 1.4406 Duplex Stainless Steel: 2205, 2507 Austenitic Stainless Steel: 1.4529, CN7M (Alloy 20) |
Disc | Cast Iron: DI, CI Stainless Steel: CF8 (304), CF8M (316), CF3 (304L), CF3M (316L), CD3MN (Duplex 2205), CE3MN (Super Duplex 2507), 1.4529 (926) Aluminum Bronze: C95400, C95800 Nickel Alloy: CW6MC (Hastelloy C-276 eq.) |
Shaft | Carbon Steel: 45# Stainless Steel: SS410, SS416, SS420; SS304, SS316, SS304L, SS316L; 17-4PH (SS630); Duplex 2205, Super Duplex 2507, 1.4529 Nickel Alloy: Monel K500, Hastelloy C-276 |
Soft Seat | Elastomers: EPDM, HTEPDM, NBR (Nitrile Rubber / Buna-N), SIL (VMQ), FKM (VITON™), HYPALON™ Plastics: PTFE, PFA, UHMWPE |
High-Density Casting: Zero Porosity Guaranteed
Our butterfly valve stainless bodies are produced from a high-density casting process. This ensures a solid, non-porous structure, completely free from sand holes and other casting defects. The result is superior strength and maximum durability.
THE CORE OF MODERN AUTOMATION
The AeroForm Series is engineered for seamless integration. We combine superior metallurgy with high-precision manufacturing to create actuator-ready butterfly valves that deliver unwavering reliability in any automated flow control system.
Superior Material Composition
We cast our CF8 stainless steel with Nickel content at 9%—the high end of the ASTM standard. This commitment to superior chemistry ensures enhanced corrosion resistance and a longer, more reliable service life for your automated processes.
Future-Proof Automation Ready
Every valve features a universally compatible ISO 5211 mounting pad, precision-machined by our CNC centers. This guarantees flawless, direct mounting of any standard actuator, simplifying both initial installation and future upgrades without costly modifications.
Guaranteed Casting Integrity
Our foundry expertise ensures every valve body is free from porosity, shrinkage, or unauthorized weld repairs. This perfect surface integrity provides maximum structural strength and pressure-holding capability, eliminating hidden risks in your system.
