High Performance Resilient Seat Swing Check Valve Manufacturer
Product Spotlights
Resilient seat design ensures zero leakage and stable performance. Low pressure loss, corrosion-resistant, durable structure. Effectively prevents medium backflow. Widely used in water supply, sewage and industrial pipelines.
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Cast Iron
Function:
Other, Sfcv Rubber Lobe
Application:
Other, Water Industrial Usage
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Cast Iron & Ductile Iron Silent Check Valve for Water Supply Pipeline SystemNegotiableMOQ: 1 Piece -
Flanged End Slow Closing Swing Check Valve for Industrial Water/Oil/Gas Pipeline SystemsNegotiableMOQ: 1 Piece
-
EMS Pn16 Hydraulic Control Slow Closing Check ValveNegotiableMOQ: 1 Piece
-
DIN Standard With Flanges in DN500-DN600 Ball Check ValveNegotiableMOQ: 1 Set
-
Durable High Quality Dual Plate Wafer Check Valve, Wafer Type, Easy InstallationNegotiableMOQ: 1 Set
Material
Cast Iron
Function
Other, Sfcv Rubber Lobe
Application
Other, Water Industrial Usage
Structure
Swing
Standard
DIN
Flow Direction
Unidirection
Media
Water
Temperature
Low Temperature
Pressure
Other, DIN3202-F6, BS 5153
Connection Form
Other, Pn 10 /16
Transport Package
Bubble Bags & Wooden Case
Specification
Rubber seated/DN50- 300
Swing check valve, also known as one-way valve or check valve, is used to prevent the backflow of medium in the pipeline. A valve that opens or closes by the flow and force of the medium to prevent reverse flow of the medium is called a check valve. Check valve
| SIZE | DN40-600 |
| CLASS | PN10/16 CL125/150 |
| DESIGN | BS5153.MSSSP-71 |
| FACE TO FACE | BS5153.ASME B16.10.DIN F6 |
| END FLANGE | EN1092-2,ASME 016.1/16.42.AS4087 |
| TESTS | EN12266 |
Product Description

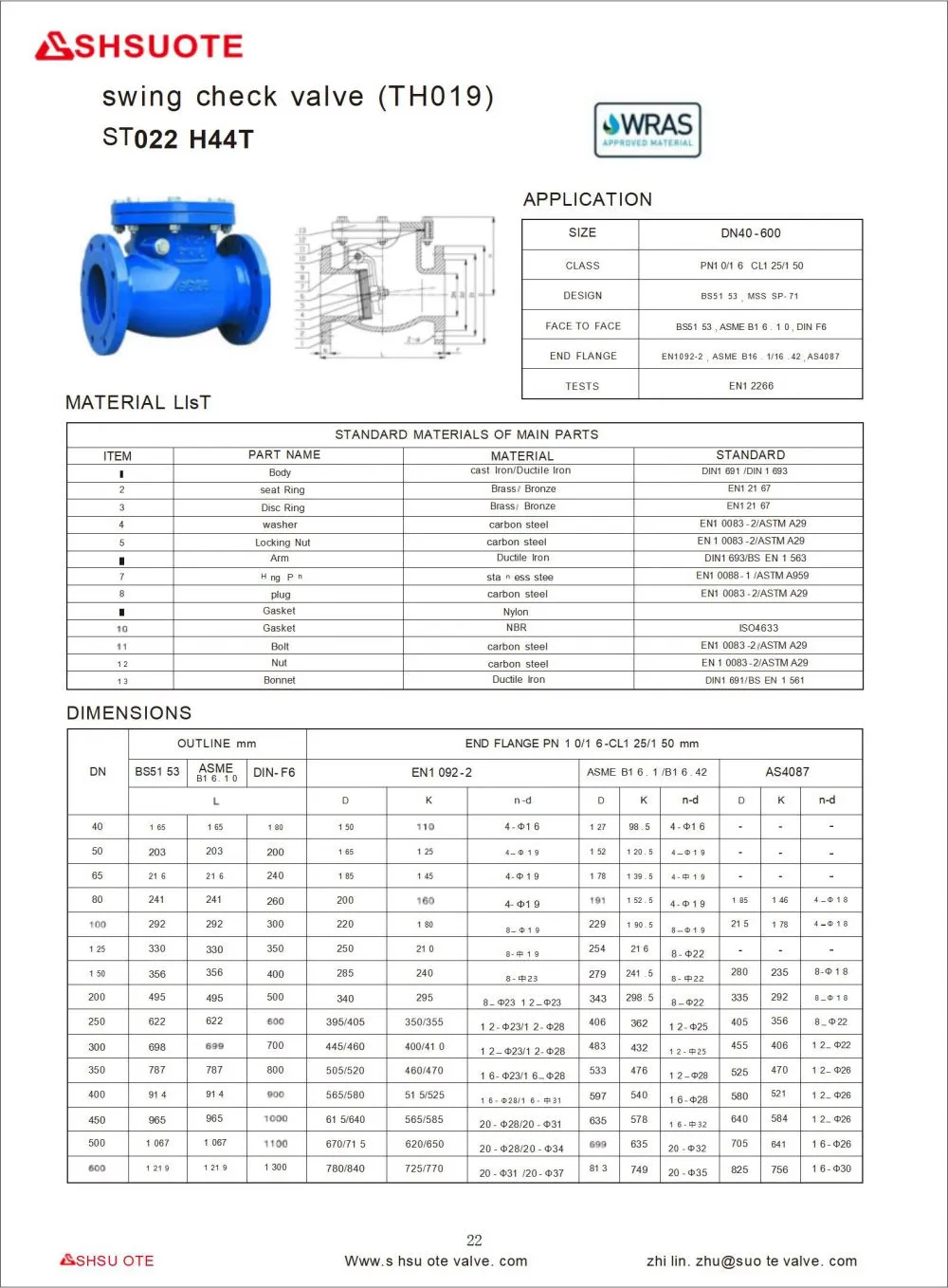

Swing Check Valve
APPLICATION
| SIZE | DN40-600 |
| CLASS | PN10/16 CL125/150 |
| DESIGN | BS5153.MSSSP-71 |
| FACE TO FACE | BS5153.ASME B16.10.DIN F6 |
| END FLANGE | EN1092-2,ASME 016.1/16.42.AS4087 |
| TESTS | EN12266 |
MATERIAL LIST
STANDARD MATERIALS OF MAIN PARTS
| ITEM | PART NAME | MATERIAL | STANDARD |
| 1 | Body | Cast Iron/Ductile Iron | DIN1691/DIN1693 |
| 2 | Seat Ring | Brass/ Bronze | EN12167 |
| 3 | Disc Ring | Brass/ Bronze | EN12167 |
| 4 | Washer | Carbon Steel | EN10083-2/ASTM A29 |
| 5 | Locking Nut | Carbon Steel | EN10083-2/ASTM A29 |
| 6 | Arm | Ductile Iron | DIN1693/BSEN 1563 |
| 7 | Hing Pin | Stainless Steel | EN10088-1/ASTM A959 |
| 8 | Plug | Carbon Steel | EN10083-2/ASTM A29 |
| 9 | Gasket | Nylon | |
| 10 | Gasket | NBR | ISO4633 |
| 11 | Bolt | Carbon Steel | EN10083-2/ASTM A29 |
| 12 | Nut | Carban Steel | EN10083-2/ASTM A29 |
| 13 | Bonnet | Ductile Iron | DIN1691/BSEN 1561 |
