Home > Industrial Equipment & Components > Valve > Ball Valve > API Z41H/T 150LB CF8M CF3M WCB Cast Steel Stainless Steel Hard Seal Flange ANSI Gate Valve Supplier Price

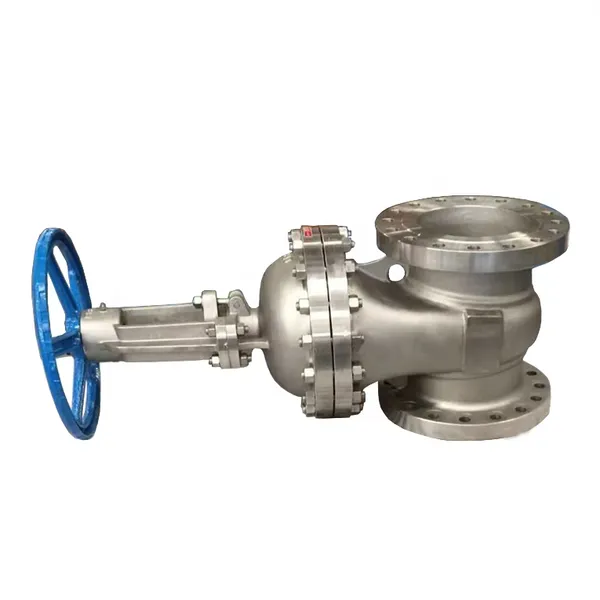

API Z41H/T 150LB CF8M CF3M WCB Cast Steel Stainless Steel Hard Seal Flange ANSI Gate Valve Supplier Price
US$ 1518.29
1 - 49 Piece
US$ 690.13
50 - 99 Piece
US$ 552.11
100 - 199 Piece
US$ 207.04
≥200 Piece
Key Specifications
Get Latest Price
Type:
Gate Valves
application:
General
media:
Water
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIN 3352 F4 F5 DN100 4 Inch PN16 Metal Seated Flange End Non Rising Stem Cast/Ductile Iron Wedge Gate ValveUS$ 345.07 - 1380.26MOQ: 1 Unit -
DIN/BS PN16 DN40-DN800 Cast/Ductile Iron GGG50 Rubber/Metal Seated Non Rising Stem Gate ValveUS$ 690.13 - 1380.26MOQ: 1 Unit
-
ANSI Class 300 Psi 8 Inch Flange A216 WCB Carbon Cast Steel Gate Valve Resilient Seat Non-Rising Stem Gate ValveUS$ 414.08 - 1242.24MOQ: 1 Piece
-
DN100 Ductile Iron Ggg50 Rubber Wedge Resilient Seat Gear Operated PN16 DIN Standard Gate Valve Sluice ValveUS$ 345.07 - 1380.26MOQ: 1 Unit
-
ANSI 150# 6in 8in WCB Flange Gate Valve A216 Non-Rising Stem Stainless Cast Steel Gate Valve Manufacturer PriceUS$ 414.08 - 724.64MOQ: 1 Piece
application
General
media
Water
port size
2'' - 12''
power
Manual
structure
Gate
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
model number
Z41H/T - 150LB/300LB/600LB
brand name
CHX
place of origin
Hebei, China
customized support
OEM, ODM
warranty
1 year
Body material
Wcb/Stainless Steel/SS304/SS316
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Connection type
Flange,Thread,Grooved
Color
Blue, Red, Green, Black, Silver, Grey
Medium
Water Oil Gas Steam
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
MOQ
1 pc
Usage
Industrial Usage
Certification
ISO,EAC,WRAS,CE
Specification
ANSI API6d 150# 300# 600# Wcb Gate Valve main material of parts | ||
Body,Bonnet | ASTM A216 WCB/ASTM A351 CF8/ASTM A351CF8M | |
Stem | ASTM A76 420/ASTM A182 F304/ASTM A182 F316 | |
Stem Nut | Brass | |
Disc | ASTM A216 WCB | |
Seat | 13Cr/STM A351 CF8/STM A351 CF8M | |
Hand wheel | ASTM A47 | |
Gasket | Graphite | |
Packing | Graphite | |
ANSI API6d ASME Class 150LB 300LB 600LB Wcb Gate Valve Standard | ||
Design Standard | API600,API6D | |
Face to Face | ASME B16.34 | |
Flange Standard | ASME B16.10 | |
Testing Standard | API598 | |
Products Description
Company Profile
Chengxin Valve Co., Ltd., located in weijiazhuang Industrial Park, Longyao County, Hebei Province, is a professional company for manufacturing and selling valves and castings. The company was founded in 1993 and established as Longyao Chengxin Valve Co., Ltd. In 2005. After its establishment, due to the accurate market positioning, excellent quality and standardized internal management, the company has become a modern enterprise with considerable scale, and has a high reputation in the valve and casting industry in China.
The company always adheres to the concept of integrity management and always adheres to the road of development strategy. Up to now, the company covers an area of more than 70000 square meters, with more than 400 employees, including more than 30 engineering and technical personnel and senior management personnel, with an annual output of nearly 11000 tons of various valves.
The company has passed the ISO 9001: 2008, 14001: 2004 quality and environmental management system certification, and obtained the special equipment manufacturing license of the people's Republic of China. It is a member of China general machinery valve Association and has the right of import and export.
The company always adheres to the concept of integrity management and always adheres to the road of development strategy. Up to now, the company covers an area of more than 70000 square meters, with more than 400 employees, including more than 30 engineering and technical personnel and senior management personnel, with an annual output of nearly 11000 tons of various valves.
The company has passed the ISO 9001: 2008, 14001: 2004 quality and environmental management system certification, and obtained the special equipment manufacturing license of the people's Republic of China. It is a member of China general machinery valve Association and has the right of import and export.
Production Process
Related Product
Certifications
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
