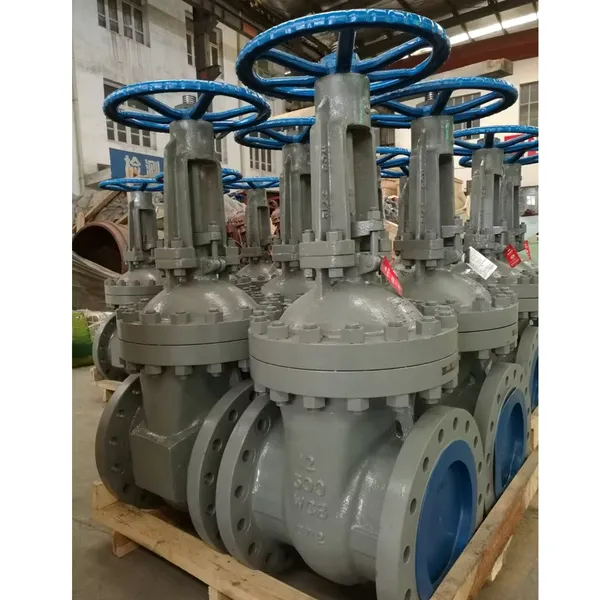

ANSI Class 300 Psi 8 Inch Flange A216 WCB Carbon Cast Steel Gate Valve Resilient Seat Non-Rising Stem Gate Valve
US$ 1242.24
1 - 49 Piece
US$ 690.13
50 - 99 Piece
US$ 414.08
≥100 Piece
Key Specifications
Get Latest Price
Type:
Gate Valves
application:
General
media:
Water
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DN100 Ductile Iron Ggg50 Rubber Wedge Resilient Seat Gear Operated PN16 DIN Standard Gate Valve Sluice ValveUS$ 345.07 - 1380.26MOQ: 1 Unit -
ANSI 150# 6in 8in WCB Flange Gate Valve A216 Non-Rising Stem Stainless Cast Steel Gate Valve Manufacturer PriceUS$ 414.08 - 724.64MOQ: 1 Piece
-
DIN 3352 F4 PN16 Double Flanged Square Head Underground Water Cast Iron Gate Valve Cast Steel Globe ValveUS$ 1932.37 - 2070.39MOQ: 1 Unit
-
Factory Supply ANSI Cast Steel Gate Valve Class150/300LB/600LB 4in 12in API A216 Flange WCB Gate Valve PriceUS$ 345.07 - 683.23MOQ: 1 Piece
-
ANSI WCB Gate Valve 300lb 600lb API A216 Cast Steel Wedge Gate Valve Stainless Steel Hard Seal Gate ValveUS$ 345.07 - 862.67MOQ: 1 Piece
application
General
media
Water
port size
DN50-DN600
power
Manual/ Electric
structure
Gate
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
model number
Z41H-150LB
brand name
CHX
place of origin
Hebei, China
customized support
OEM, ODM
warranty
1 year
Body material
Wcb/Stainless Steel/SS304/SS316
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Connection type
Flange,Thread,Grooved
Color
Blue, Red, Green, Black, Silver, Grey
Medium
Water Oil Gas Steam
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Usage
Industrial Usage
Certification
ISO,EAC,WRAS,CE
MOQ
1 pc
Specification
ANSI API6d 150# 300# 600# Wcb Gate Valve main material of parts |
||
Body,Bonnet |
ASTM A216 WCB/ASTM A351 CF8/ASTM A351CF8M |
|
Stem |
ASTM A76 420/ASTM A182 F304/ASTM A182 F316 |
|
Stem Nut |
Brass |
|
Disc |
ASTM A216 WCB |
|
Seat |
13Cr/STM A351 CF8/STM A351 CF8M |
|
Hand wheel |
ASTM A47 |
|
Gasket |
Graphite |
|
Packing |
Graphite |
|
ANSI API6d ASME Class 150LB 300LB 600LB Wcb Gate Valve Standard |
||
Design Standard |
API600,API6D |
|
Face to Face |
ASME B16.34 |
|
Flange Standard |
ASME B16.10 |
|
Testing Standard |
API598 |
|
Products Description
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings. It is located in Weizhuang industrial zone, which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering, technical staff and senior management of more than 60 pesons.The annual out put is over 20000 tons.
Both national and international standard products are produced. The national standard has 12 series, more than 3000
specifications. The products covers gate valve, globe valve,check valve, ball valve, butterfly valve, strainer, balancing vlave, etc. The international standard include DIN, Russian standard, BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru, Russia, Pakistan, Korea, Vietnam, Indonesia and so on.
specifications. The products covers gate valve, globe valve,check valve, ball valve, butterfly valve, strainer, balancing vlave, etc. The international standard include DIN, Russian standard, BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru, Russia, Pakistan, Korea, Vietnam, Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality. Currently the modern physical and chemical laboratories has been built. The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Production Process
Certifications
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Related Product
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
