Product Description

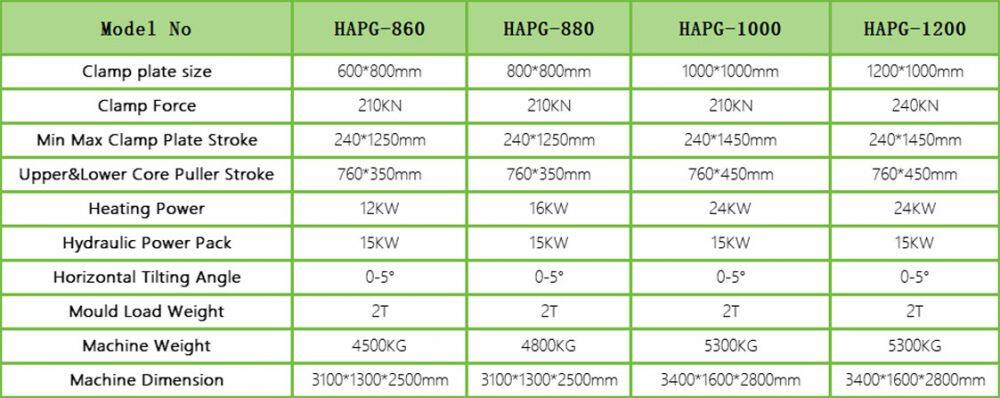

APG Machine - High Efficiency for Simple Designs (800×800mm Clamp Plate)
Boost production efficiency with our advanced dual-workstation APG (Automatic Pressure Gelation) machine, engineered to run two molds simultaneously on a single system. Ideal for manufacturing straightforward epoxy products like insulators, bushings, and sensors, this machine combines precision, safety, and space-saving design to streamline your workflow.
Our engineers have over 30 years of technical experience and are highly renowned in the industry.
FAQ
Q: What machines are included in a complete set of APG Clamping System?

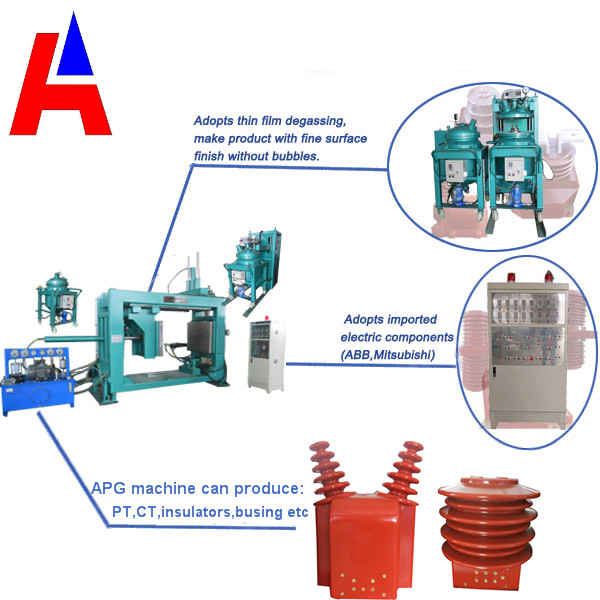

A: A complete APG Clamping System consists of: the APG main unit, a control box, a hydraulic station, a thin-film degassing mixing station, a mixing pot, and resin casting molds.
Q: What is the APG machine used for?
A: It is used to produce electrical epoxy resin products, such as low- and medium-voltage transformers, insulators, bushings, and switchgear components.The hydraulic epoxy resin encapsulation technology not only enhances the insulation reliability and service life of electrical equipment, but also makes it more robust, moisture-resistant, and easier for mass production.
Q: How many years can a set of APG equipment last?
A: It depends on whether it is properly maintained. Generally, it can last over 15 years.
We offer overseas on-site technical training:
1. Offer epoxy resin production line consulting service.
2. Supply High quality APG machine, mixing device, APG&casting Mold, CT/PT winding machine.
3. Produce qualified samples with APG machine and molds before dispatch, guarantee APG machine and molds are in good condition.
4. One-site training APG technique till you control produce products by yourself.
Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product dates.
4. Fully automatic design
- Auto start machine & heating clamp plate.
- Auto setting hydraulic pressure
- Auto setting heating temperature
- Auto setting valve flow
